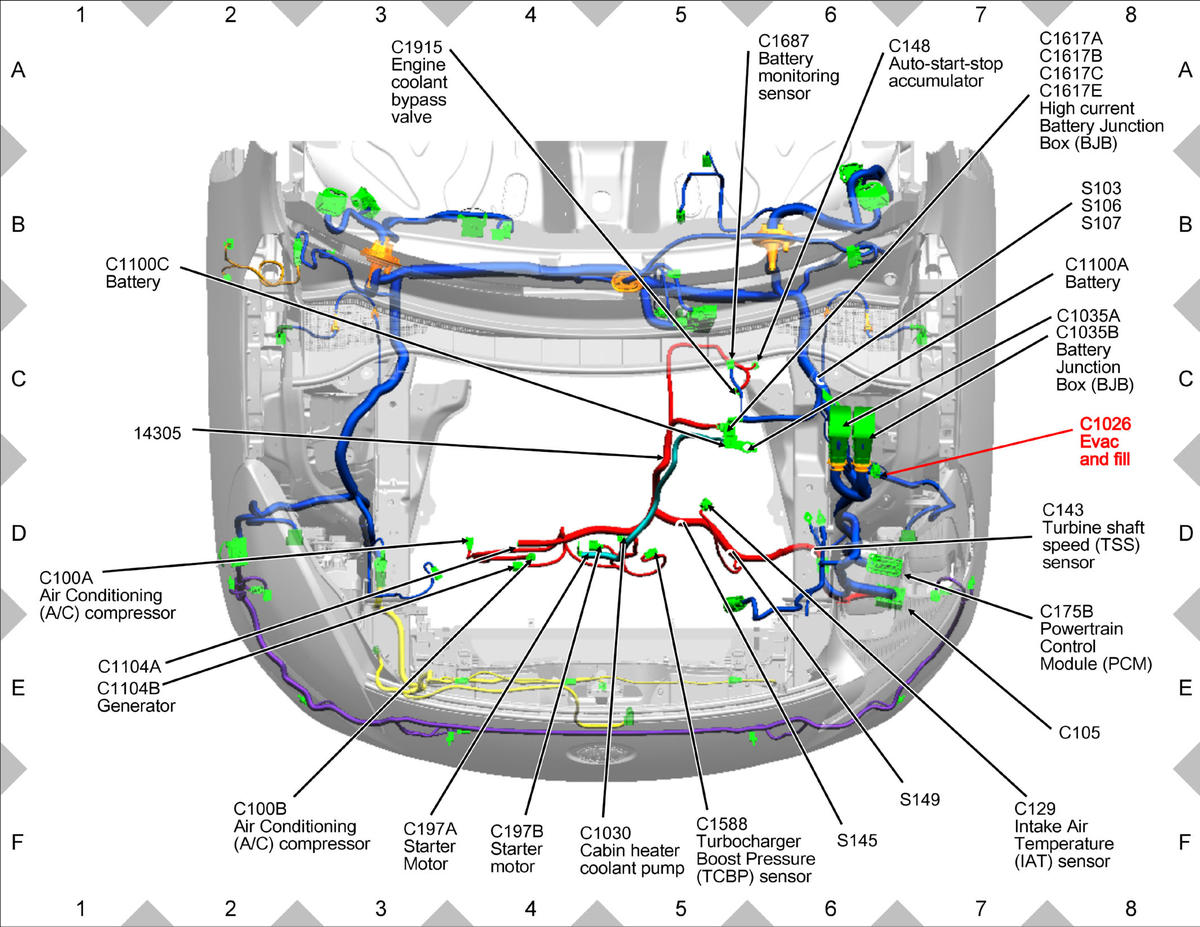

High Current Battery Junction Box (BJB) Engine Compartment Left Side (1 of 3)

GFDWR89871Courtesy of FORD MOTOR COMPANY
