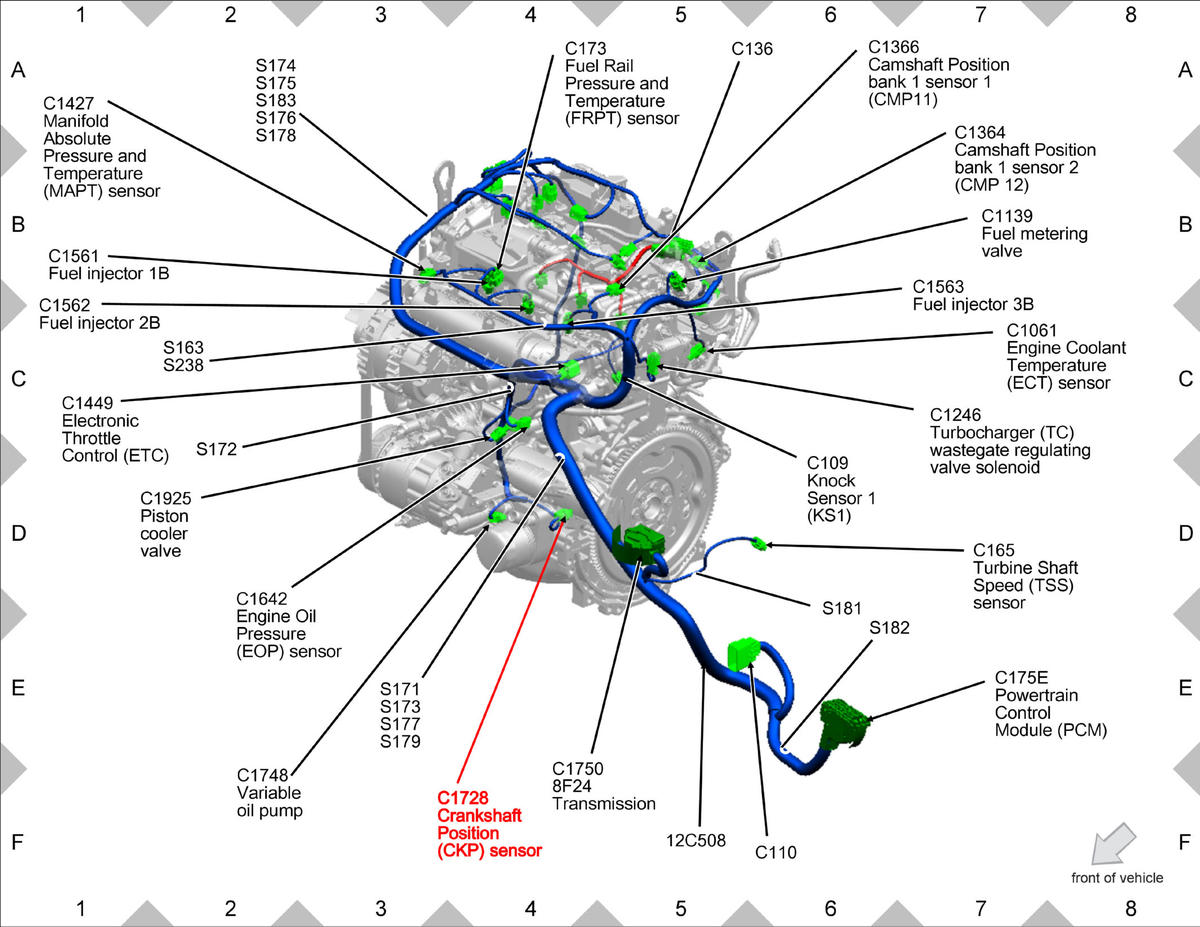

Crankshaft Position (CKP) Sensor (1.5L)
Crankshaft Position (CKP) Sensor (1.5L)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
