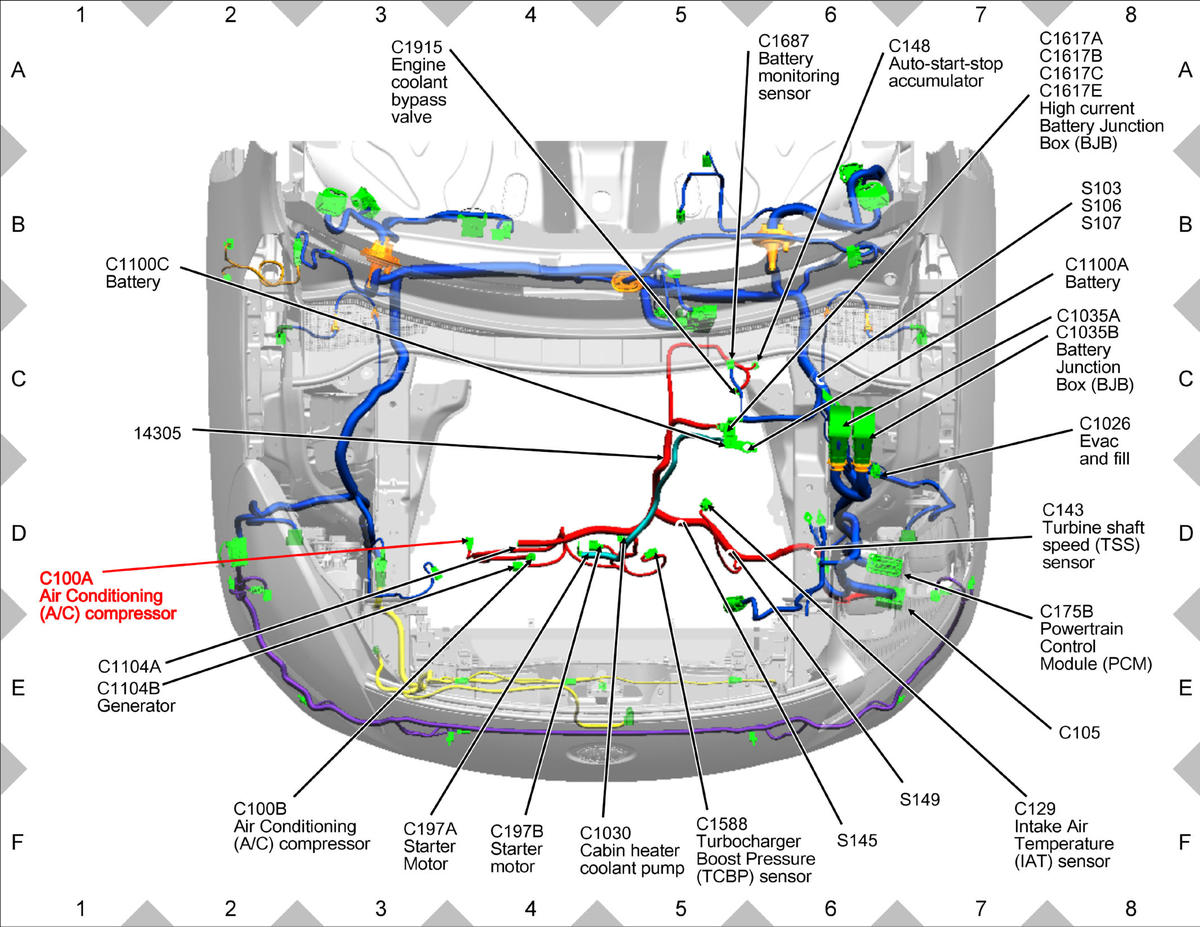

Air Conditioning (A/C) Compressor Engine Compartment Right Front (2 of 3)
Air Conditioning (A/C) Compressor Engine Compartment Right Front (2 of 3)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
