Instrument Panel Cluster (IPC) Lens: Removal

  1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .

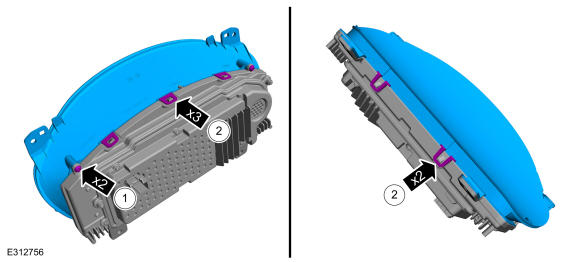

    1. Remove the screws.
    2. Release the clips and remove the IPC lens.
GFD476921Courtesy of FORD MOTOR COMPANY
