System Diagram - Indicators and RTT Indicators

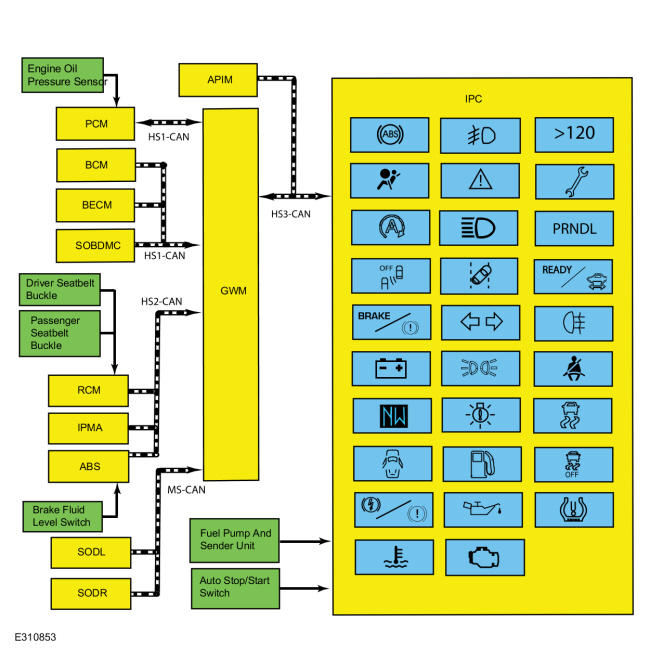

Indicators

GFD476907Courtesy of FORD MOTOR COMPANY

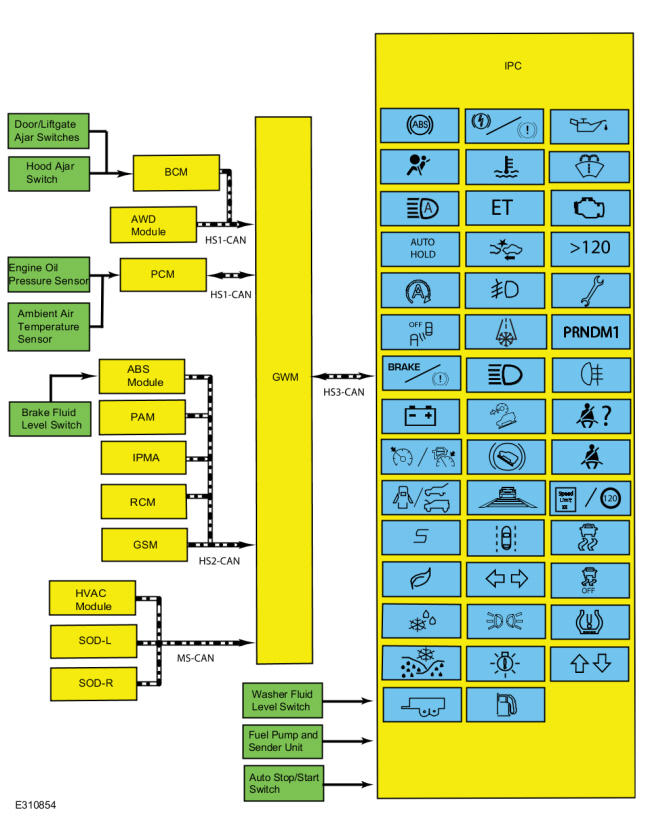

RTT Indicators

GFD476908Courtesy of FORD MOTOR COMPANY

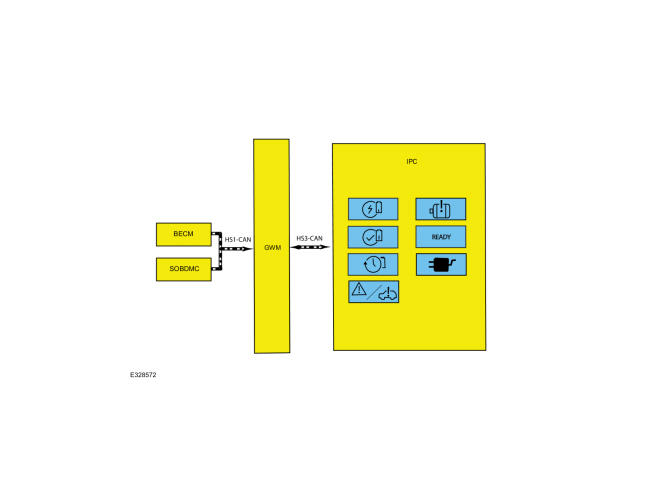

RTT Indicators, Hybrid Only

GFD476909Courtesy of FORD MOTOR COMPANY
