Battery Tray - 1.5L EcoBoost (132kW/180PS) - I3/2.0L EcoBoost (177kW/240PS) - MI4: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the battery. Refer to: Battery .

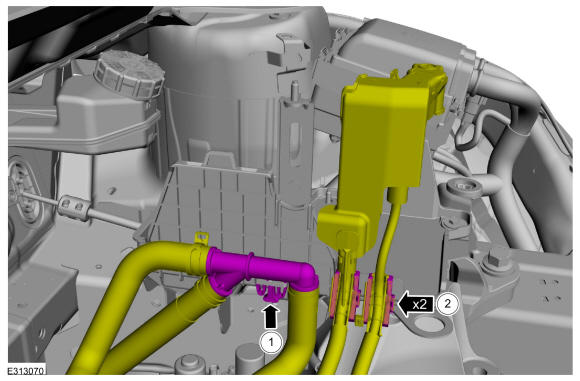

2. 1. 1.5L Ecoboost vehicles only Release the retainer and position the heater hoses aside.
   2. Detach the wire harness retainers from the battery tray.

   Courtesy of FORD MOTOR COMPANY

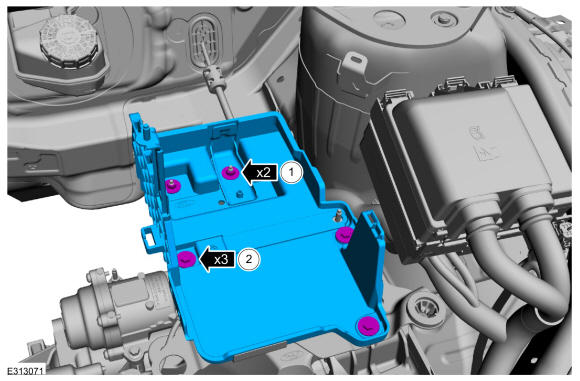

3. 1. Remove the battery tray nuts.

      Torque: 93 lb.in (10.5 Nm)

   2. Remove the bolts and the battery tray.

      Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
