Battery Cables - 2.5L Duratec - Hybrid (121kW/164PS) (BG): Removal

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

Refer to: Jacking and Lifting - Overview .
Refer to: Battery Disconnect and Connect .

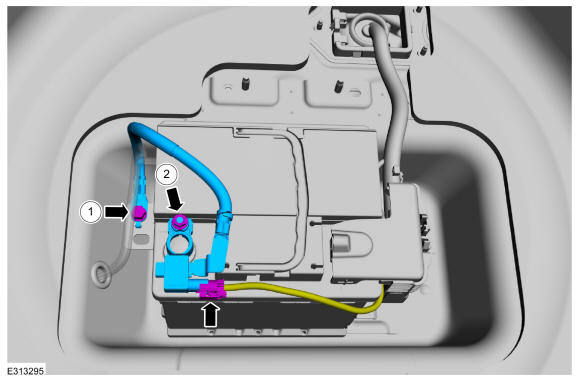

1. Torque
  : 26 lb.ft (35 Nm)
2. Torque
  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

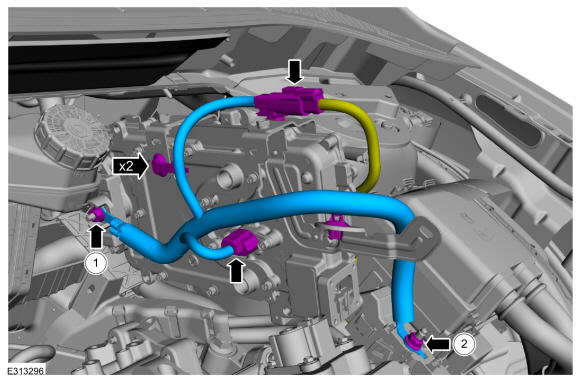

1. Torque
  : 159 lb.in (18 Nm)
2. Torque
  : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
