Brake System Draining and Filling - Vehicles With: Vacuum Brake Booster

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Draining

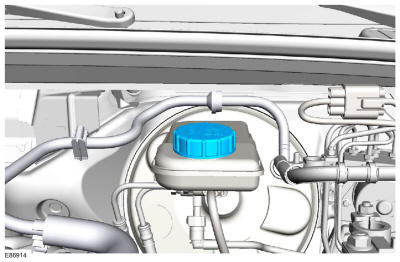

1. Courtesy of FORD MOTOR COMPANY

2. Refer to: Jacking and Lifting - Overview .

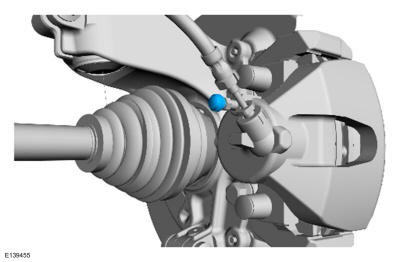

3. On both sides.

   Courtesy of FORD MOTOR COMPANY

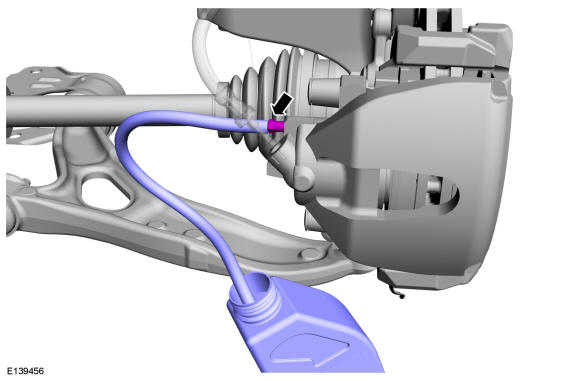

4. On both sides. Use the General Equipment: Fluid Container

   Courtesy of FORD MOTOR COMPANY

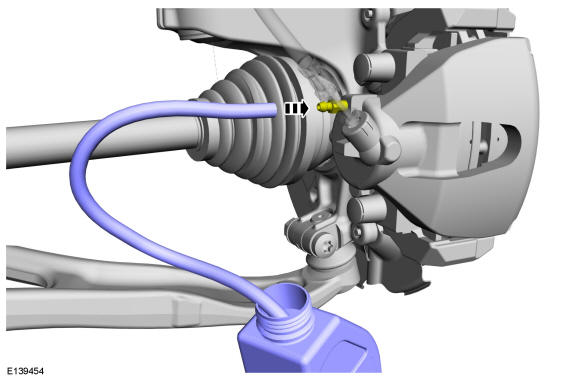

5. On both sides. Loosen: 180°

   Courtesy of FORD MOTOR COMPANY

6. Courtesy of FORD MOTOR COMPANY

7. On both sides.

   Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

Filling

1. Refer to: Brake System Pressure Bleeding - Vehicles With: Electric Brake Booster . Refer to: Component Bleeding - Vehicles With: Vacuum Brake Booster .
