Rear Seat Cushion Cover: Removal

NOTE: LH (left hand) shown, RH (right hand) similar.

Remove the rear seat. Refer to: Rear Seat .

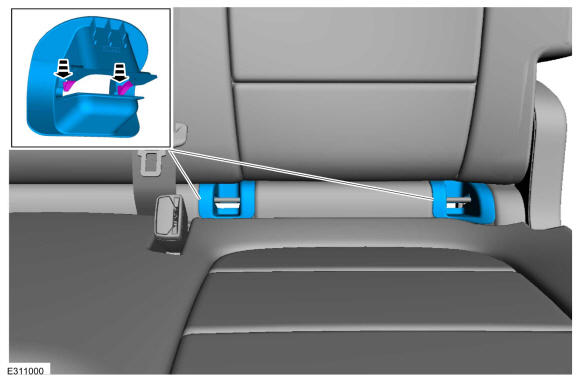

Release the retaining tabs and remove the lower child safety seat tether anchor bezels.

Courtesy of FORD MOTOR COMPANY

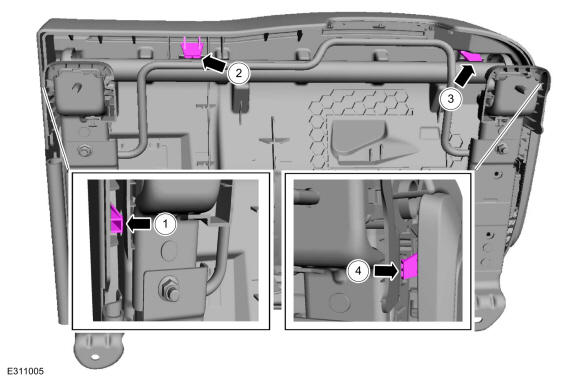

Release the rear seat cushion substrate to rear seat frame retainers in the order shown.
1. Release the inboard side retainer from the frame.
2. Release the inboard side front retainer from the frame.
3. Release the outboard side front retainer from the frame.
4. Release the outboard side retainer from the frame.
Courtesy of FORD MOTOR COMPANY

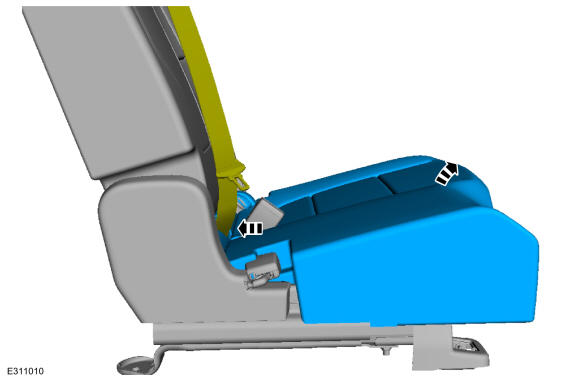

Remove the rear seat cushion and substrate.
- Route the rear center seatbelt through the opening in the rear seat cushion and substrate.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

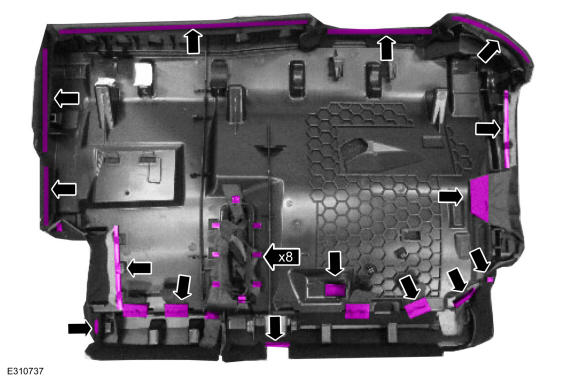

Release the rear seat cushion cover retainers from the rear seat cushion substrate.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

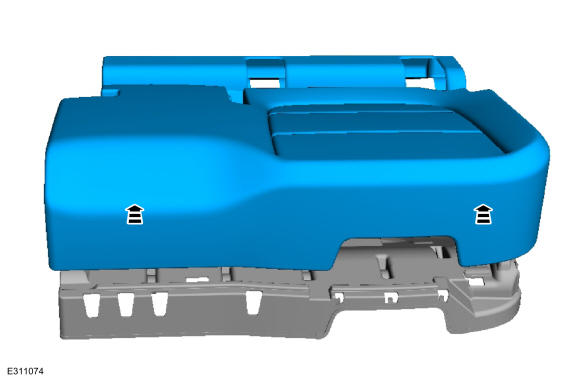

Remove the rear seat cushion cover and foam as an assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam.

NOTE: This step is only necessary when installing a new component.

NOTE: Follow the unique instructions or graphics for this step in installation.

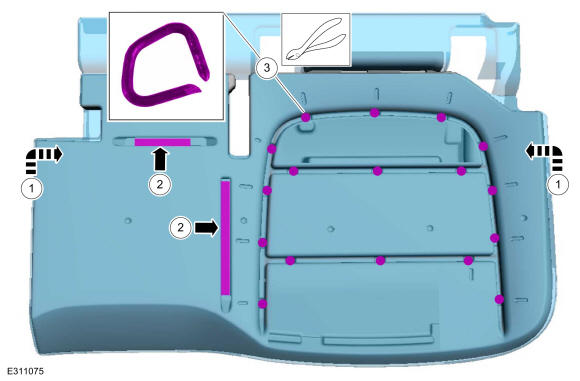

Remove the rear seat cushion cover.
1. Invert the cover.
2. Release the hook-and-loop strips.
3. Remove the hog rings. Use the General Equipment: Hog Ring Plier

Courtesy of FORD MOTOR COMPANY
