Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel. Refer to: Instrument Panel .
Release the clips and remove the LH trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the display unit.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

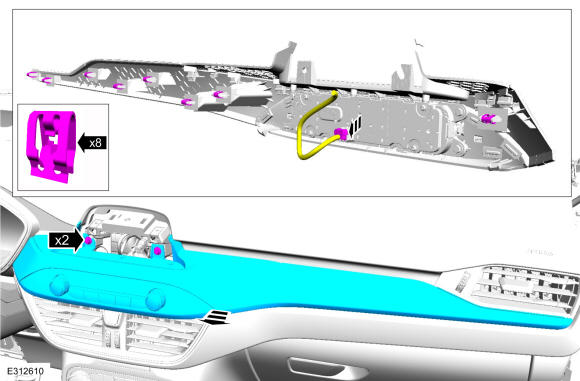

Remove the bolts, release the clips and remove the center instrument panel trim panel.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the center HVAC register.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
Release the clips and remove the lower finish panel.

Courtesy of FORD MOTOR COMPANY

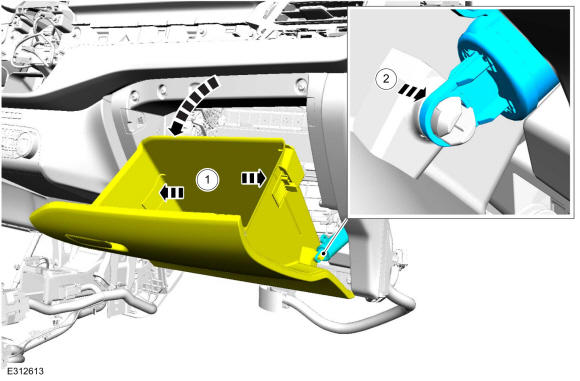

1. Release the stop and fully lower the glove compartment.
2. Remove the glove compartment check strap.
Courtesy of FORD MOTOR COMPANY

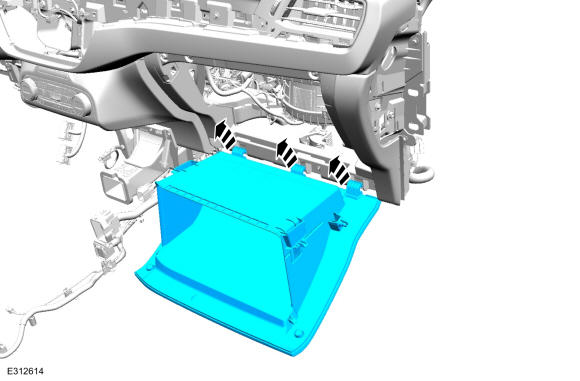

Lift the glove compartment off the hinges remove.

Courtesy of FORD MOTOR COMPANY
Remove the bolts, release the clips and remove the glove box close out.
Torque: 36 lb.in (4.1 Nm)

Courtesy of FORD MOTOR COMPANY

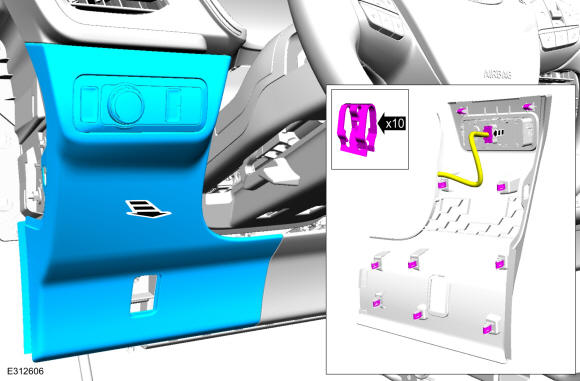

Remove the bolts, release the clips and remove the lower trim panel.
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

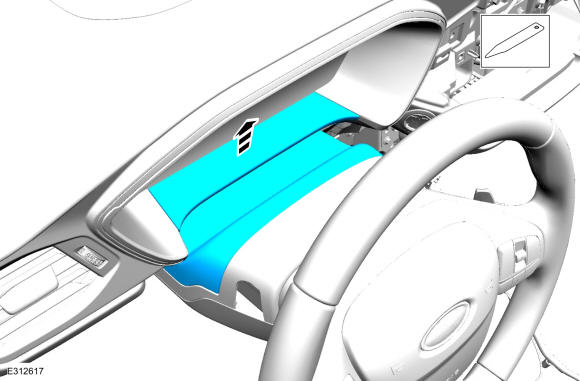

Remove the steering column gap hider.

Courtesy of FORD MOTOR COMPANY

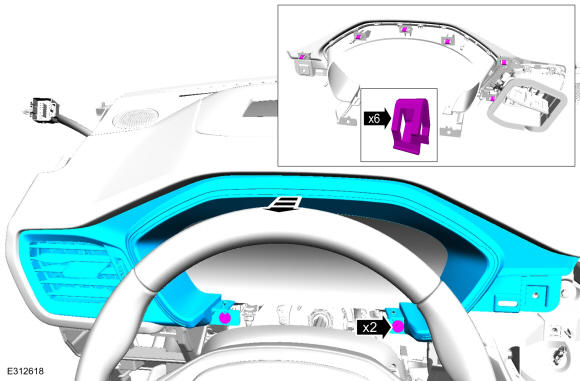

Remove the bolts, release the clips and remove the IPC trim bezel.
Torque: 33 lb.in (3.7 Nm)

Courtesy of FORD MOTOR COMPANY

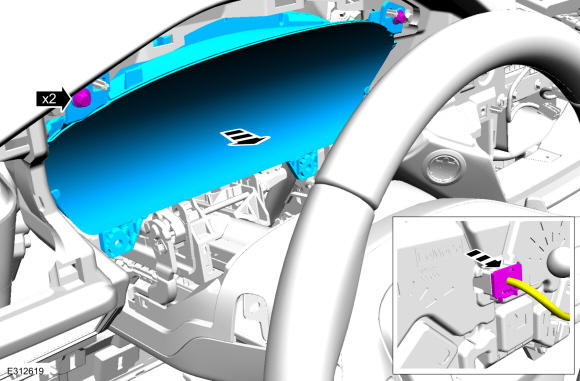

Remove the bolts, and the IPC.
- Disconnect the electrical connector.
  Torque: 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

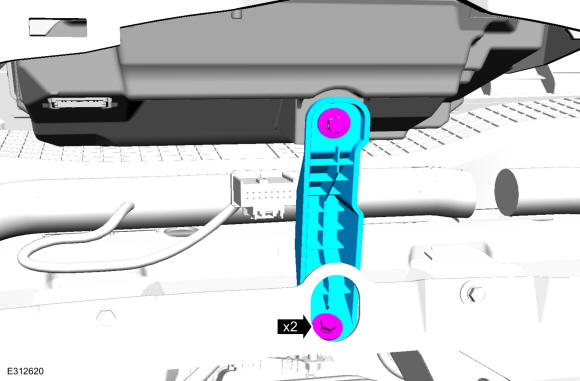

Remove the bolts and the brace.
Torque: 33 lb.in (3.7 Nm)

Courtesy of FORD MOTOR COMPANY

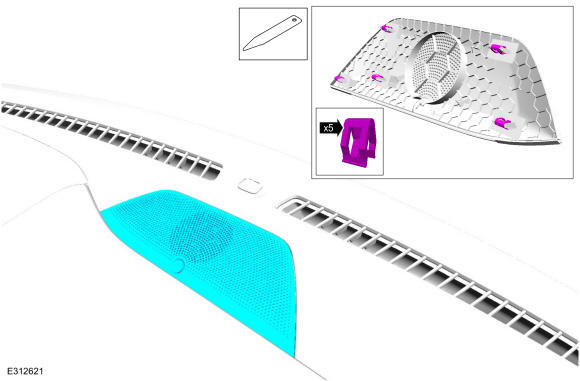

Release the clips and remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

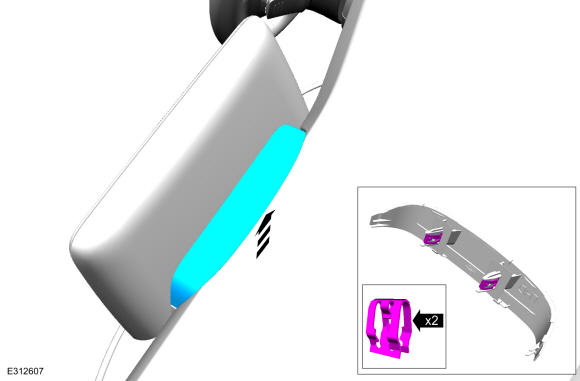

Release the clips and remove the HUD trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

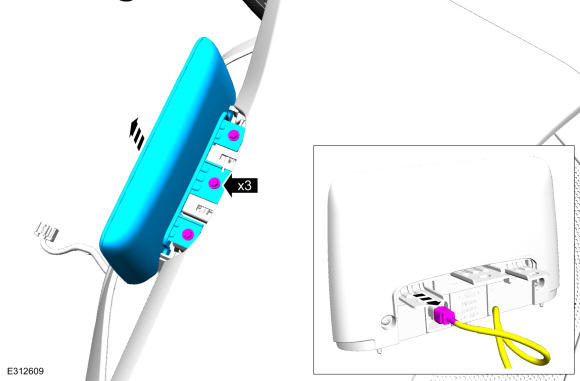

Remove the bolts and the HUD.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the bolt the RH register.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the lower steering column trim panel.
Torque: 17 lb.in (1.9 Nm)

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

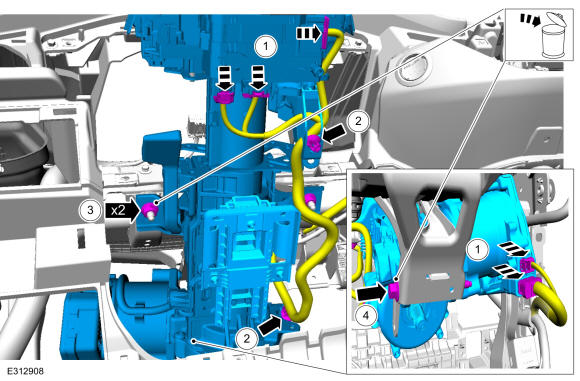

Remove the steering column.
- Disconnect the electrical connector's.
- Detach the harness pushpins.
- Remove and discard the steering column nuts.
  Torque: 18 lb.ft (25 Nm)
- Remove and discard the steering column bolt.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the screws and position the APIM down.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors and remove the APIM and bracket.

Courtesy of FORD MOTOR COMPANY

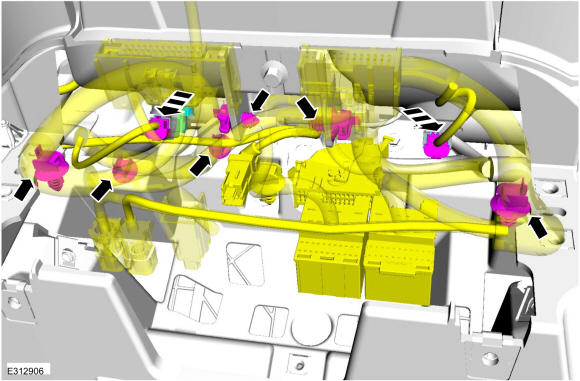

Disconnect the electrical connectors and detach the harness pushpins.

Courtesy of FORD MOTOR COMPANY

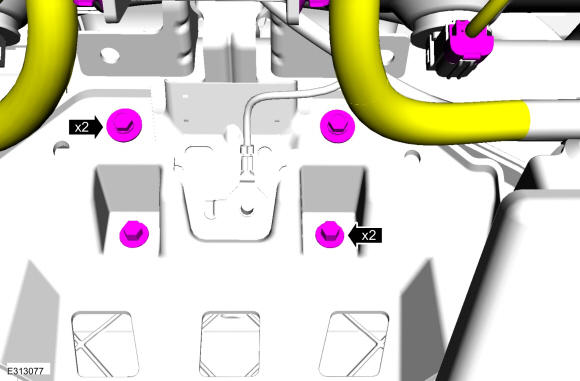

Remove the bolts.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the HVAC case bolts.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
1. Remove the bolts.
  Torque: 93 lb.in (10.5 Nm)
2. Remove the bolts.
  Torque: 71 lb.in (8 Nm)
3. Disconnect the electrical connector and detach the harness pushpin.
Courtesy of FORD MOTOR COMPANY

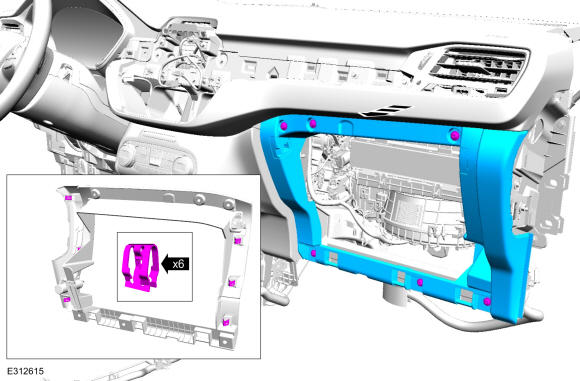

Remove the front instrument panel upper section bolts.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the electrical connectors.
2. Detach the harness retainers and position aside the electrical harness.

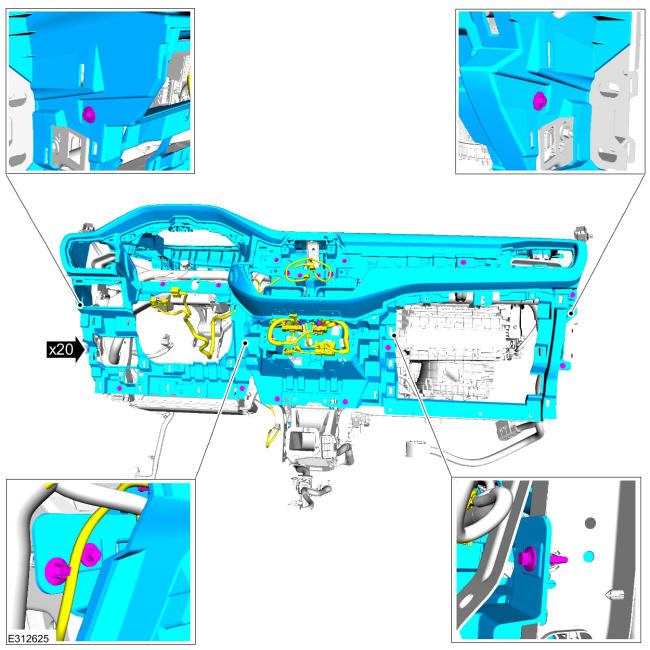

3. Remove the rear instrument panel upper section bolts.
Courtesy of FORD MOTOR COMPANY
NOTE: To avoid damaging the upper section, the aid of an assistant is required to carry out this step.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.

Remove the instrument panel upper section.

GFD477952
