Glove Compartment: Removal

  1. Open the glove compartment and remove the check strap.

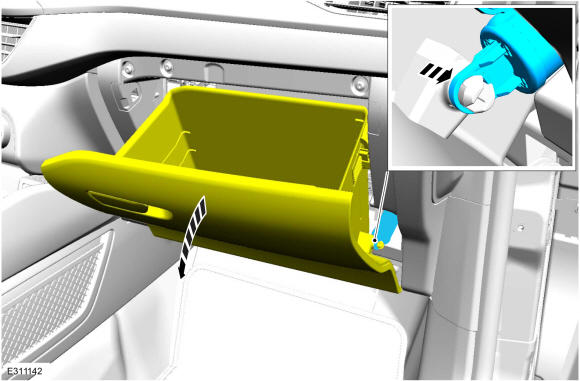

    GFD477897Courtesy of FORD MOTOR COMPANY
    1. Fully lower the glove compartment.
    2. Lift glove compartment off hinge pivot.

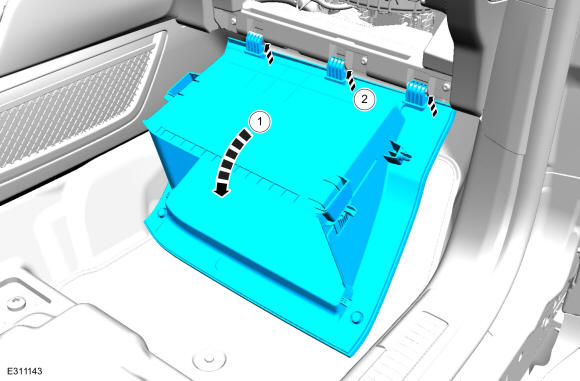

    GFD477898Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the glove compartment close out.

    Torque: 22 lb.in (2.5 Nm)

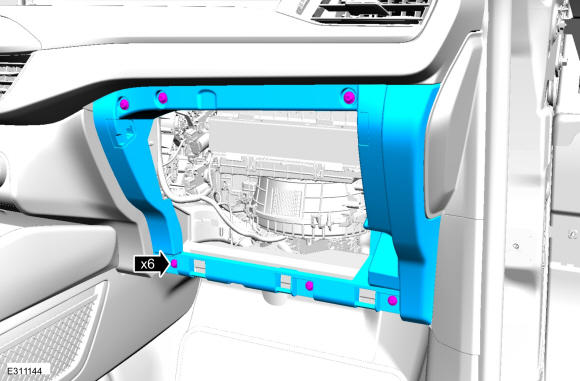

GFD477899Courtesy of FORD MOTOR COMPANY
