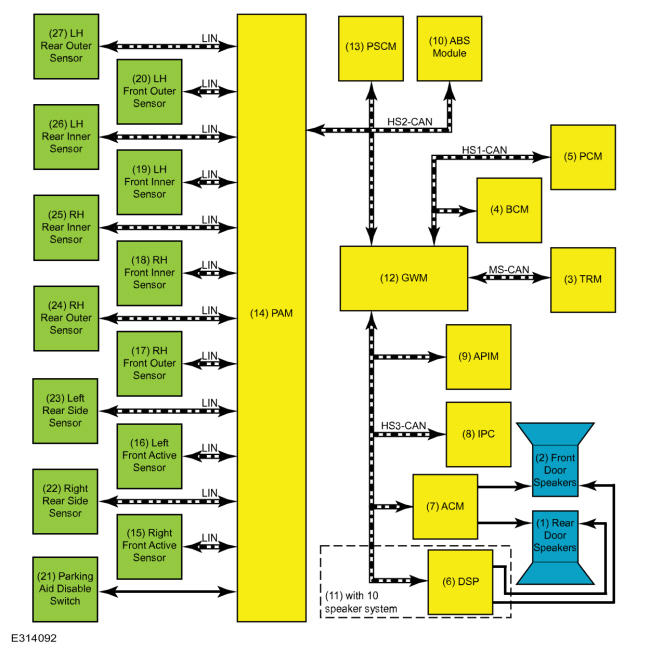

System Diagram
| Item | Description |
|---|---|
| 1 | Rear door speakers |
| 2 | Front door speakers |
| 3 | TRM |
| 4 | BCM |
| 5 | PCM |
| 6 | DSP |
| 7 | ACM |
| 8 | IPC |
| 9 | APIM |
| 10 | ABS module |
| 11 | with 10 speaker system |
| 12 | GWM |
| 13 | PSCM |
| 14 | PAM |
| 15 | Right front active sensor |
| 16 | Left front active sensor |
| 17 | RH front outer sensor |
| 18 | RH front inner sensor |
| 19 | LH front inner sensor |
| 20 | LH front outer sensor |
| 21 | Parking aid disable switch |
| 22 | Right rear side sensor |
| 23 | Left rear side sensor |
| 24 | RH rear outer sensor |
| 25 | RH rear inner sensor |
| 26 | LH rear inner sensor |
| 27 | LH rear outer sensor |
