Rear Parking Aid Camera: Removal
- Remove the liftgate lower interior trim panel. Refer to: Liftgate Trim Panel .

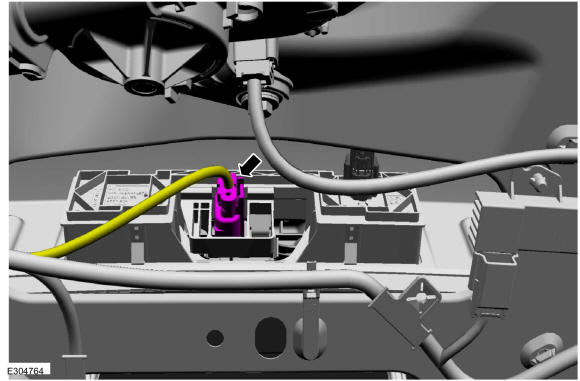

- Disconnect the electrical connectors.

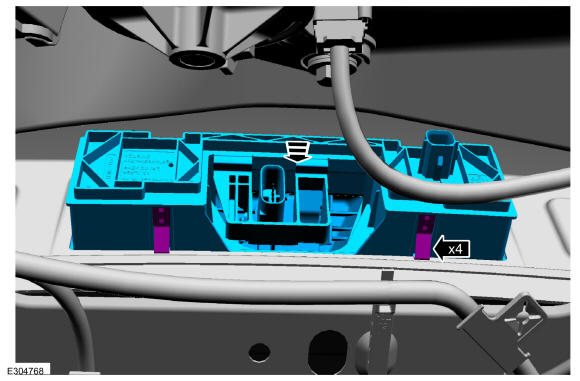

- Release the tabs and remove the liftgate handle assembly.

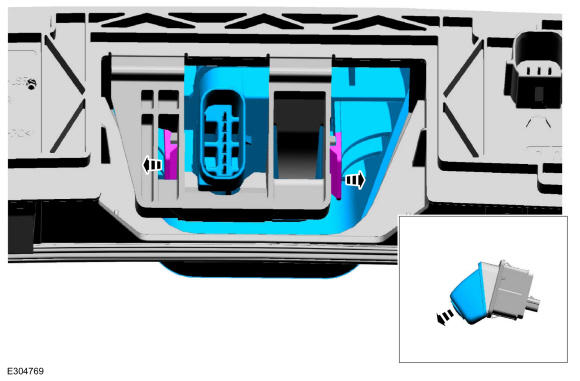

- Release the tabs and remove the rear view camera and housing as an assembly.

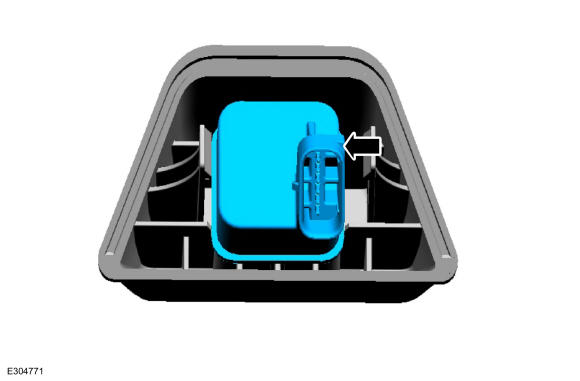

- Remove the rear view camera.
