Turbocharger - Component Location

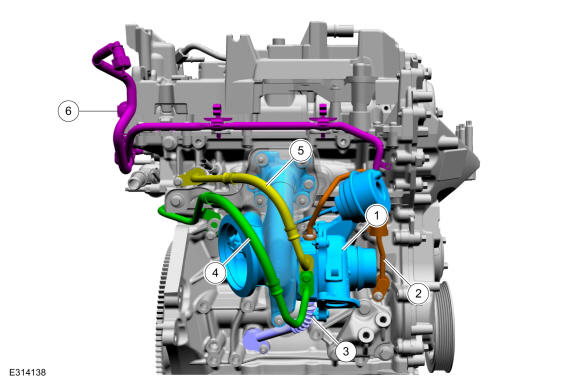

1.5L EcoBoost Turbocharger Components
| Item | Description |
|---|---|
| 1 | Turbocharger |
| 2 | Turbocharger oil supply tube |
| 3 | Turbocharger oil return tube |
| 4 | Turbocharger coolant supply tube |
| 5 | Turbocharger coolant return tube |
| 6 | Wastegate control valve solenoid |

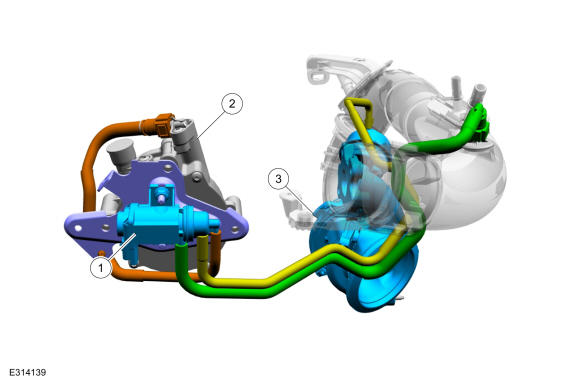

1.5L EcoBoost Turbocharger Control
| Item | Description |
|---|---|
| 1 | Wastegate control valve solenoid |
| 2 | Vacuum pump |
| 3 | Turbocharger |
