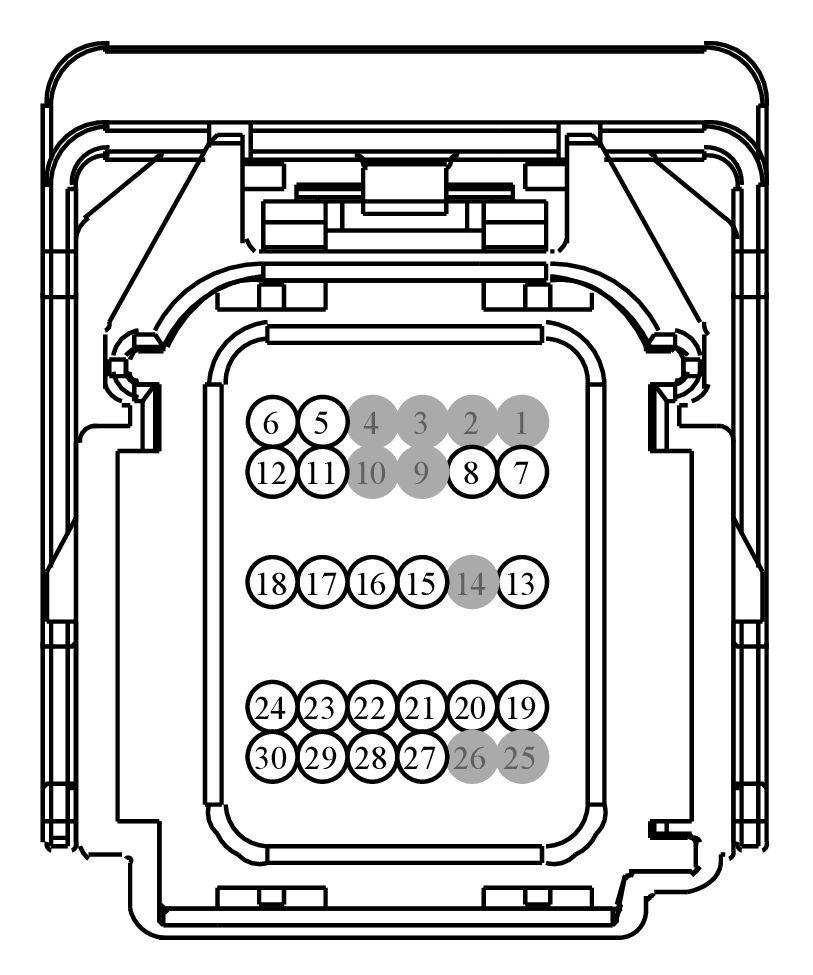

Connector End View C310A - RESTRAINTS CONTROL MODULE (RCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C310A	RESTRAINTS CONTROL MODULE (RCM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +	8U5T-14474-BB
6	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -	8U5T-14474-BB
7	CR144 (GY-OG)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +	8U5T-14474-BB
8	RR144 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -	8U5T-14474-BB
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CR176 (WH-BN)	20	CTRL MOD. - BELT LOAD LIMITER PASSENGER +	8U5T-14474-BB
12	RR176 (BN)	20	CTRL MOD. - BELT LOAD LIMITER PASSENGER -	8U5T-14474-BB
13	CR189 (BU-OG)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	8U5T-14474-BB
14	*	*	Not Used	N/A
15	VR214 (WH-BU)	22	SENSOR - IMPACT FRONT 2ND	8U5T-14474-BB
16	RR130 (GN-BU)	22	CTRL MOD. - SENSOR IMPACT FRONT 2ND	8U5T-14474-BB
17	RR129 (YE-GY)	22	CTRL MOD. - SENSOR IMPACT FRONT 1ST -	8U5T-14474-BB
18	VR213 (VT-GN)	22	SENSOR - IMPACT FRONT 1ST	8U5T-14474-BB
19	CR194 (VT-WH)	22	CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER	8U5T-14474-BB
20	CR190 (GY-BN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF	8U5T-14474-BB
21	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -	8U5T-14474-BB
22	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +	8U5T-14474-BB
23	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +	8U5T-14474-BB
24	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -	8U5T-14474-BB
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -	8U5T-14474-BB
28	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +	8U5T-14474-BB
29	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	8U5T-14474-BB
30	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	8U5T-14474-BB
