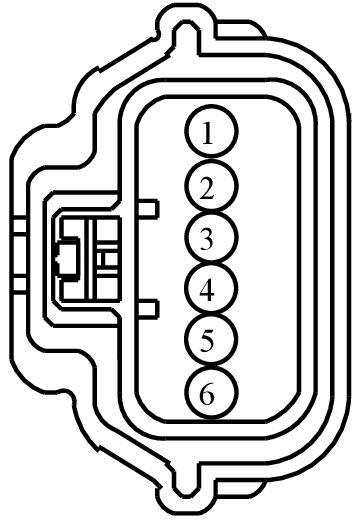

Connector End View C3159 - OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3159 | OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM) | 14D230 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBP22 (GN-OG) | 20 | FUSE - 22 OR CIRCUIT BREAKER | N/A | ||||
| 1 | CR195 (YE-BU) | 20 | CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER | N/A | ||||
| 2 | VDB25 (GN-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | N/A | ||||
| 3 | VDB26 (GY-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | N/A | ||||
| 4 | RR172 (GN-VT) | 20 | CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES | N/A | ||||
| 4 | RR172 (BK) | 20 | CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES | N/A | ||||
| 5 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + | N/A | ||||
| 6 | VR210 (BU-BN) | 20 | SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1554
Service Part Number:
9U2Z-14S411-BC
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Actuator - Door Lock - LH - Front
- Actuator - Door Lock - LH - Rear
- Actuator - Door Lock - RH - Front
- Actuator - Door Lock - RH - Rear
- Connector - Inline
- Module - Occupant Classification
- Sensor - Acceleration Pedal Position
- Sensor - Gear Neutral
- Sensor - Occupant Classification
- Sensor - Seat Track Position
- Sensor - Transmission Range
- Switch - Door Ajar / Interior Lamp
