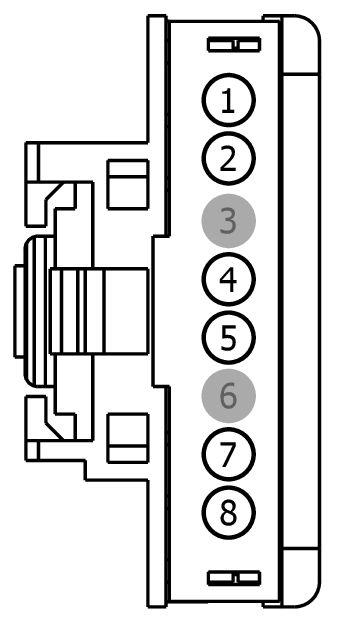

Connector End View C256 - PASSENGER AIRBAG
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C256 | PASSENGER AIRBAG | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 7S4T-14474-AB | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR103 (GY-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 + | 7S4T-14474-AB | ||||
| 2 | RR103 (VT-GN) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 - | 7S4T-14474-AB | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | CR104 (YE-GY) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 + | 7S4T-14474-AB | ||||
| 5 | RR104 (WH-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 2 - | 7S4T-14474-AB | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | CR144 (GY-OG) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING + | 7S4T-14474-AB | ||||
| 8 | RR144 (VT-GN) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - | 7S4T-14474-AB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1397
Service Part Number:
DU2Z-14S411-DB
Gauge:
20
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Clockspring
- Module - Power Steering
