Brake Booster: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the battery tray. Refer to: Battery Tray - 1.5L EcoBoost (132kW/180PS) - I3/2.0L EcoBoost (177kW/240PS) - MI4 .

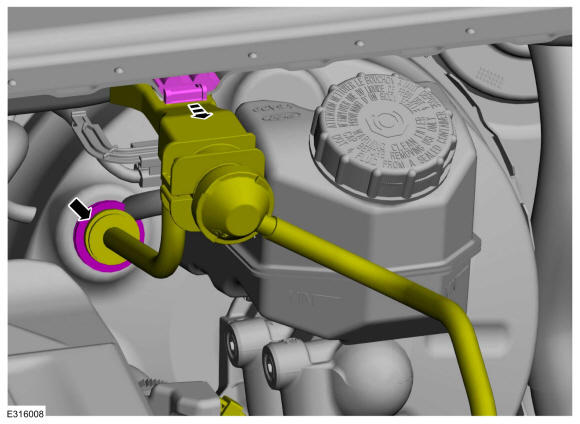

Detach the vacuum check valve from the booster and the cowl panel and position aside.

Courtesy of FORD MOTOR COMPANY

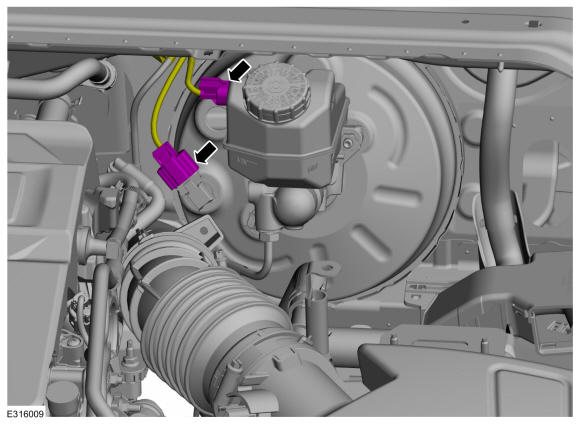

Disconnect the brake fluid level sensor and the brake vacuum sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

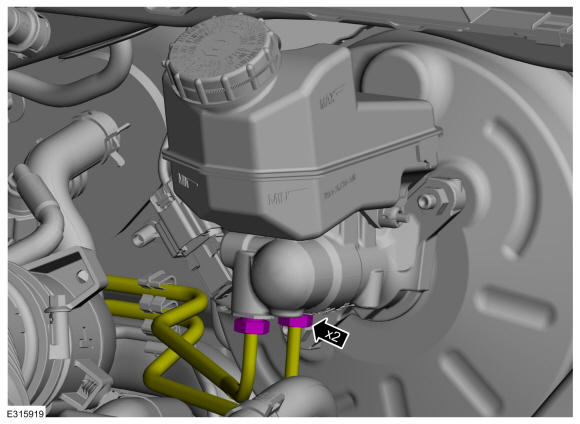

Disconnect the brake tube fittings.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

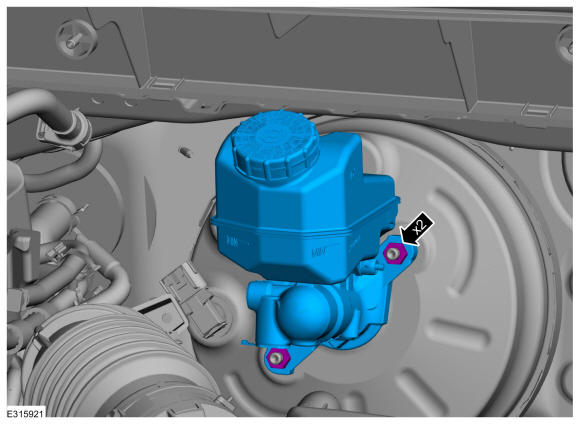

Remove the nuts and the brake master cylinder.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch .

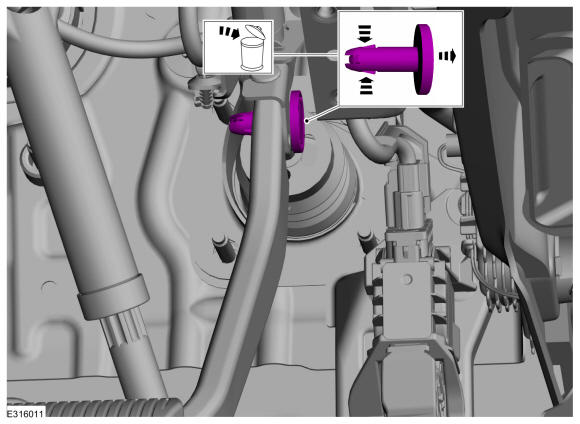

Remove and discard the booster push rod clevis-locking pin.

Courtesy of FORD MOTOR COMPANY

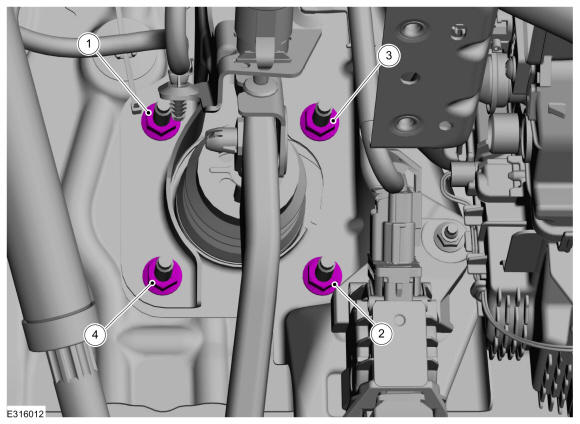

Remove the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

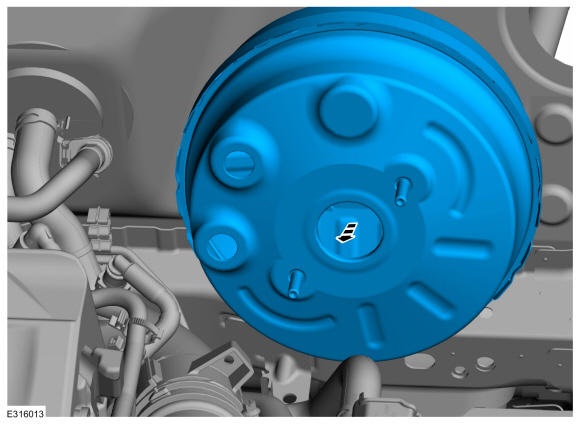

Remove the brake booster.

Courtesy of FORD MOTOR COMPANY
