Brake Master Cylinder - Vehicles With: Vacuum Brake Booster: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Remove the battery. Refer to: Battery .

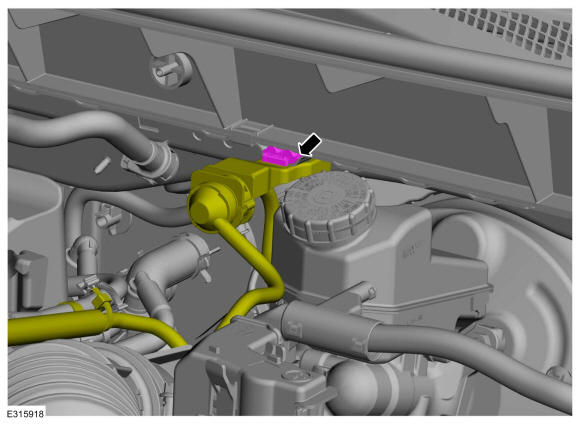

Detach the brake booster tube from dash panel and position aside.

Courtesy of FORD MOTOR COMPANY
Disconnect the brake tube fittings.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

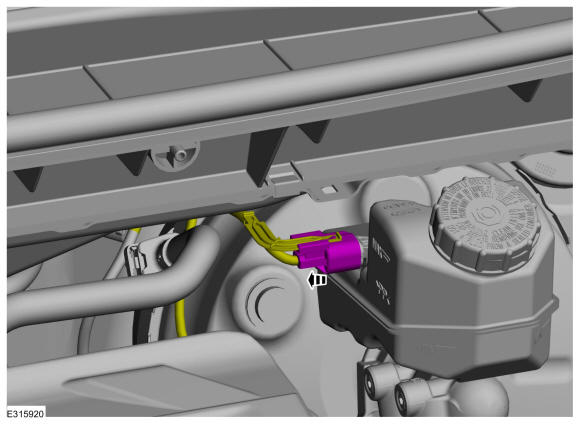

Disconnect the brake fluid level sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and the brake master cylinder.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
