Brake Fluid Reservoir - Vehicles With: Electric Brake Booster: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the HCU. Refer to: Electric Brake Booster (EBB) .

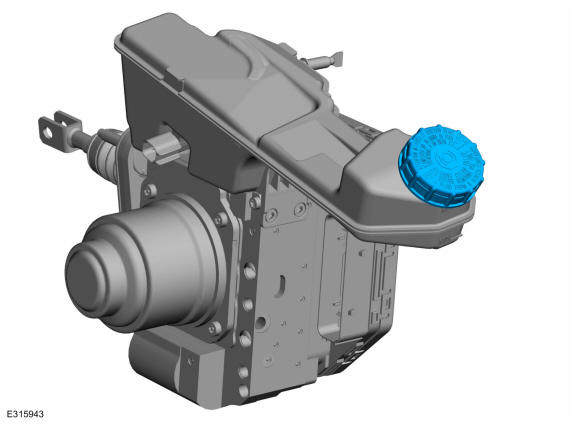

- Remove the brake fluid reservoir cap.

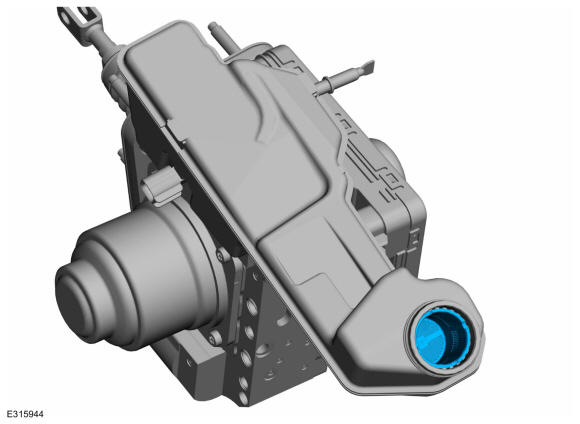

- Remove the brake fluid reservoir filter and remove the brake fluid.

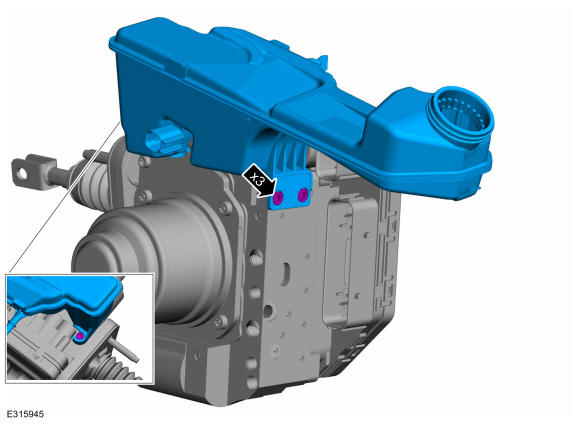

- Remove the screws and the brake fluid reservoir.
Torque: 23 lb.in (2.6 Nm)
-

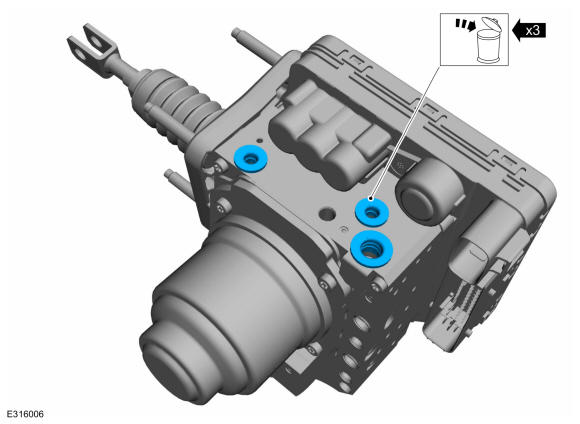

NOTE: Brake fluid reservoir mounting screws and the sealings plugs are supplied with the brake fluid reservoir kit.
Ensure that old brake fluid reservoir sealing washers are removed before installing new reservoir with new washers.
