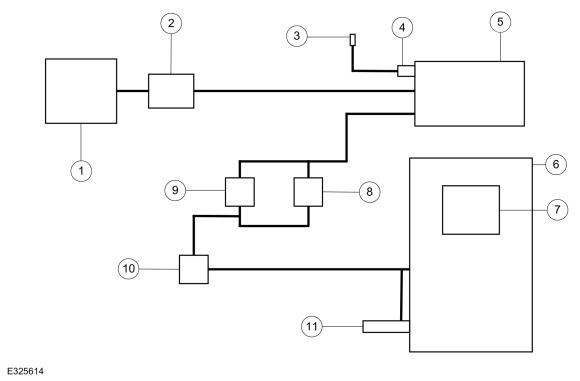

System Diagram
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Intake manifold |
| 2 |
EVAP canister purge valve |
| 3 |
Fresh air hose |
| 4 |
EVAP canister ventilation filter |
| 5 |
EVAP canister |
| 6 |
Fuel tank |
| 7 |
Fuel pump and sender unit |
| 8 |
Fuel tank isolation valve |
| 9 |
Fuel vapor vent valve |
| 10 |
Fuel tank pressure (FTP) sensor and tube |
| 11 |
Fuel tank filler pipe |
