Power Transfer Unit - Vehicles Without: Power Transfer Unit Oil-to-Coolant Cooler
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL | WSS-M2C942-A |
-
NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

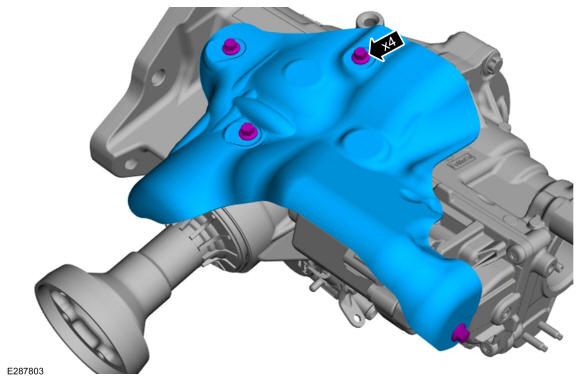

Install the PTU heat shield.
Torque: 89 lb.in (10 Nm)
-
NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

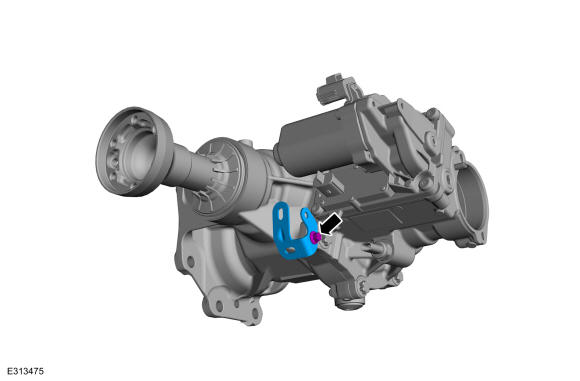

If equipped, install the PTU temperature sensor harness bracket.
Torque: 97 lb.in (11 Nm)
- If removed, lubricate and inspect the O-ring.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

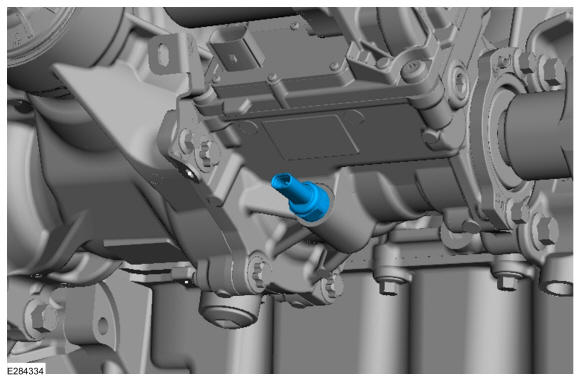

- Install the PTU oil temperature sensor.
Torque: 150 lb.in (17 Nm)

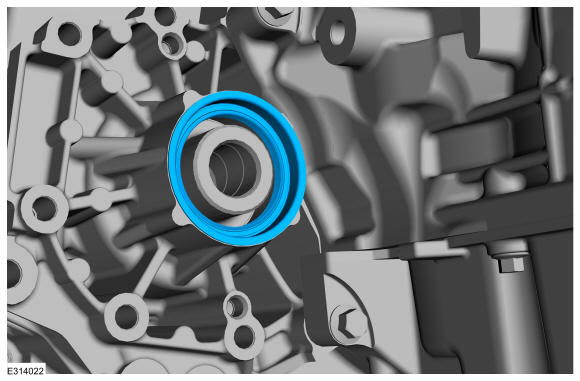

- Install the new PTU to transmission compression seal.

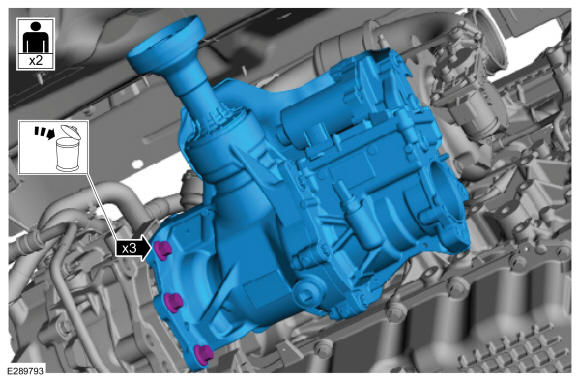

- Install the PTU and mounting bolts.
Torque: 76 lb.ft (103 Nm)

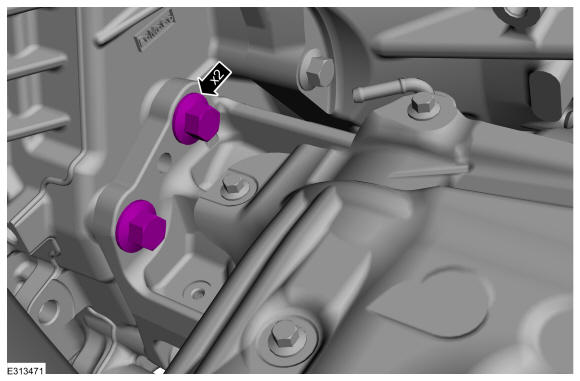

- Install the new PTU bolts.
Torque: 76 lb.ft (103 Nm)

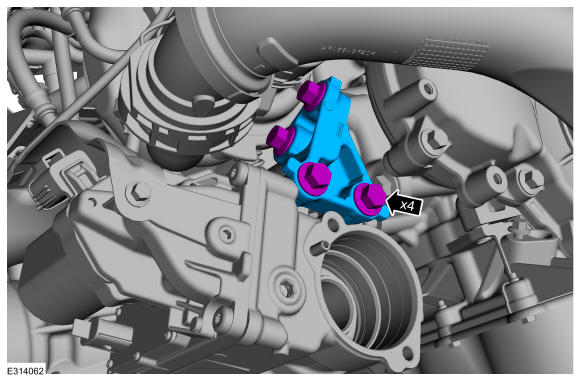

- Install the PTU support bracket and bolts.
Torque: 35 lb.ft (48 Nm)

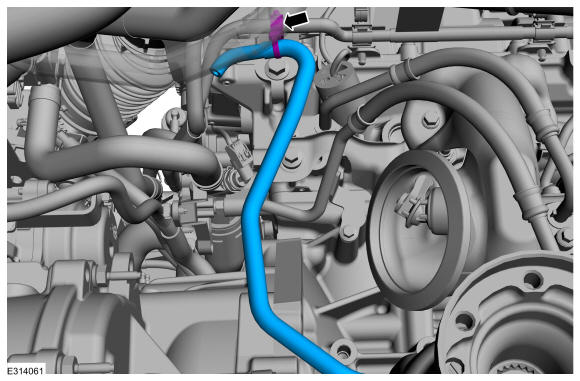

- Install the vent hose retainer.
-
NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.
Connect the PTU vent hose.

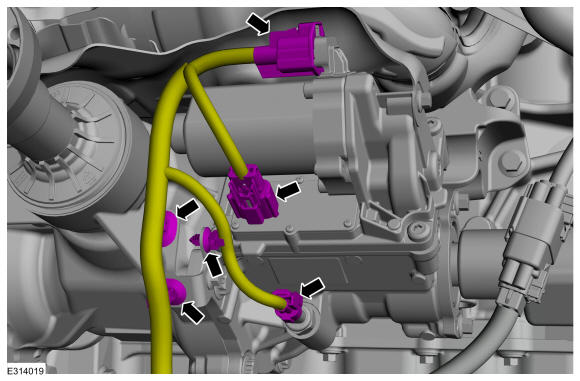

- If equipped, connect the PTU temperature sensor. Connect the motor connectors and retainers.
- Install the LH halfshaft. Refer to: Front Halfshaft LH .
- Install the intermediate shaft. Refer to: Intermediate Shaft .
-

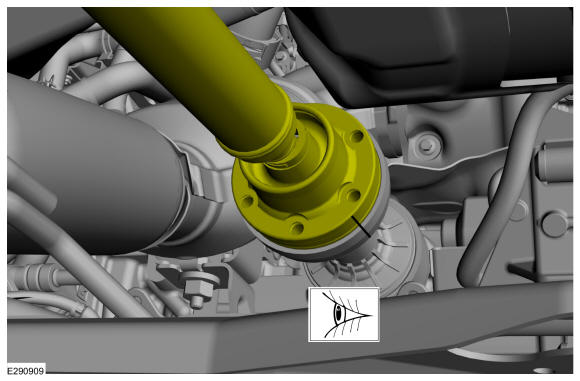

NOTE: Make sure that the installation marks are aligned.

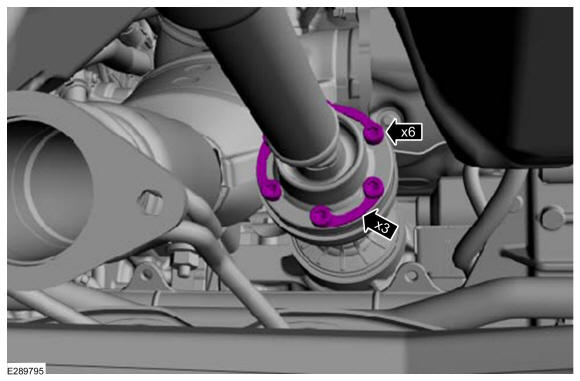

- Install new PTU flange bolts.
Torque: 26 lb.ft (35 Nm)
- Install the catalytic converter. Refer to: Catalytic Converter - 4WD .
- Install the front subframe. Refer to: Front Subframe .
- Fill the PTU. Refer to: Power Transfer Unit Draining and Filling .
