Wastegate Control Valve Solenoid: Installation

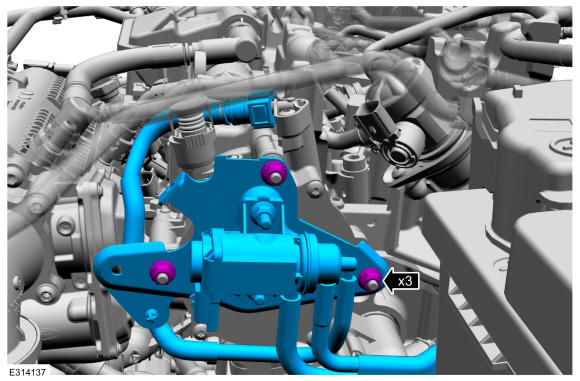

- Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retaining nuts.
Torque: 89 lb.in (10 Nm)

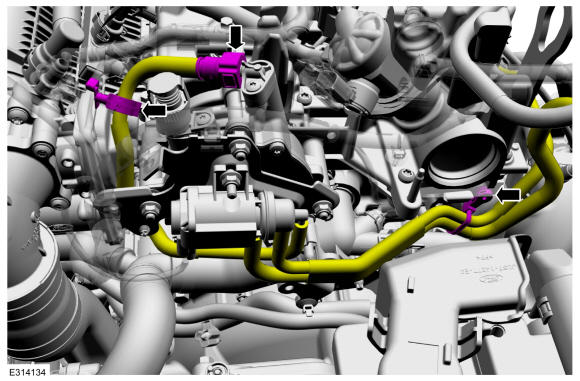

- Attach the hose retainers, then connect the turbocharger control hose. Use the General Equipment: Hose Clamp Remover/Installer

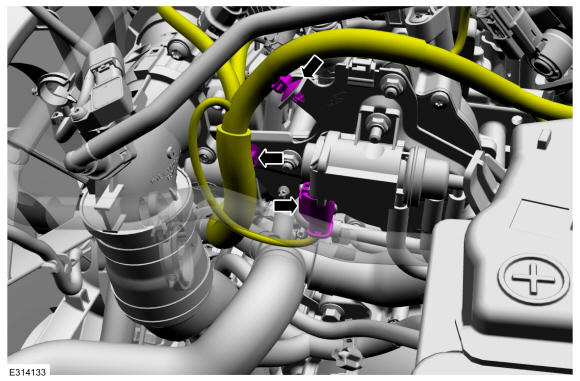

- Attach the hose retainers, then connect the quick release coupling to the vacuum pump. Refer to: Quick Release Coupling
.

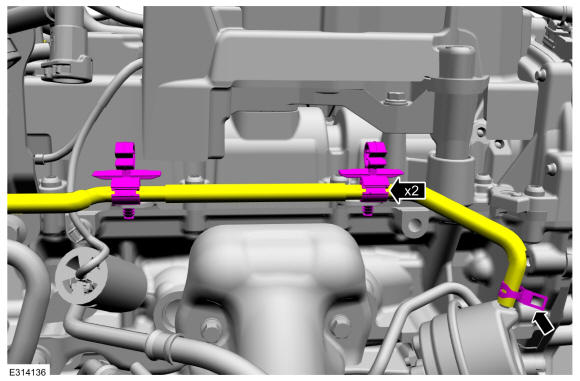

- Attach the wiring harness retainers, then connect the electrical connector.
- Install the air cleaner. Refer to: Air Cleaner .
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
