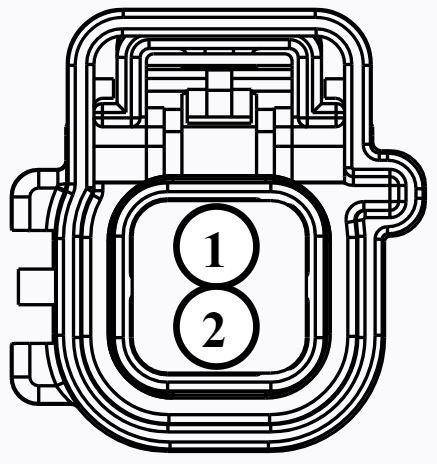

Connector End View C339 - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C339 | INLINE | 14D23014C687 | See Below | |||||
MALE
Harness
14D230
FEMALE
Harness
14C687
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CR106 (VT-GY) | 20 | N/A | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RR106 (YE-OG) | 20 | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1244
Service Part Number:
AU2Z-14S411-BMA
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Passenger)
