Connector End View C317 - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C317	INLINE	14B68614A005			See Below

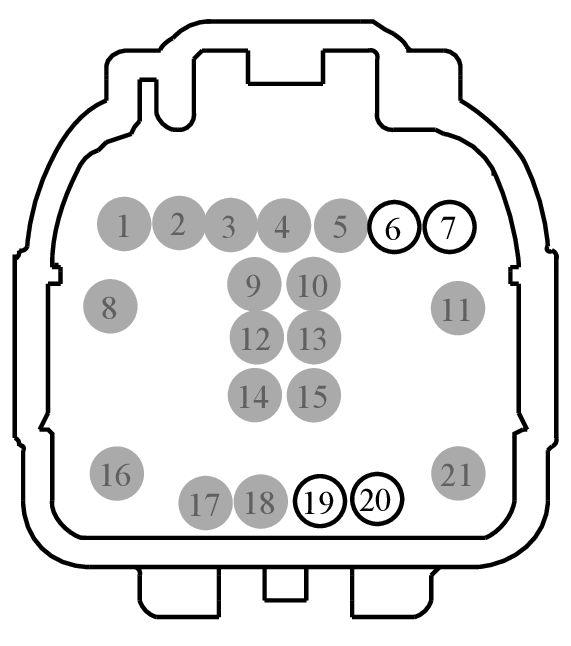

MALE

Harness

14B686

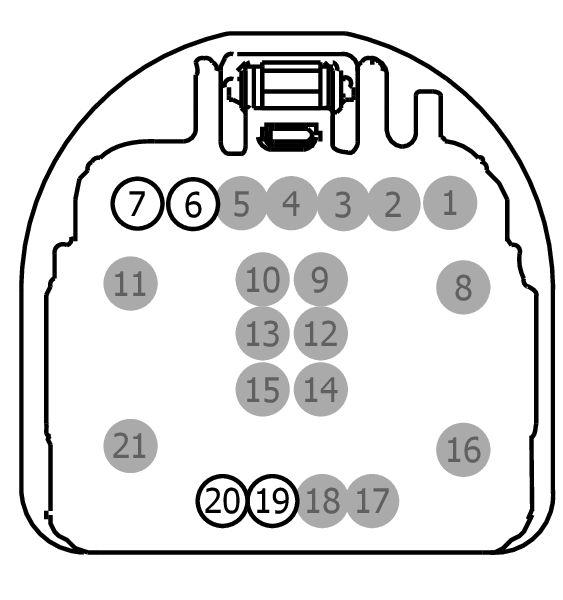

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14421-BA	EU2Z-14421-BA	0.64
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	*	*	N/A
3	*	*	N/A
4	*	*	N/A
5	*	*	N/A
6	RR172 (GN-VT)	20	9U5T-14421-BA
7	CR206 (BN)	20	9U5T-14421-BA
8	*	*	N/A
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A
16	*	*	N/A
17	*	*	N/A
18	*	*	N/A
19	CR108 (GY-BN)	20	9U5T-14421-BA
20	RR108 (VT-OG)	20	9U5T-14421-BA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	*	*	N/A
3	*	*	N/A
4	*	*	N/A
5	*	*	N/A
6	RR172 (GN-VT)	20	8U5T-14474-BB
7	CR206 (BN)	20	8U5T-14474-BB
8	*	*	N/A
9	*	*	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	*	*	N/A
14	*	*	N/A
15	*	*	N/A
16	*	*	N/A
17	*	*	N/A
18	*	*	N/A
19	CR108 (GY-BN)	20	8U5T-14474-BB
20	RR108 (VT-OG)	20	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1463

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-GA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1482

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-GB

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

21

Vehicle Uses:

• Connector - Inline
