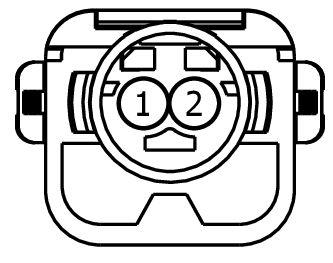

Connector End View C303C - SEAT BELT PRETENSIONER RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C303C | SEAT BELT PRETENSIONER RH | 14A005 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR122 (WH-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + | N/A | ||||
| 2 | RR122 (BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - | N/A | ||||
