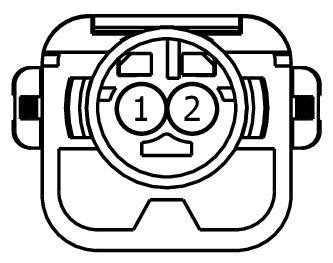

Connector End View C9096 - SIDE CURTAIN AIRBAG LH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C9096 | SIDE CURTAIN AIRBAG LH | 14A005 | part# N/A | Not Available | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR109 (BN-BU) | 18 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + | N/A | ||||
| 2 | RR109 (BU-GN) | 18 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - | N/A | ||||
