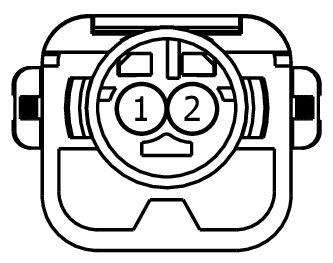

Connector End View C3687 - SECOND ROW SEAT BELT PRETENSIONER LH
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3687 |
SECOND ROW SEAT BELT PRETENSIONER LH |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RR123 (GY) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE - |
N/A |
| 2 |
CR123 (GN-VT) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE + |
N/A |
