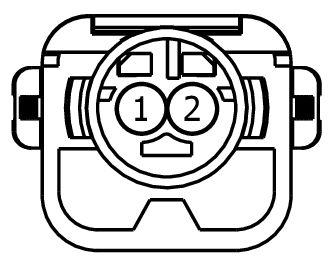

Connector End View C3686 - SECOND ROW SEAT BELT PRETENSIONER RH
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3686 |
SECOND ROW SEAT BELT PRETENSIONER RH |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RR125 (GN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE - |
N/A |
| 2 |
CR125 (BU-BN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE + |
N/A |
