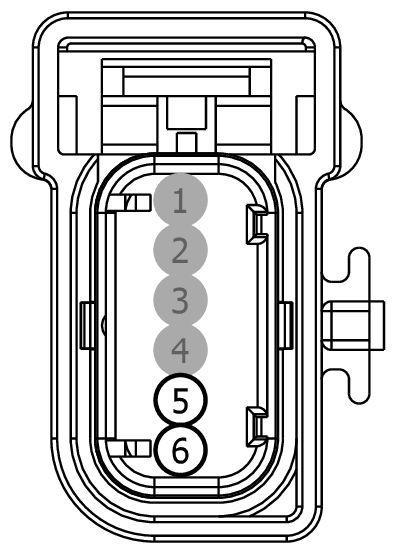

Connector End View C3558 - SECOND ROW SEAT BELT BUCKLE SWITCH RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3558	SECOND ROW SEAT BELT BUCKLE SWITCH RH	14B686			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CR206 (BN)	20	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD	8U5T-14474-BB
6	RR172 (GN-VT)	20	CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1329

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-EA

Gauge:

20

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Antenna - Keyless Entry
• Handle - Decklid
• Switch - Keyless Entry
• Switch - Seatbelt
