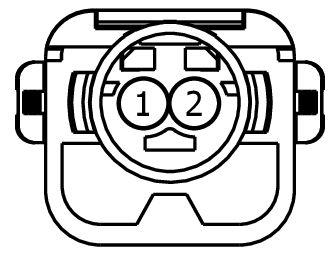

Connector End View C3201B - SEAT BELT PRETENSIONER LH
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3201B |
SEAT BELT PRETENSIONER LH |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RR120 (BN-GN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - |
N/A |
| 2 |
CR120 (BU-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + |
N/A |
