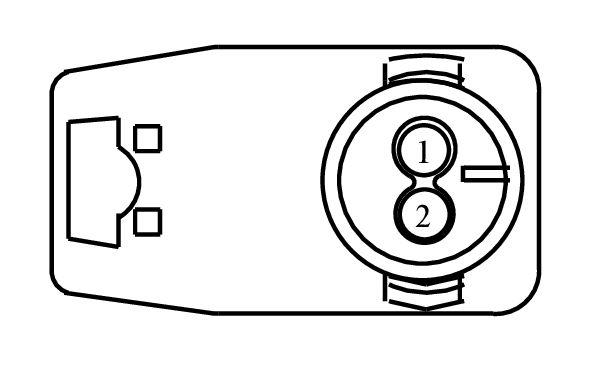

Connector End View C216A - DRIVER AIRBAG

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C216A	DRIVER AIRBAG	PIA			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	DRIVER AIRBAG 1 +	N/A
2	* (*)	*	DRIVER AIRBAG 1 -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1226

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BJA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
