Power Transfer Unit Draining and Filling
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
Draining
All vehicles
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If equipped, remove the underbody shield.
Vehicles without PTU Oil-to-Coolant Cooling

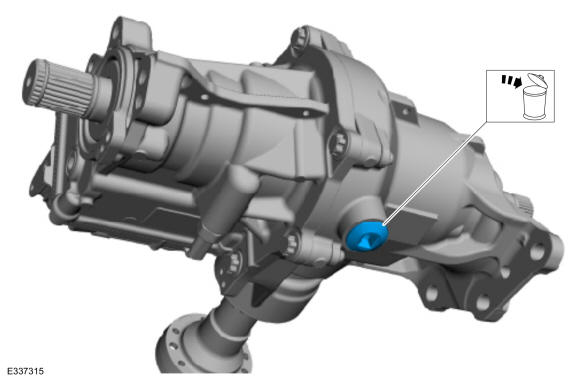

- Remove and discard the PTU drain plug.
-
NOTE: Ensure drain plug gasket is properly seated and flush inside of drain plug groove. Drain Plug Gasket should not be visible after installation.
Install the new drain plug.
Torque: 30 lb.ft (40 Nm)
Vehicles with PTU Oil-to-Coolant Cooling
-

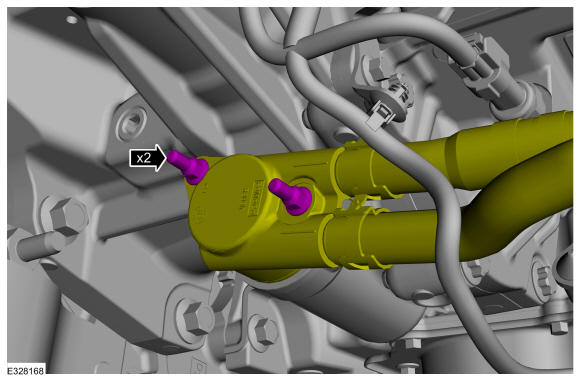

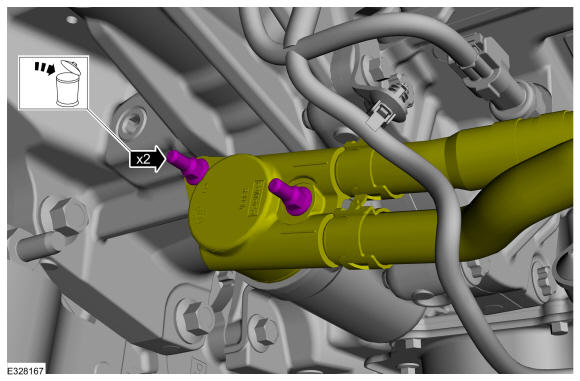

- Remove and discard the PTU cooler nuts.
-
NOTE: Be prepared to catch escaping fluid.
Position aside the PTU cooler.
-
- Install the PTU cooler.
- Install the PTU cooler nuts.
Torque: 97 lb.in (11 Nm)
Filling
Vehicles with PTU Oil-to-Coolant Cooling

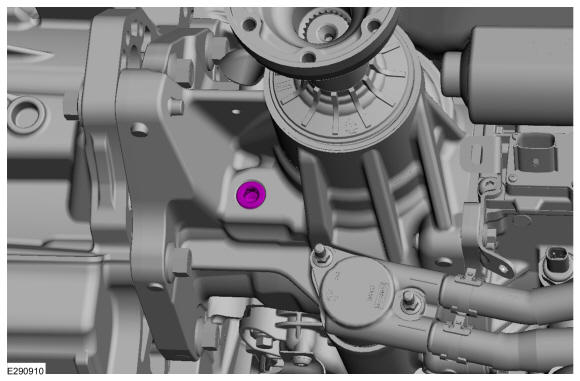

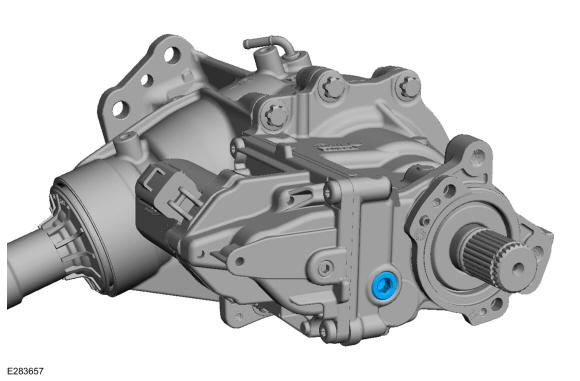

- Remove the PTU fill plug.
- Fill the PTU with clean fluid, level with the fill plug opening. Refer to: Specifications 2.0L EcoBoost
.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)
Vehicles without PTU Oil-to-Coolant Cooling

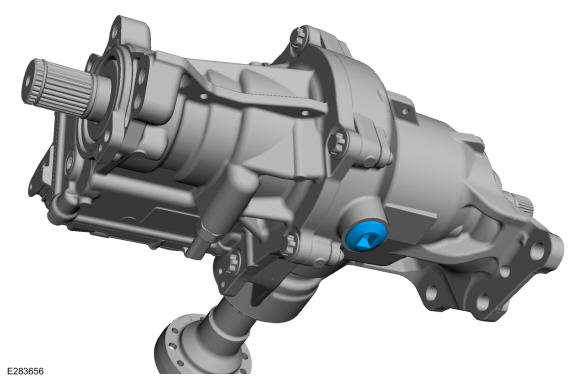

- Remove the PTU fill plug.
- Fill the PTU with clean fluid, level with the fill plug opening. Refer to: Specifications 2.0L EcoBoost
.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the PTU fill plug.
Torque:Stage 1: 133 lb.in (15 Nm) Stage 2: 360 deg.
All vehicles
- If equipped, install the underbody shield.
