Parking Brake Switch: Removal
WARNING: This page is about a different car, the 2020 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

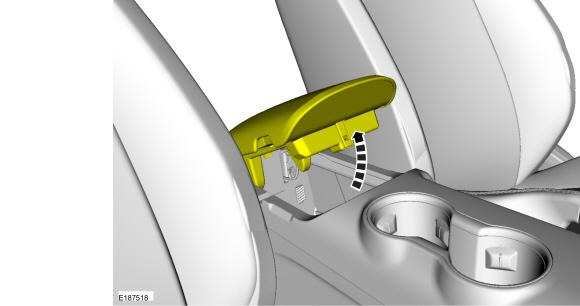

- Open the floor console lid.

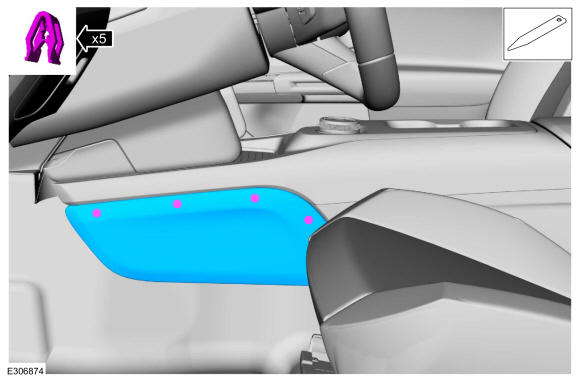

- Release the clips and remove the floor console LH side trim panel. Use the General Equipment: Interior Trim Remover

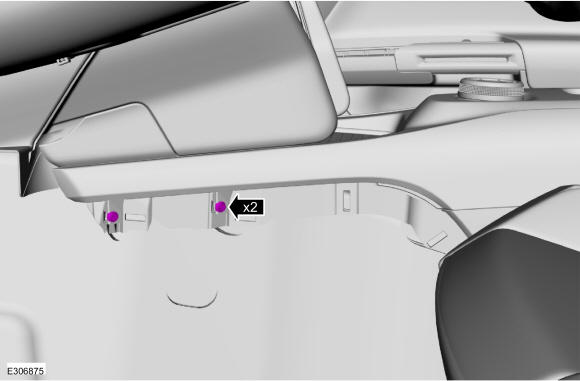

- Remove the LH side front screws.
Torque: 19 lb.in (2.2 Nm)

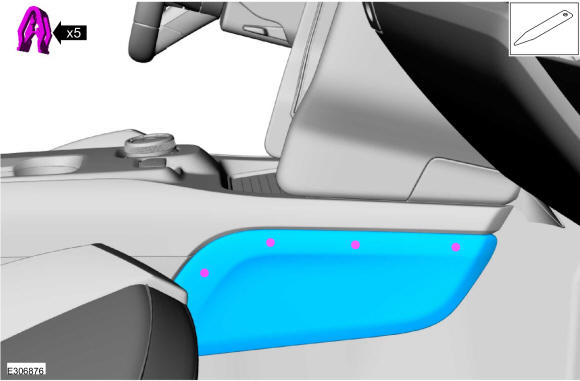

- Release the clips and remove the floor console RH side trim panel. Use the General Equipment: Interior Trim Remover

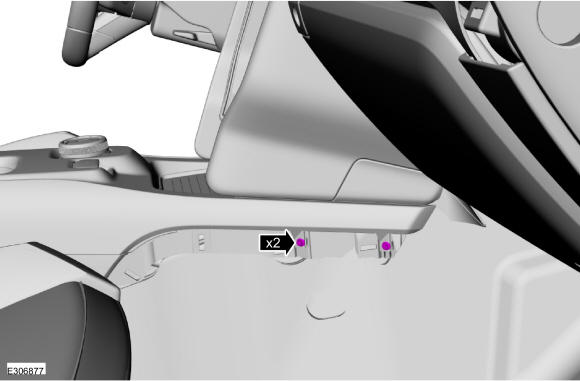

- Remove the RH side front screws.
Torque: 19 lb.in (2.2 Nm)

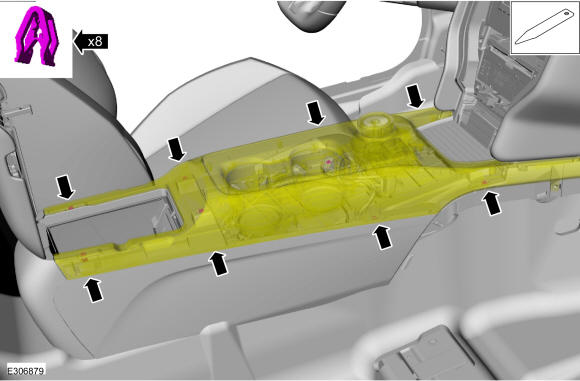

- Release the floor console clips. Use the General Equipment: Interior Trim Remover

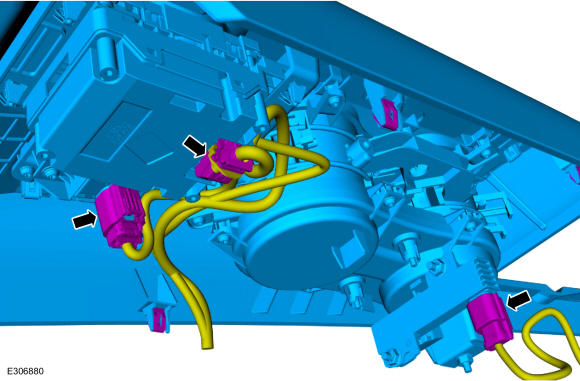

- Disconnect the connectors and remove the Floor console trim panel.

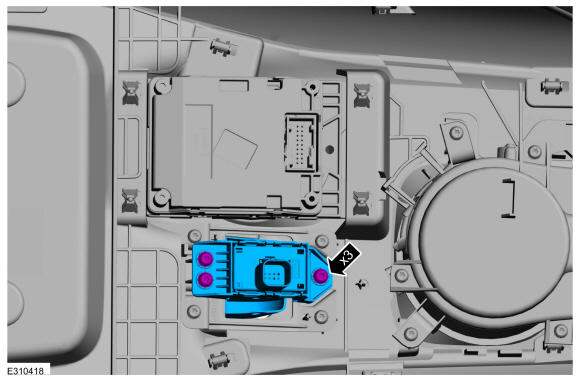

- Remove the screws and the parking brake switch.
Torque: 35 lb.in (4 Nm)
