Edge SE, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Passive Anti-Theft System
Passive Anti-Theft System

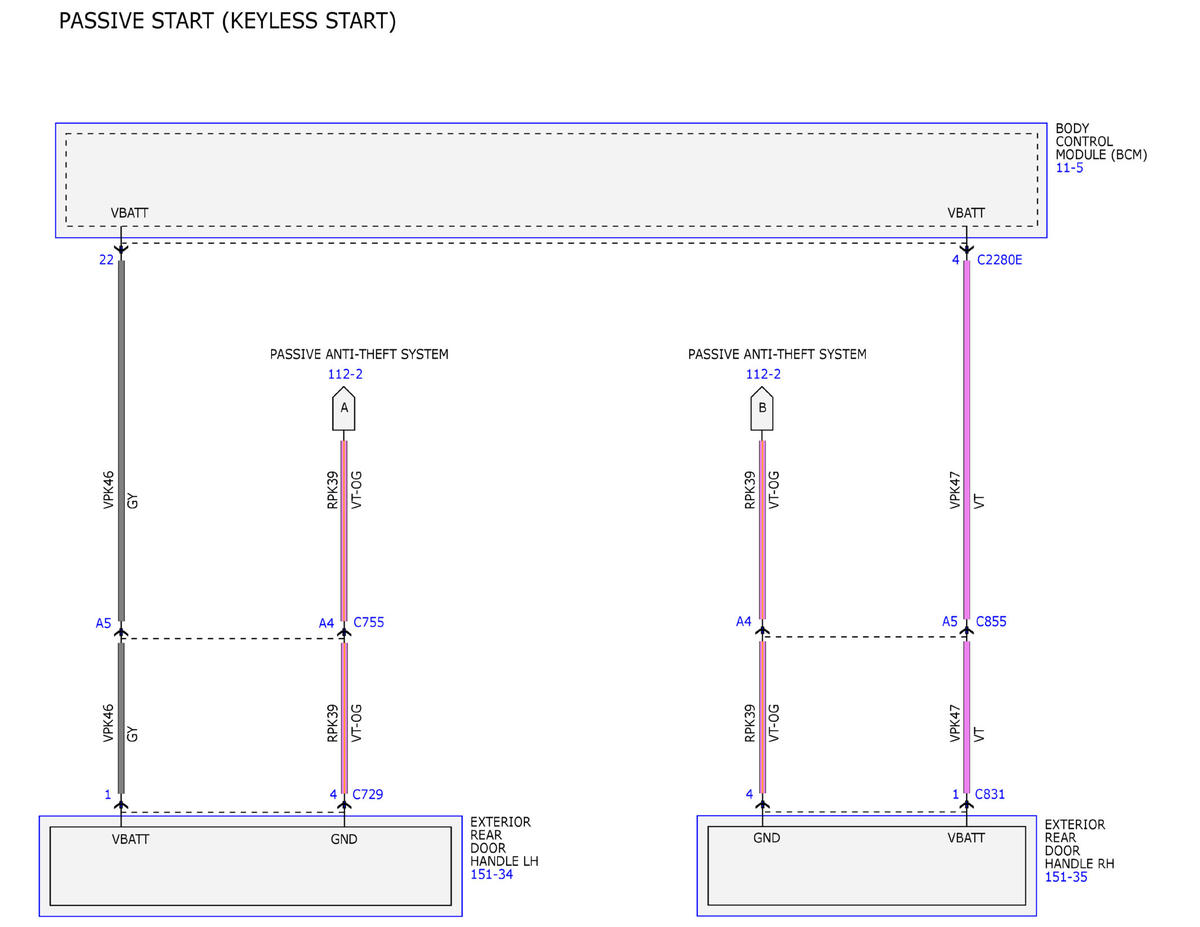

Fig 1: Passive Anti-Theft System Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

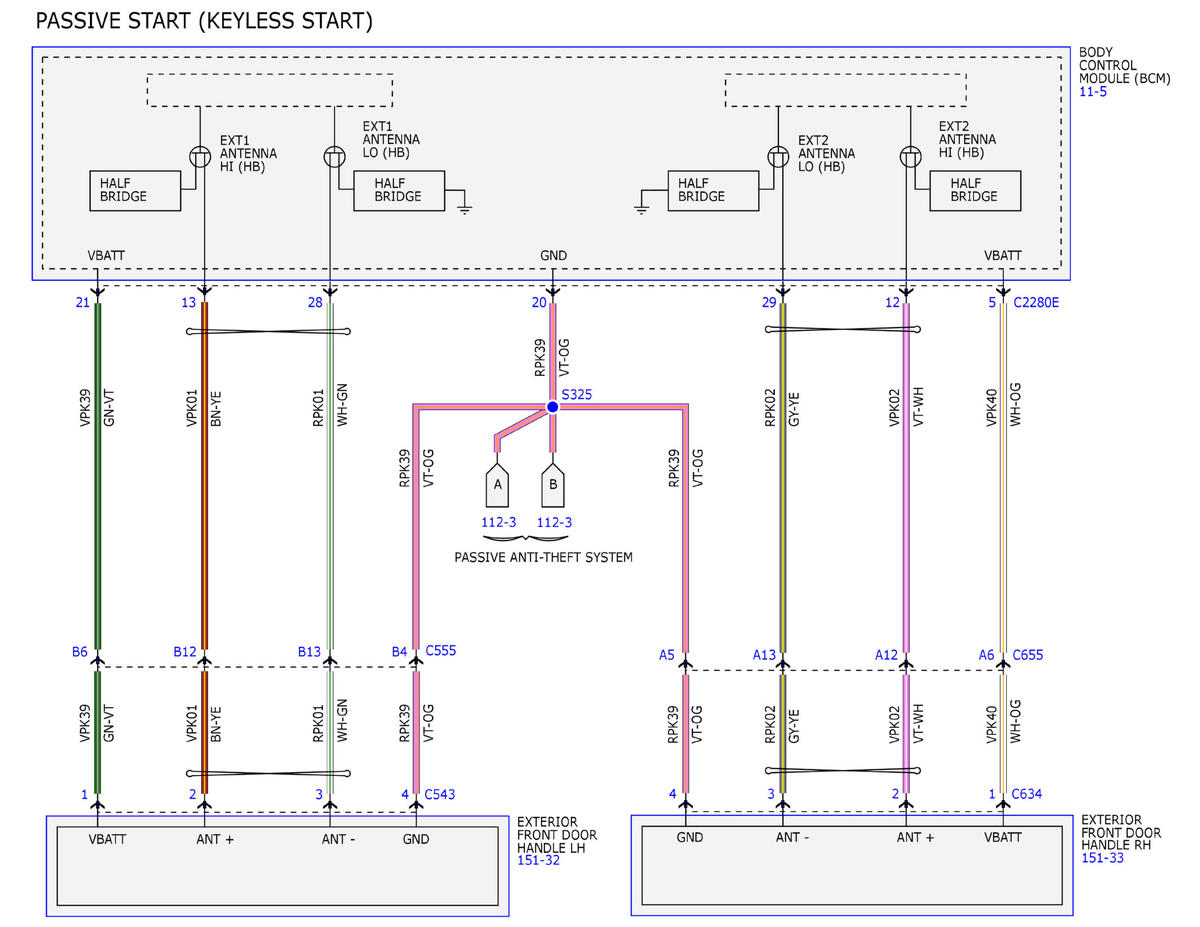

Fig 2: Passive Anti-Theft System Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

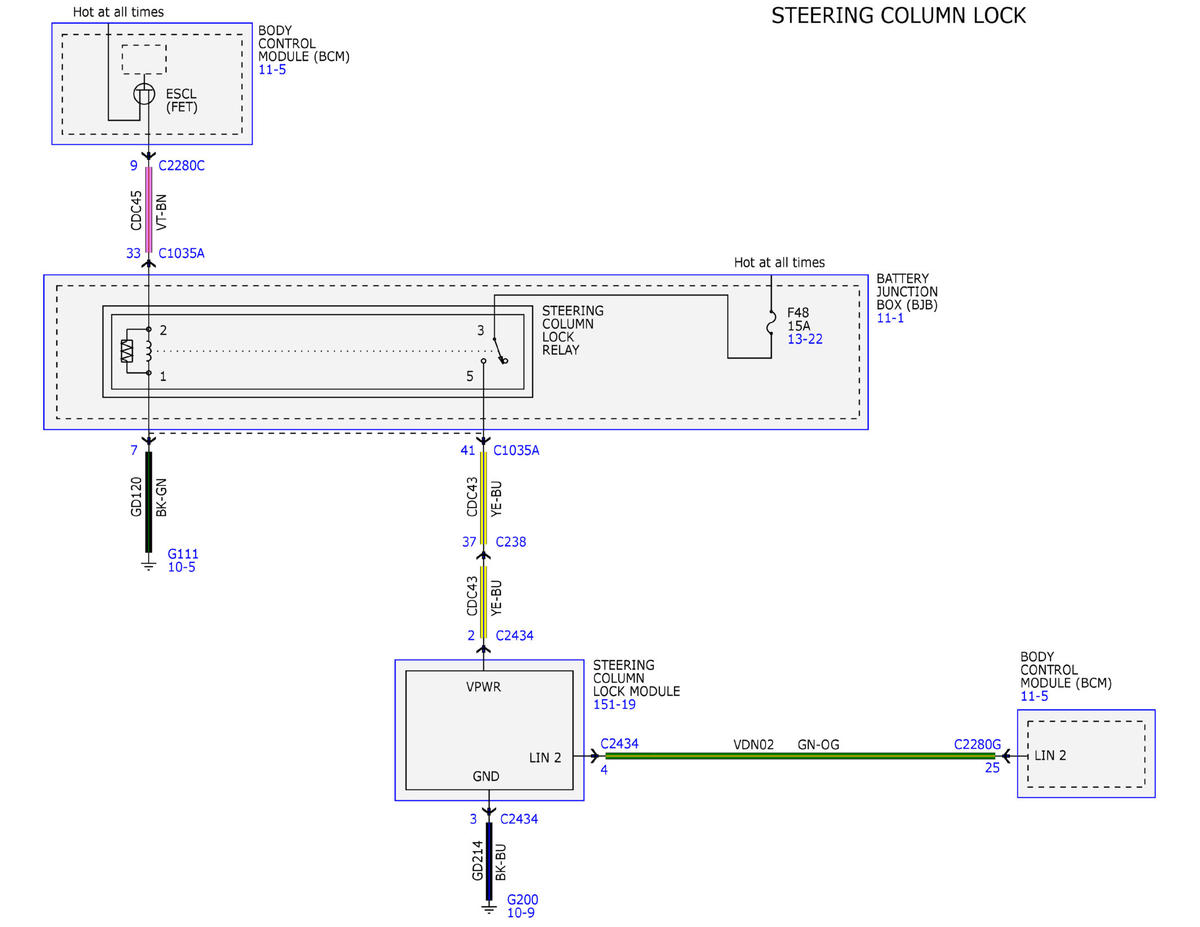

Fig 3: Passive Anti-Theft System Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY

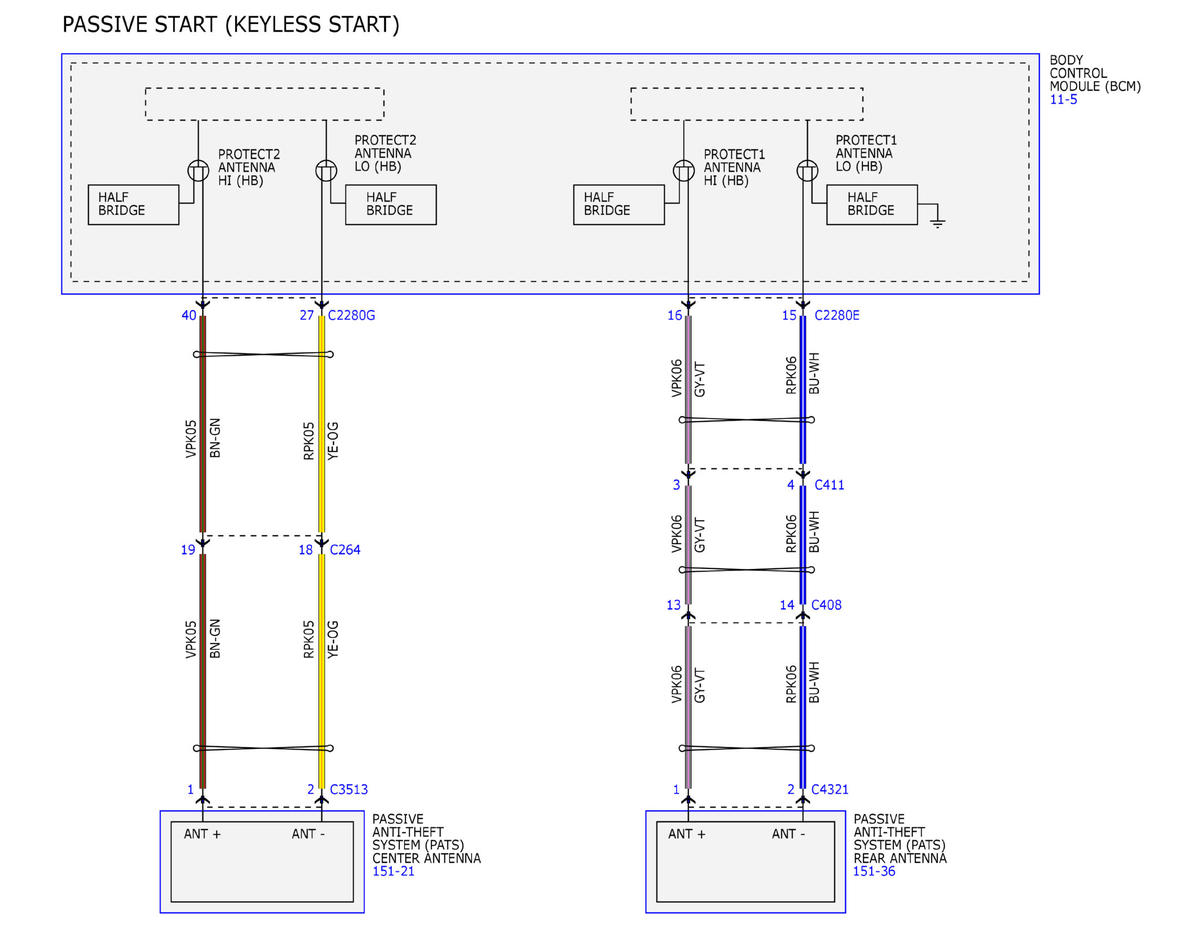

Fig 4: Passive Anti-Theft System Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR COMPANY
