Parking Aid

Fig 1: Parking Aid Wiring Diagram (1 Of 8)
GFDWR108797Courtesy of FORD MOTOR COMPANY

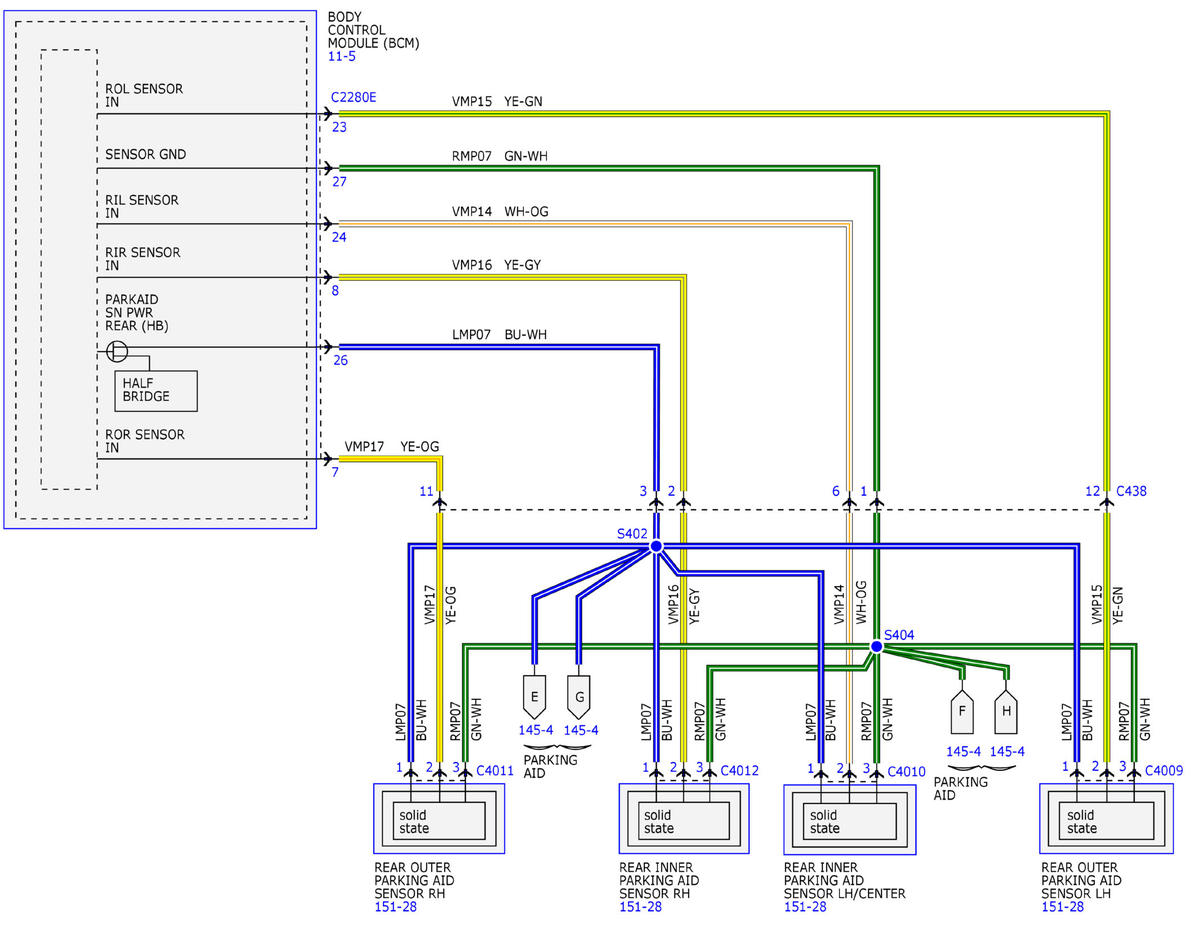

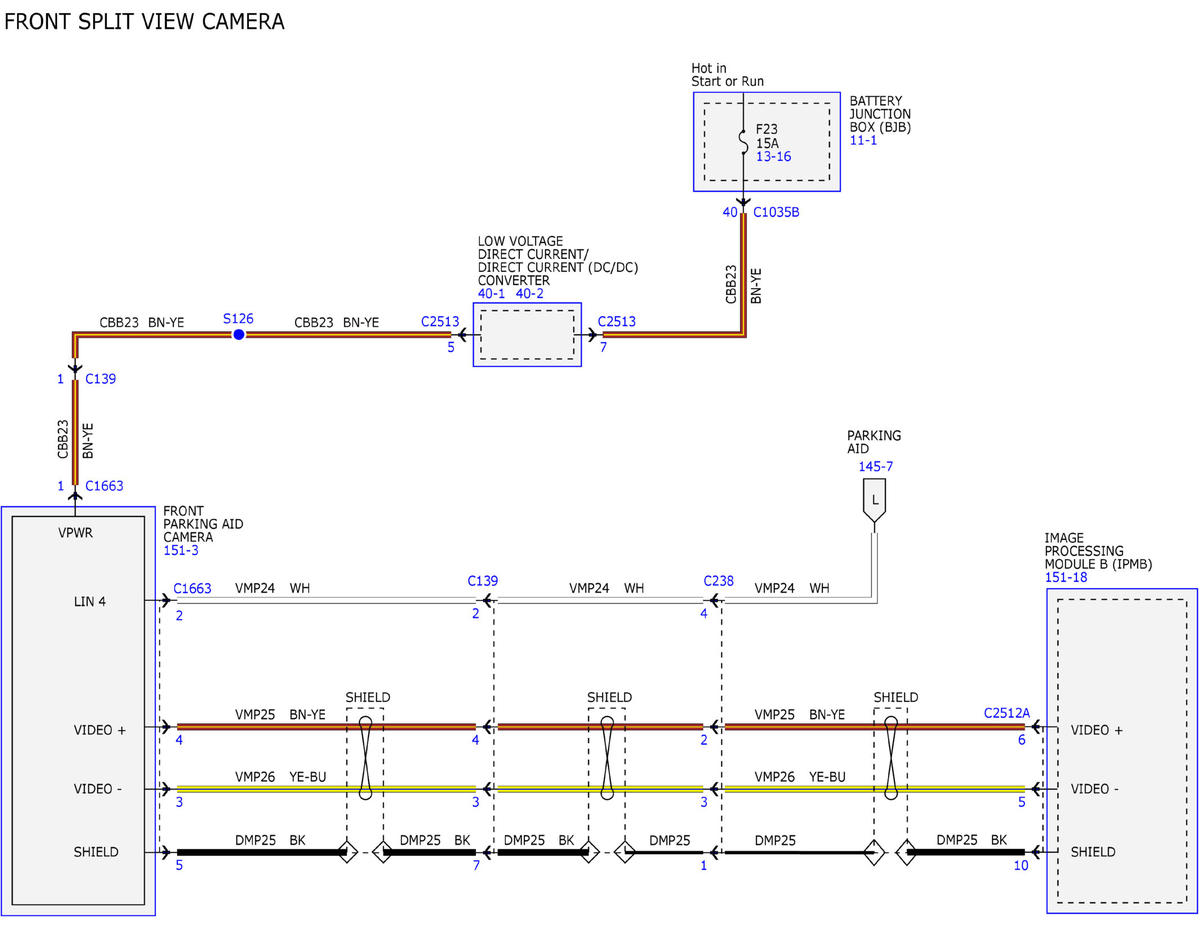

Fig 2: Parking Aid Wiring Diagram (2 Of 8)
GFDWR108798Courtesy of FORD MOTOR COMPANY

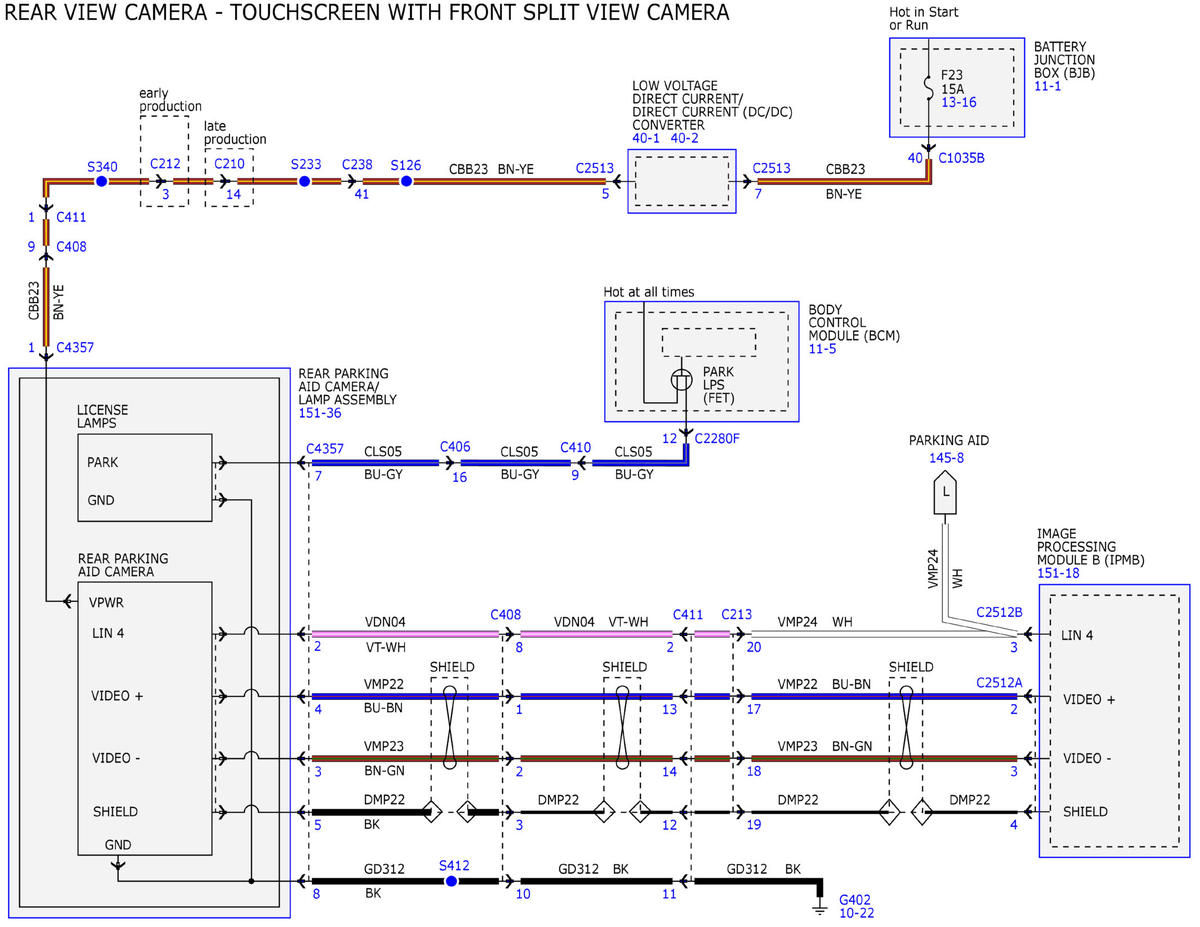

Fig 3: Parking Aid Wiring Diagram (3 Of 8)
GFDWR108799Courtesy of FORD MOTOR COMPANY

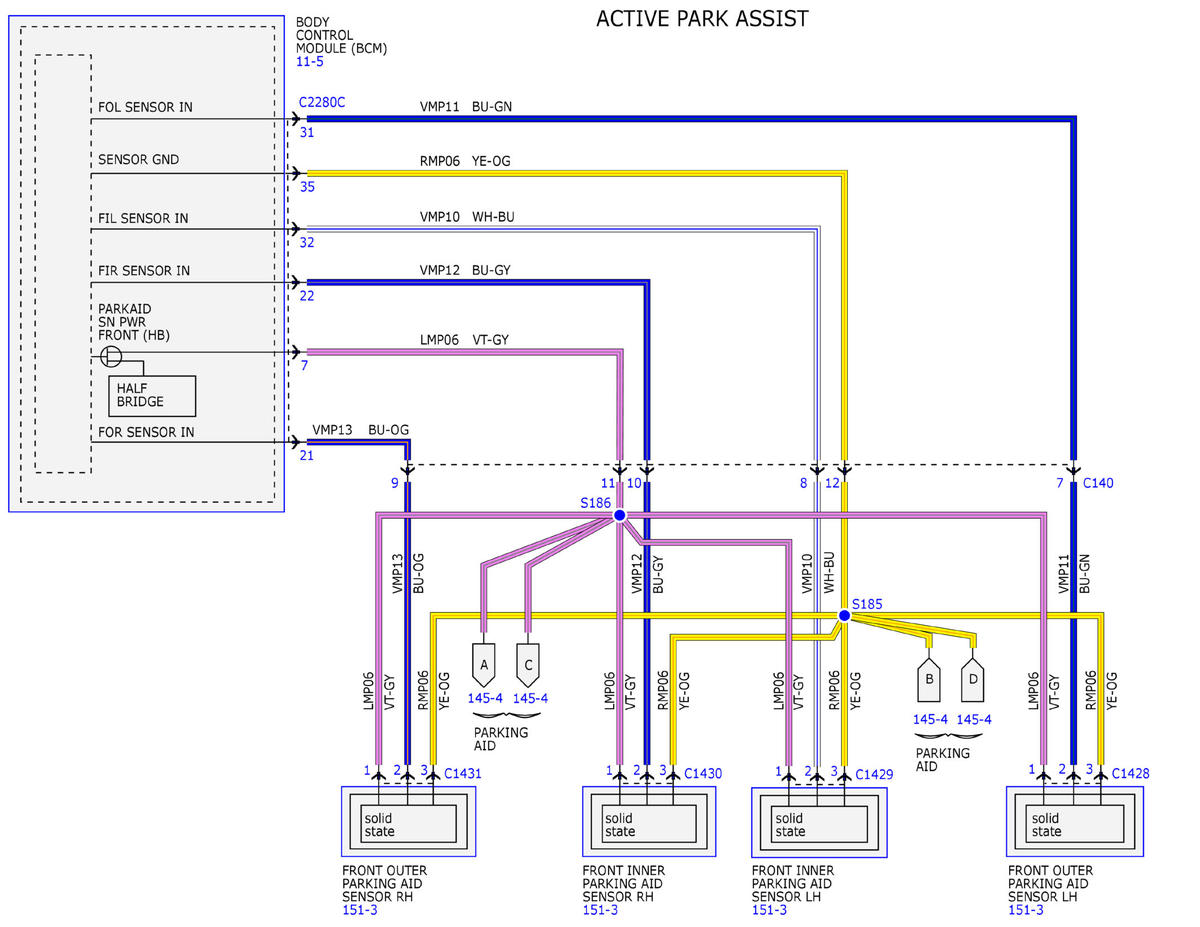

Fig 4: Parking Aid Wiring Diagram (4 Of 8)
GFDWR108800Courtesy of FORD MOTOR COMPANY

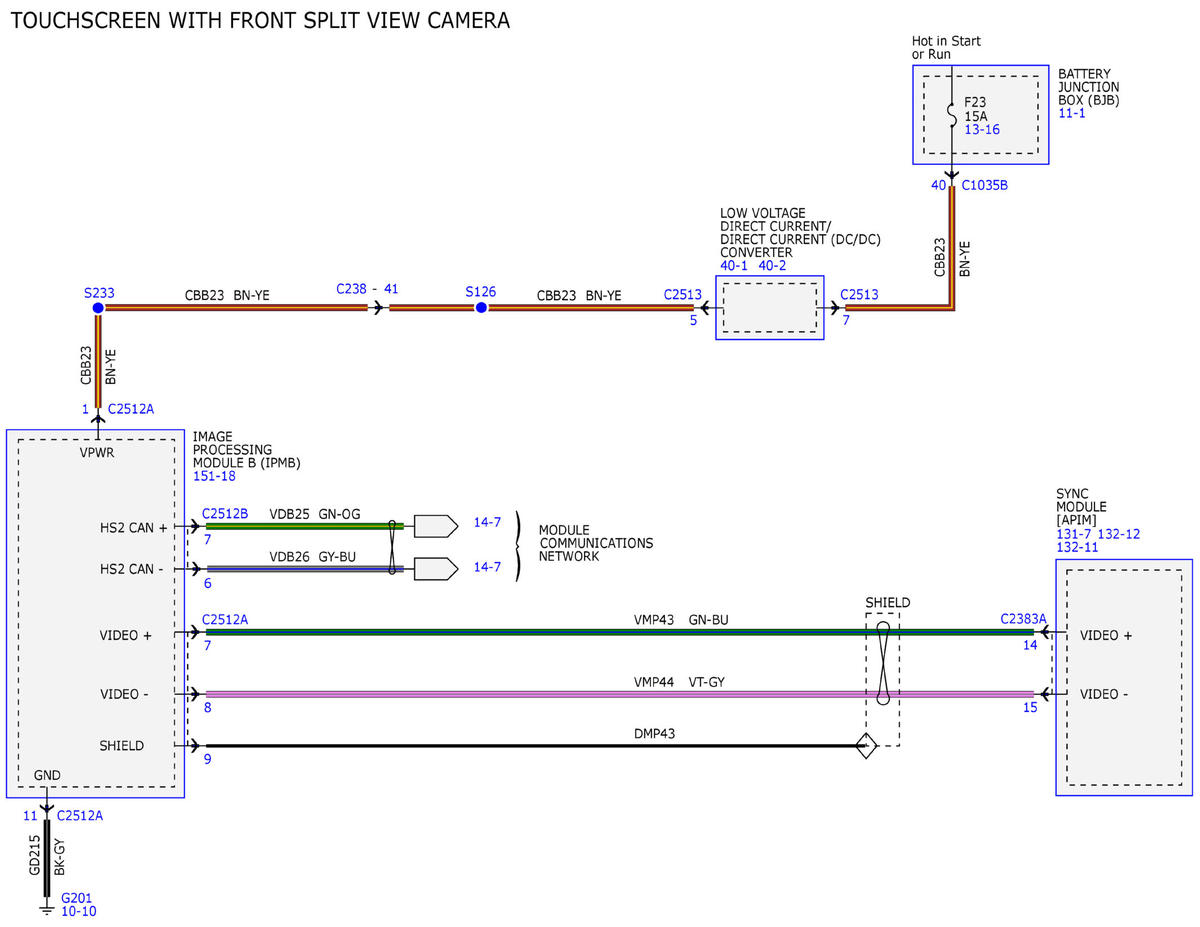

Fig 5: Parking Aid Wiring Diagram (5 Of 8)
GFDWR108801Courtesy of FORD MOTOR COMPANY

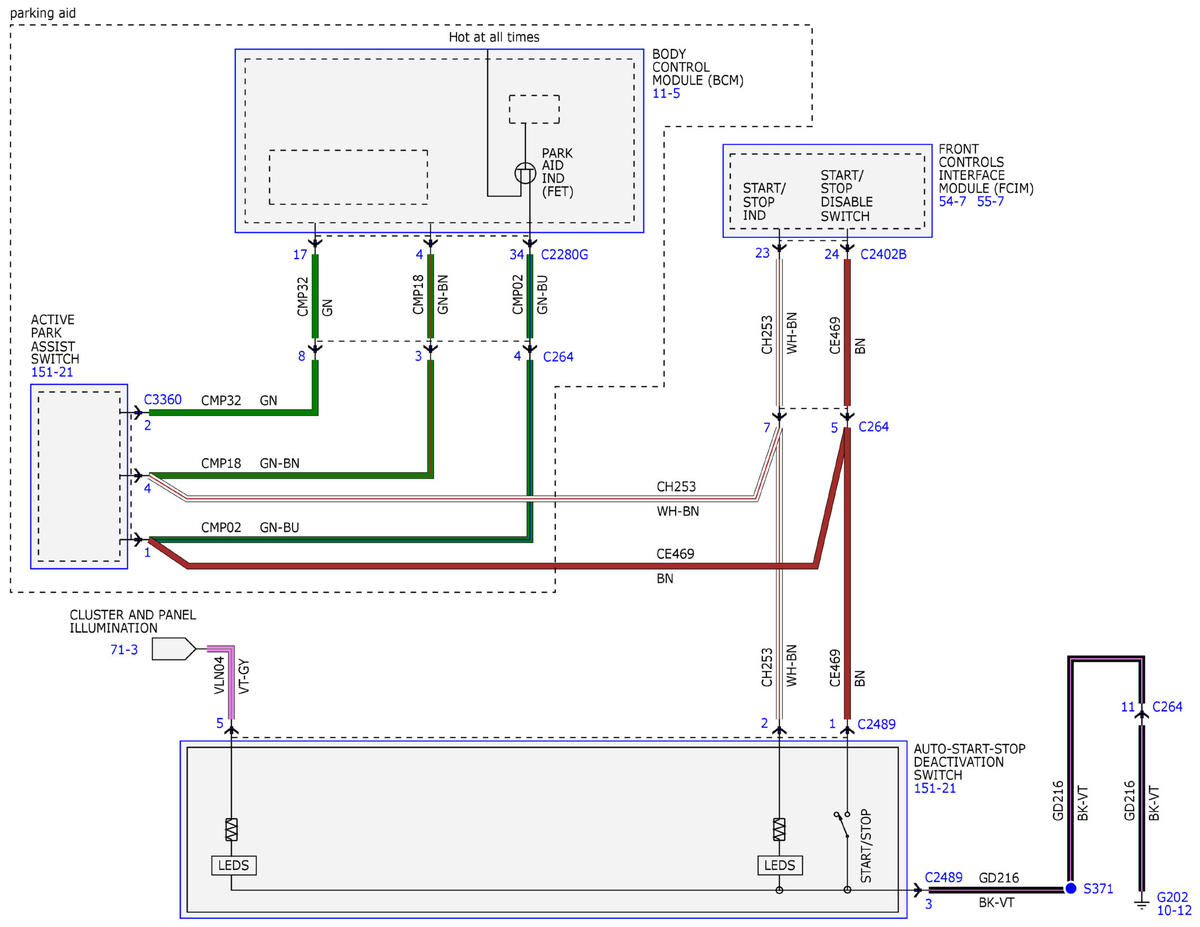

Fig 6: Parking Aid Wiring Diagram (6 Of 8)
GFDWR108802Courtesy of FORD MOTOR COMPANY

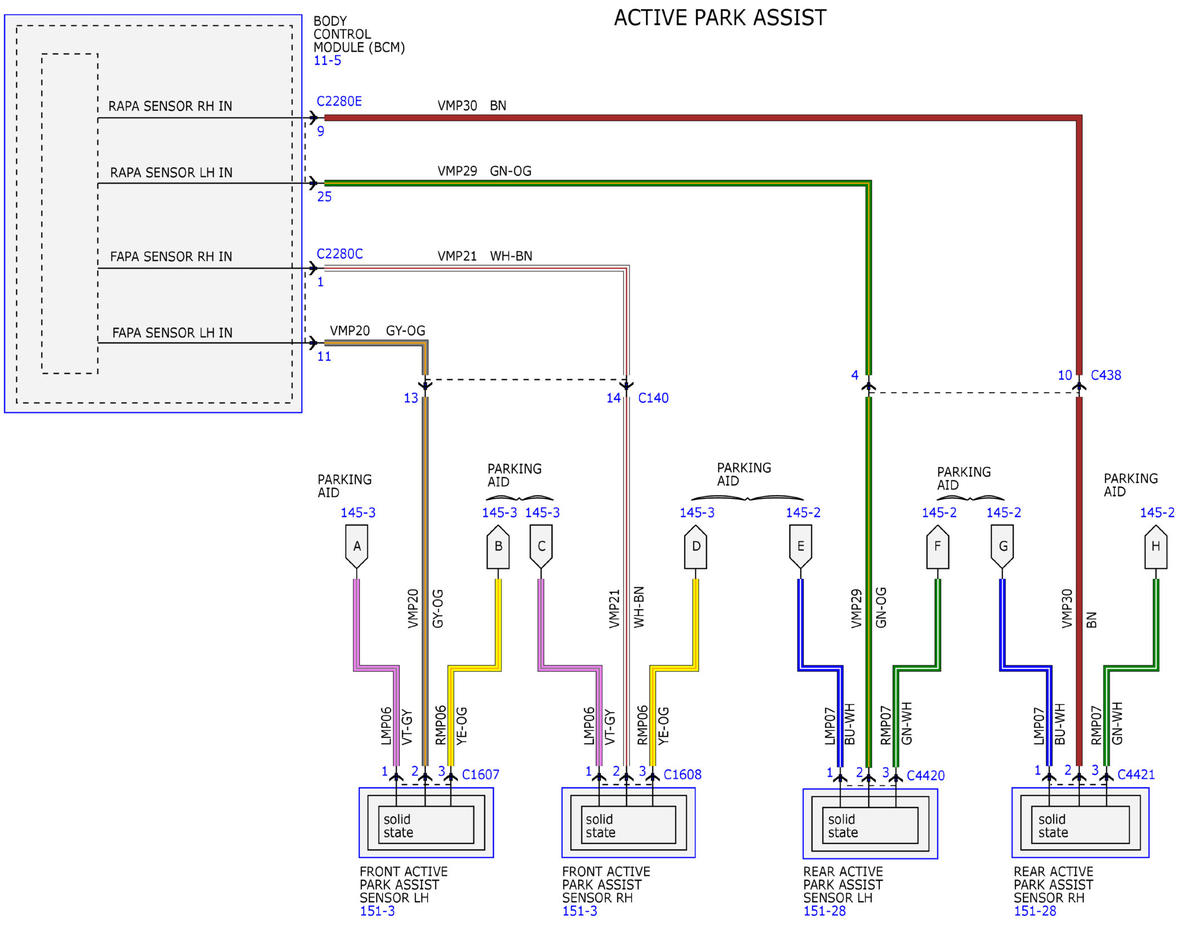

Fig 7: Parking Aid Wiring Diagram (7 Of 8)
GFDWR108803Courtesy of FORD MOTOR COMPANY

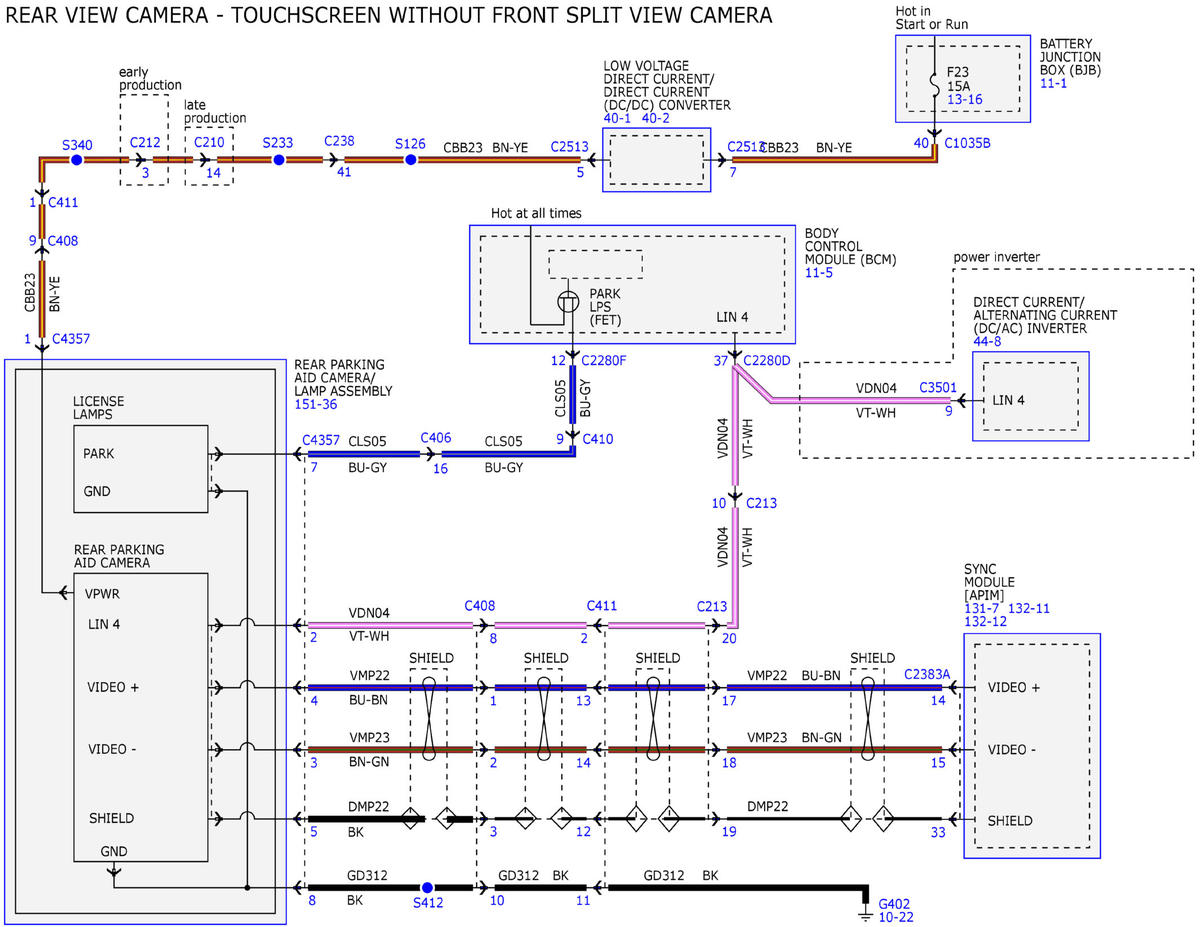

Fig 8: Parking Aid Wiring Diagram (8 Of 8)
GFDWR108804Courtesy of FORD MOTOR COMPANY
