Cruise Control

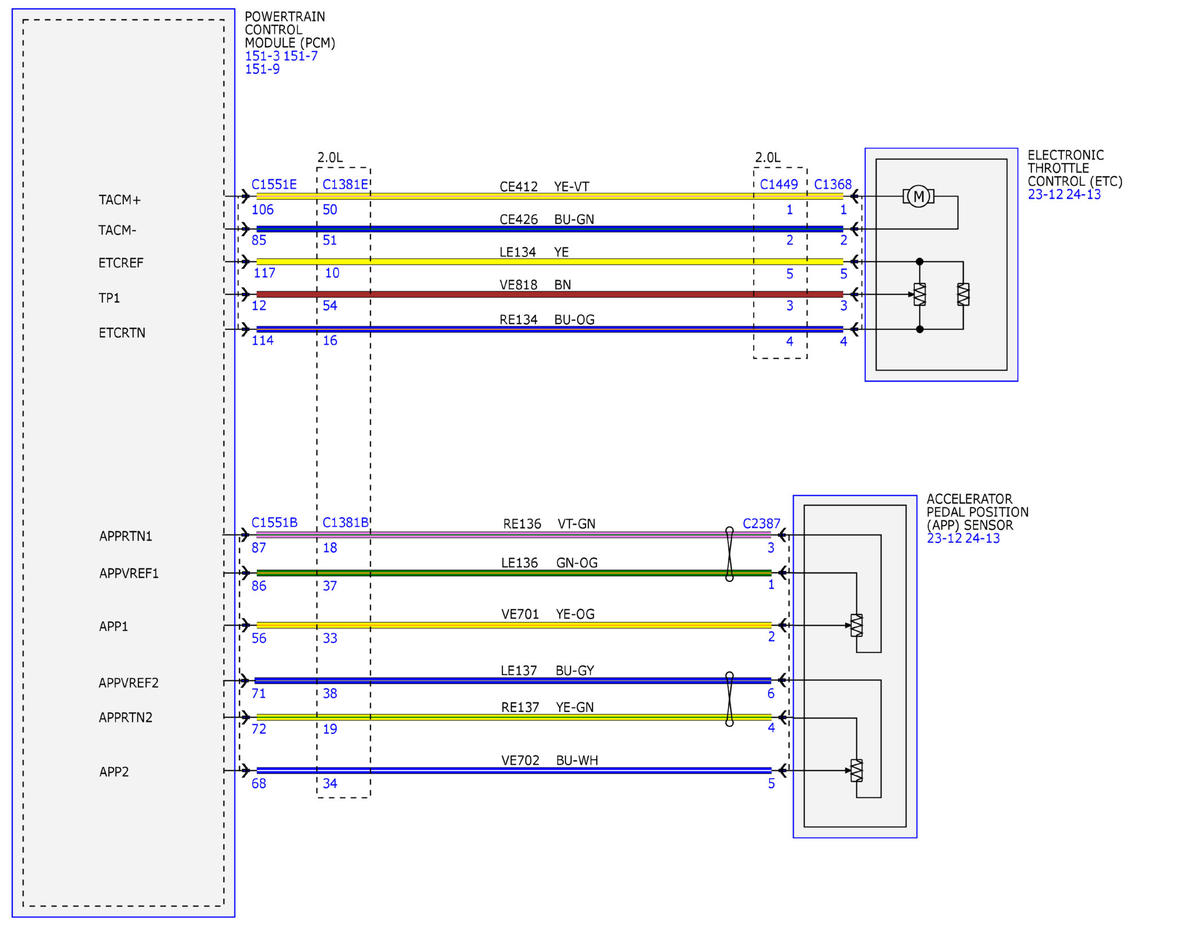

Fig 1: Cruise Control Wiring Diagram (1 Of 8)
GFDWR108695Courtesy of FORD MOTOR COMPANY

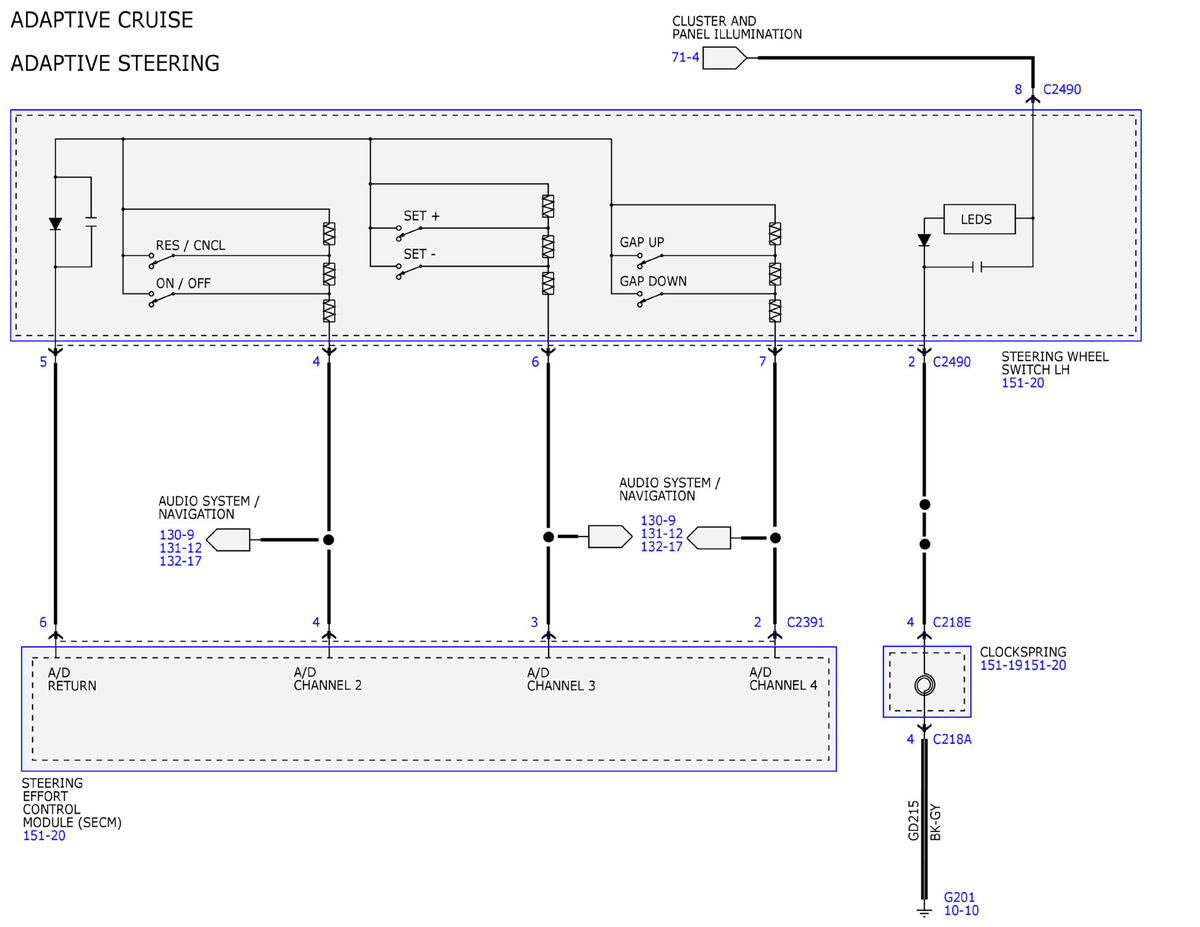

Fig 2: Cruise Control Wiring Diagram (2 Of 8)
GFDWR108696Courtesy of FORD MOTOR COMPANY

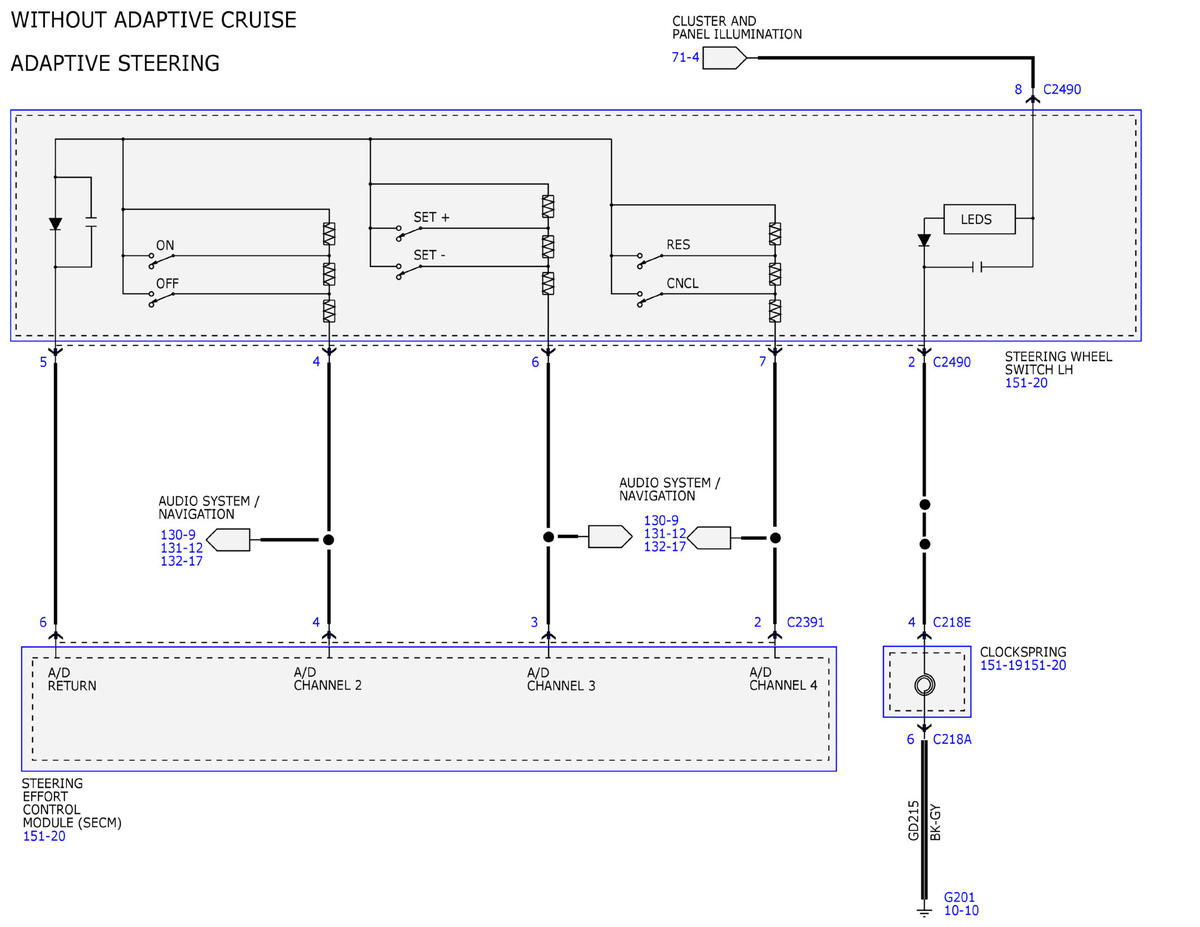

Fig 3: Cruise Control Wiring Diagram (3 Of 8)
GFDWR108697Courtesy of FORD MOTOR COMPANY

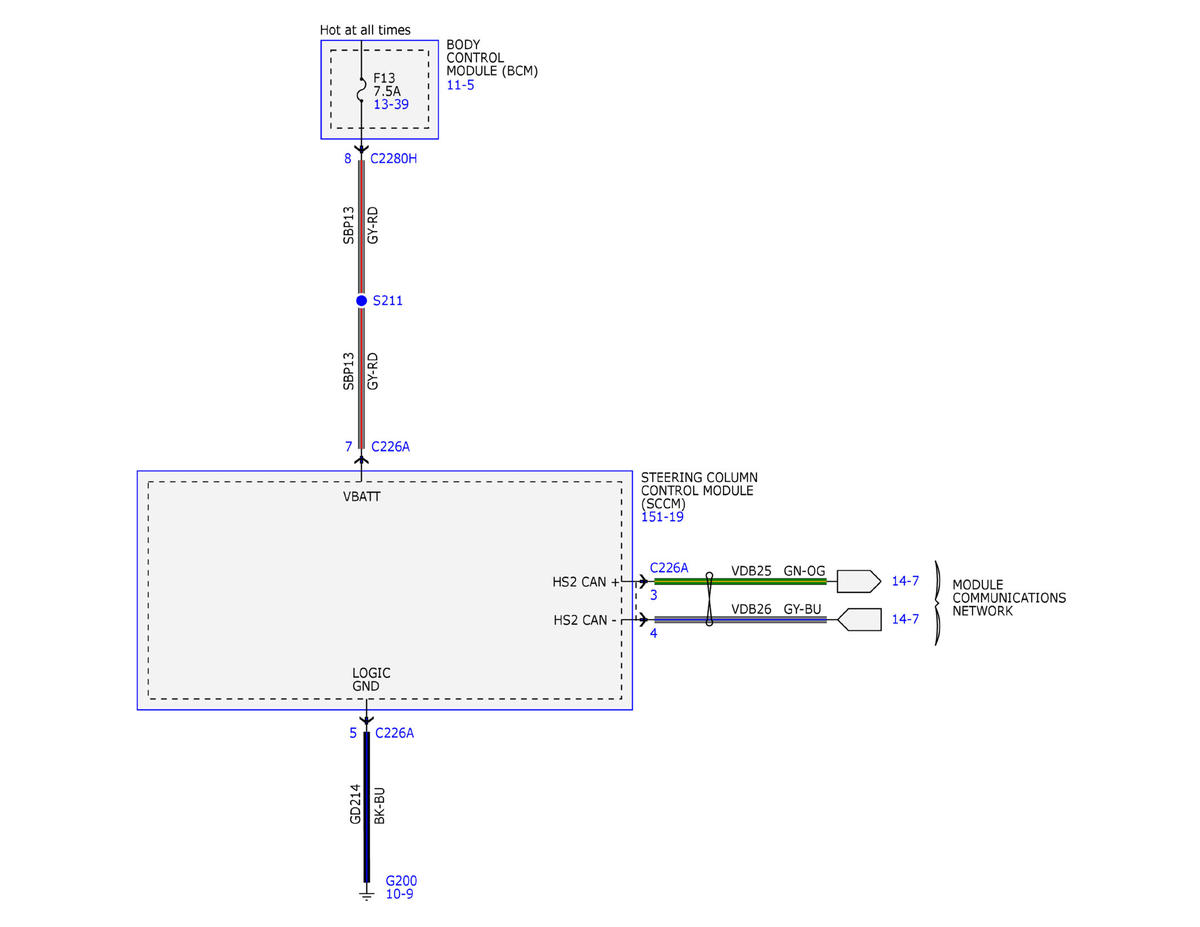

Fig 4: Cruise Control Wiring Diagram (4 Of 8)
GFDWR108698Courtesy of FORD MOTOR COMPANY

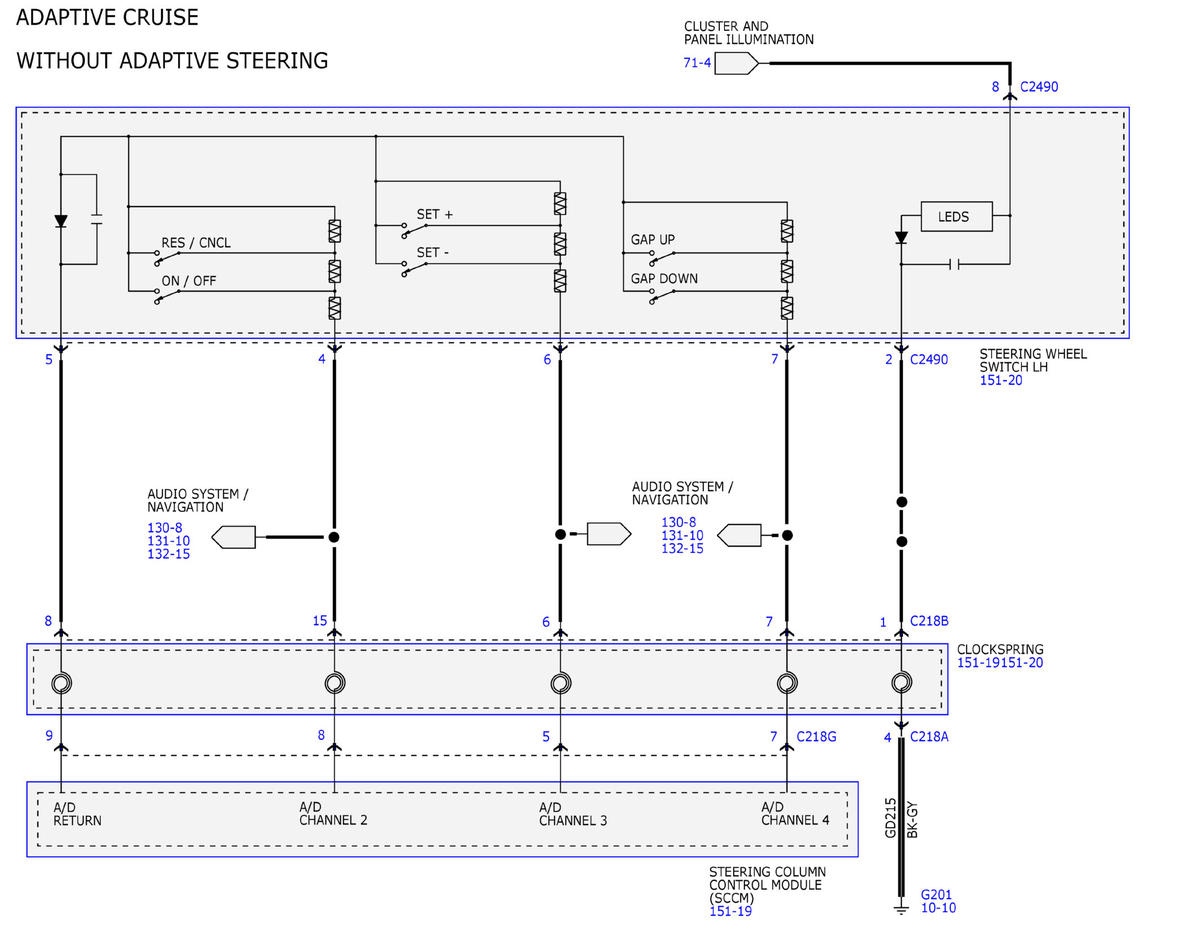

Fig 5: Cruise Control Wiring Diagram (5 Of 8)
GFDWR108699Courtesy of FORD MOTOR COMPANY

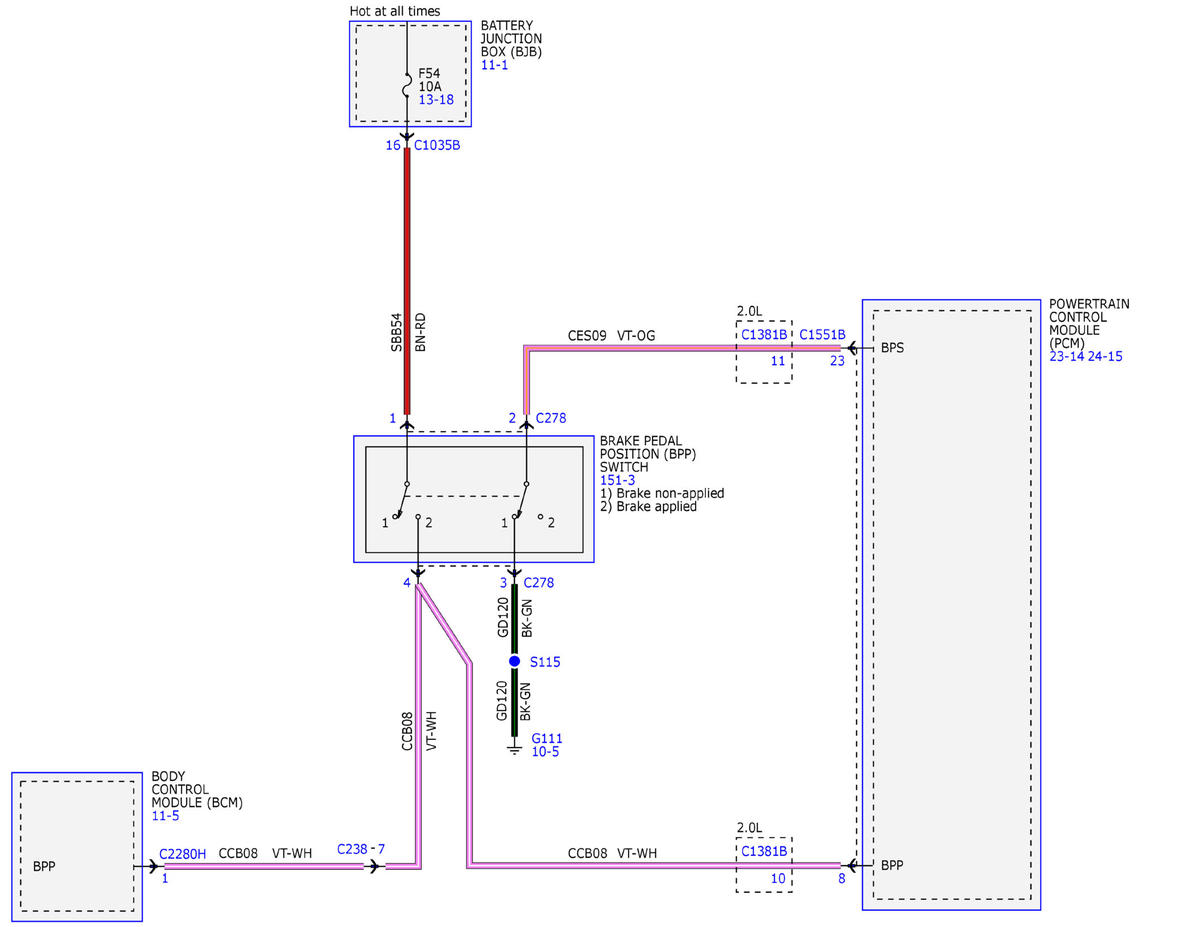

Fig 6: Cruise Control Wiring Diagram (6 Of 8)
GFDWR108700Courtesy of FORD MOTOR COMPANY

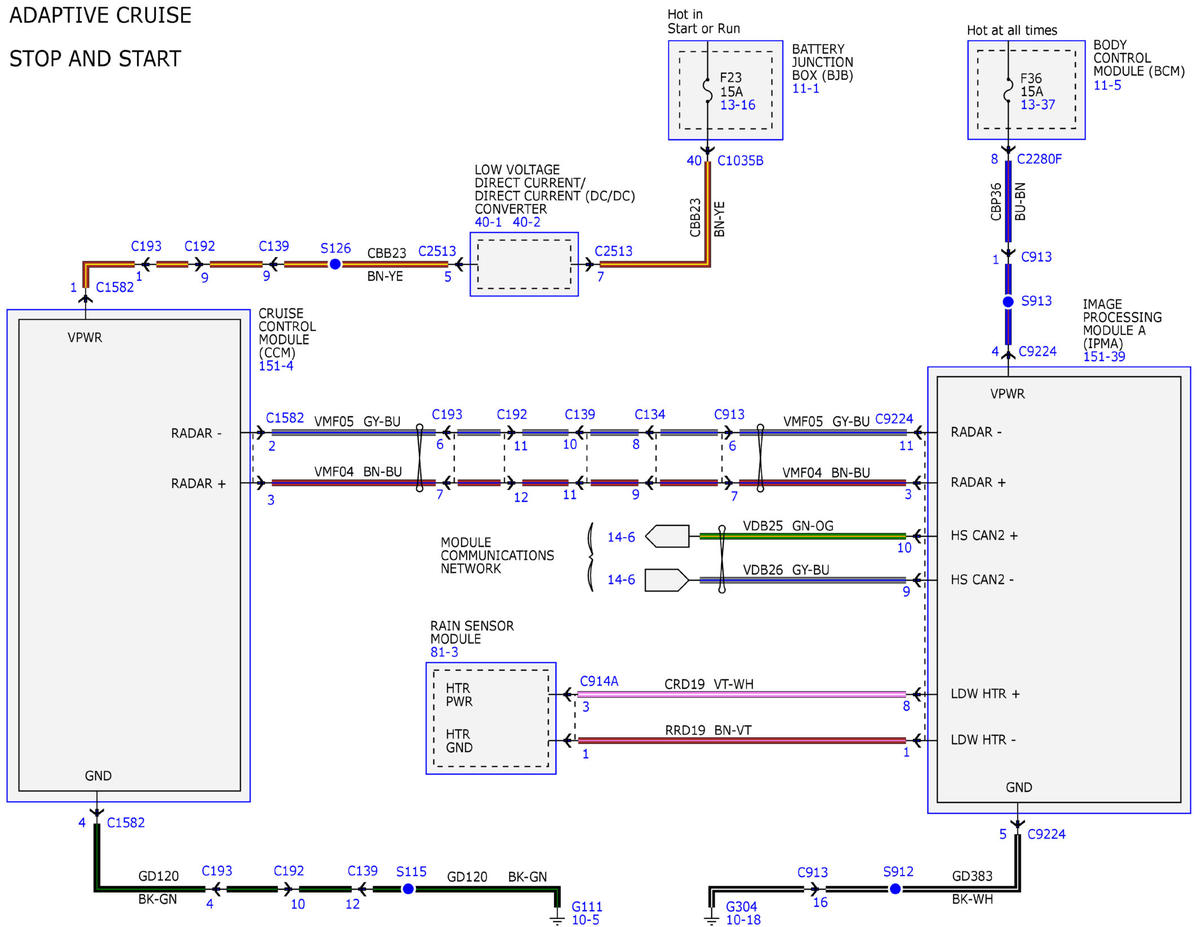

Fig 7: Cruise Control Wiring Diagram (7 Of 8)
GFDWR108701Courtesy of FORD MOTOR COMPANY

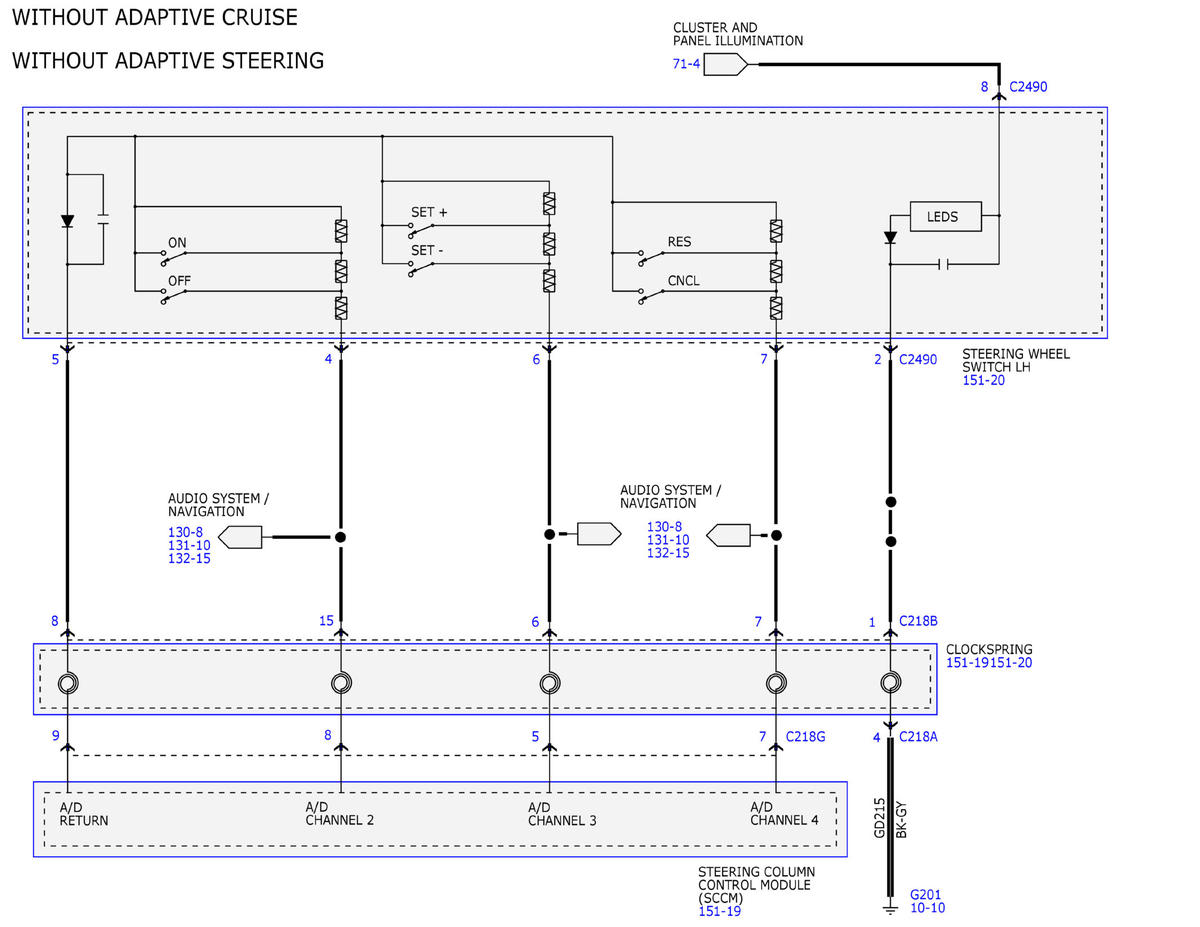

Fig 8: Cruise Control Wiring Diagram (8 Of 8)
GFDWR108702Courtesy of FORD MOTOR COMPANY
