Cluster And Panel Illumination

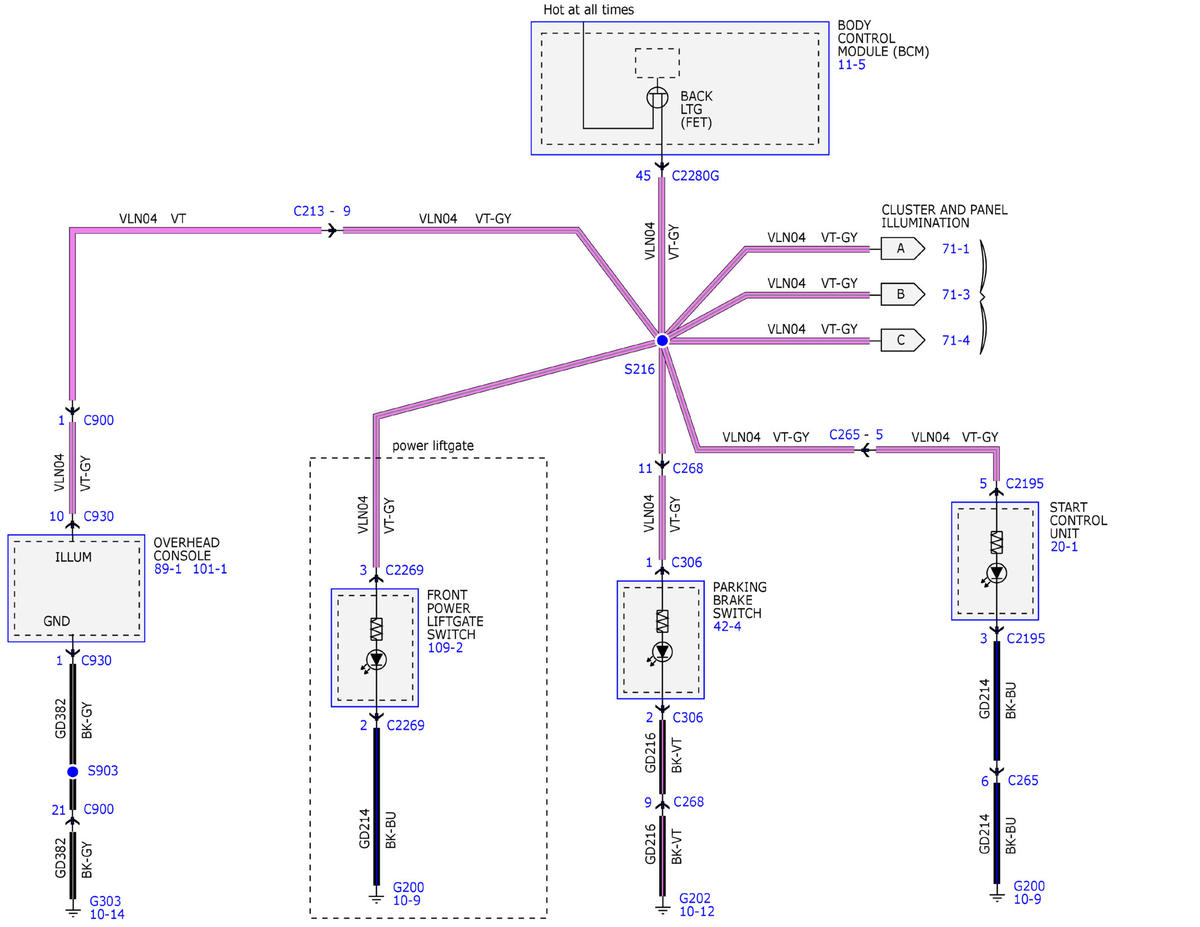

Fig 1: Cluster And Panel Illumination Wiring Diagram (1 Of 5)
GFDWR108686Courtesy of FORD MOTOR COMPANY

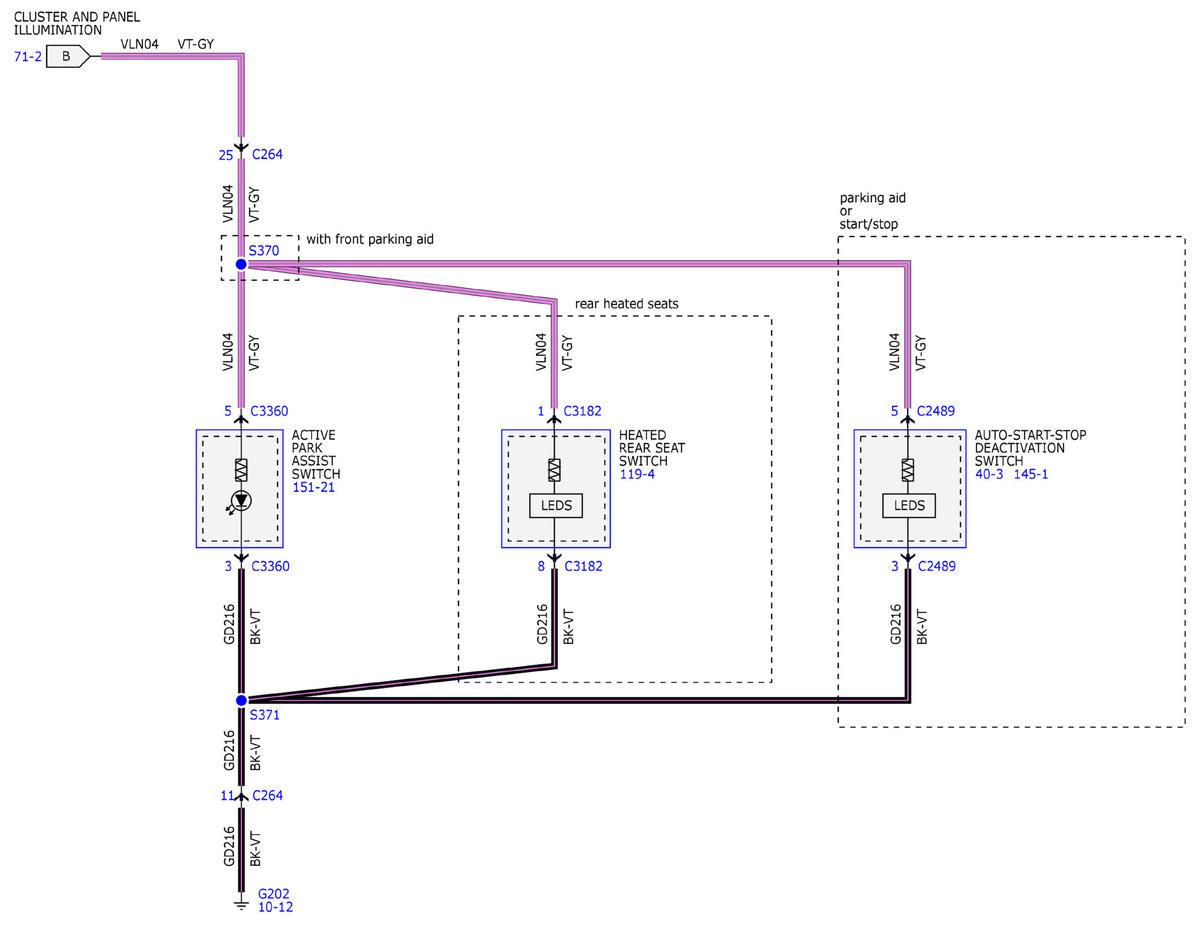

Fig 2: Cluster And Panel Illumination Wiring Diagram (2 Of 5)
GFDWR108687Courtesy of FORD MOTOR COMPANY

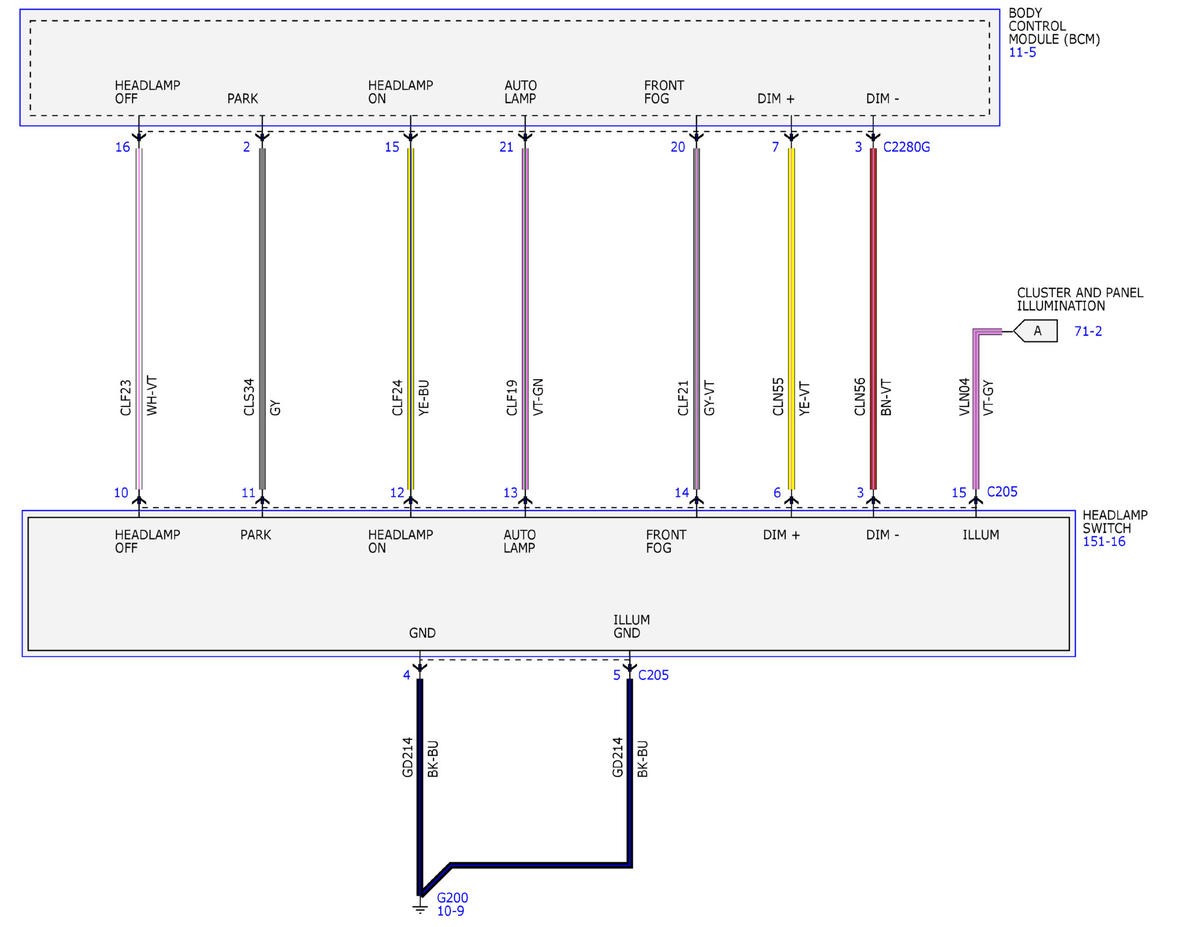

Fig 3: Cluster And Panel Illumination Wiring Diagram (3 Of 5)
GFDWR108688Courtesy of FORD MOTOR COMPANY

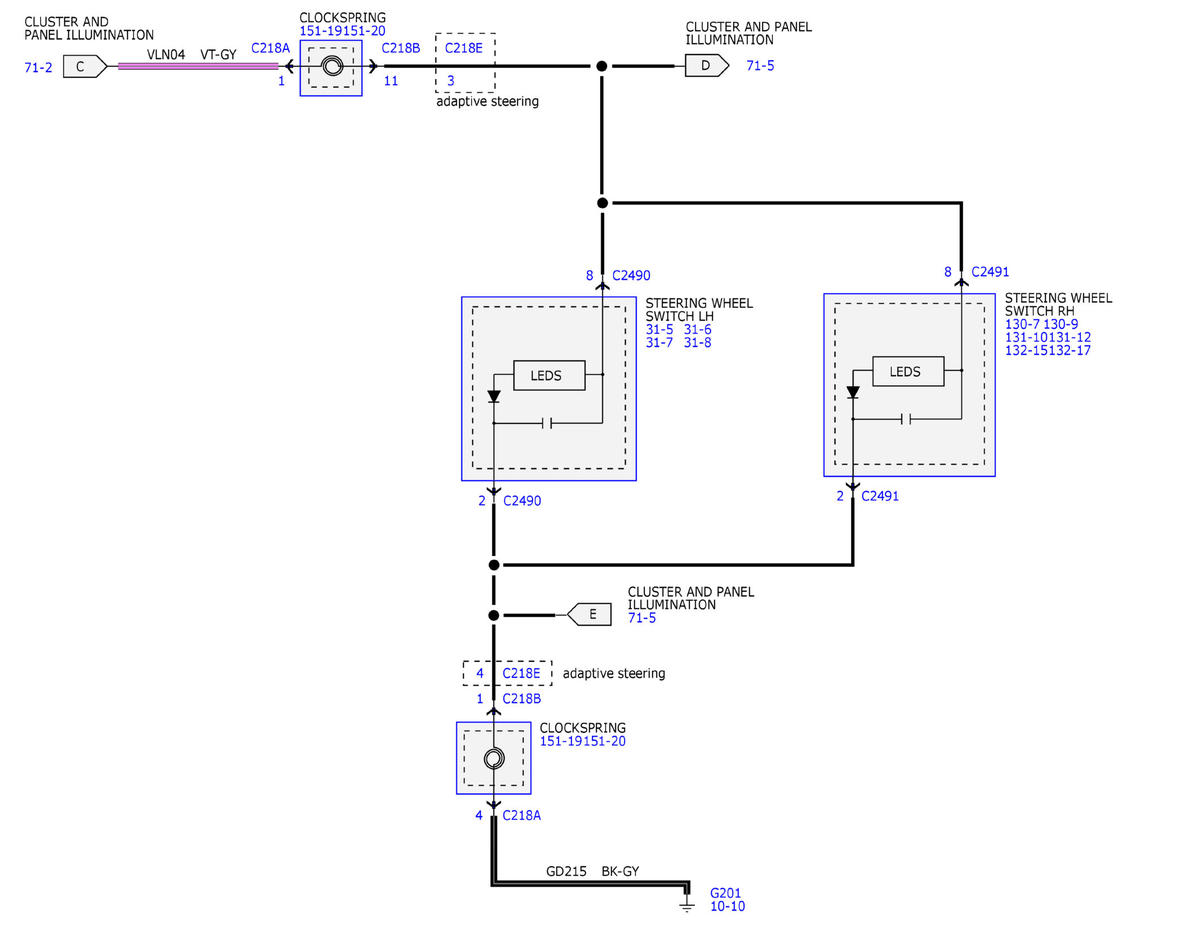

Fig 4: Cluster And Panel Illumination Wiring Diagram (4 Of 5)
GFDWR108689Courtesy of FORD MOTOR COMPANY

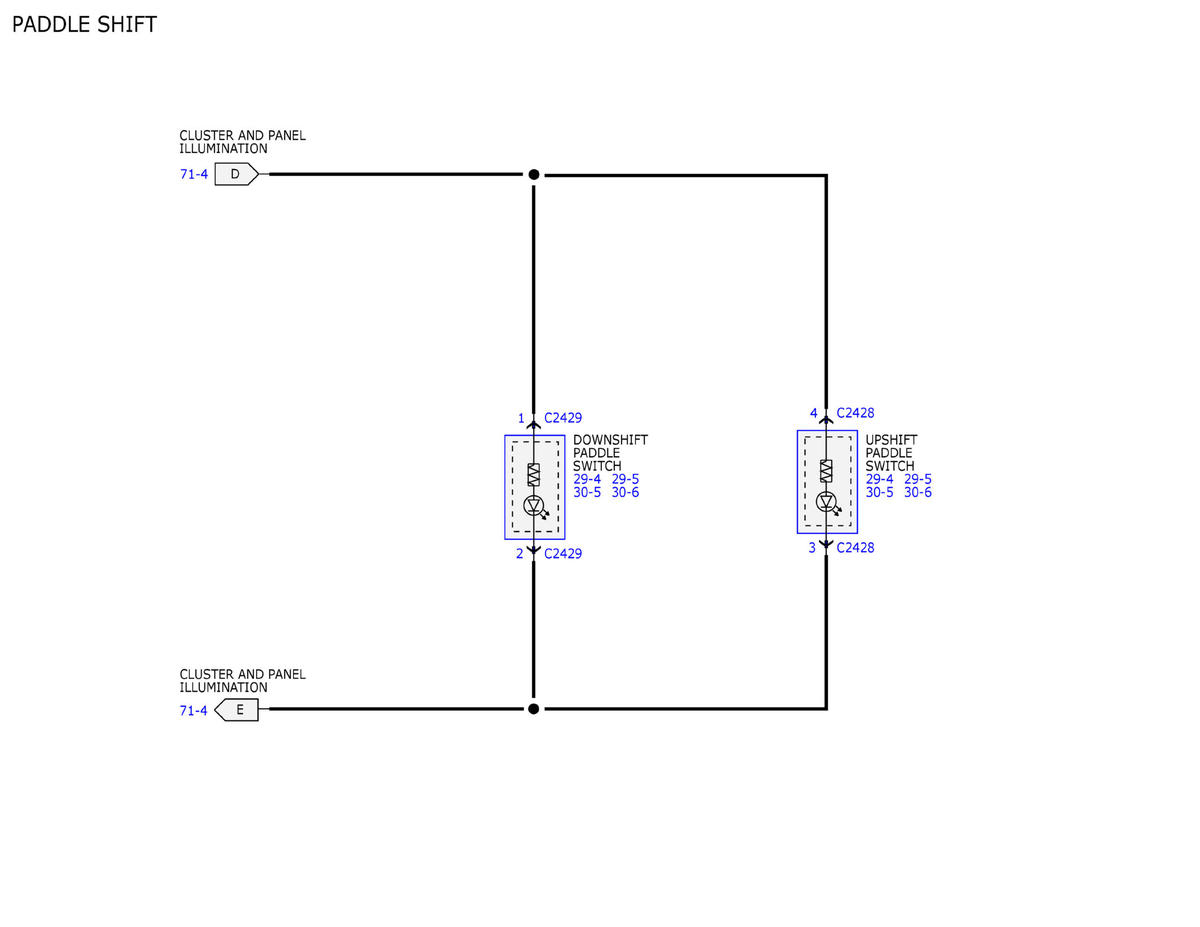

Fig 5: Cluster And Panel Illumination Wiring Diagram (5 Of 5)
GFDWR108690Courtesy of FORD MOTOR COMPANY
