Climate Controlled Seats

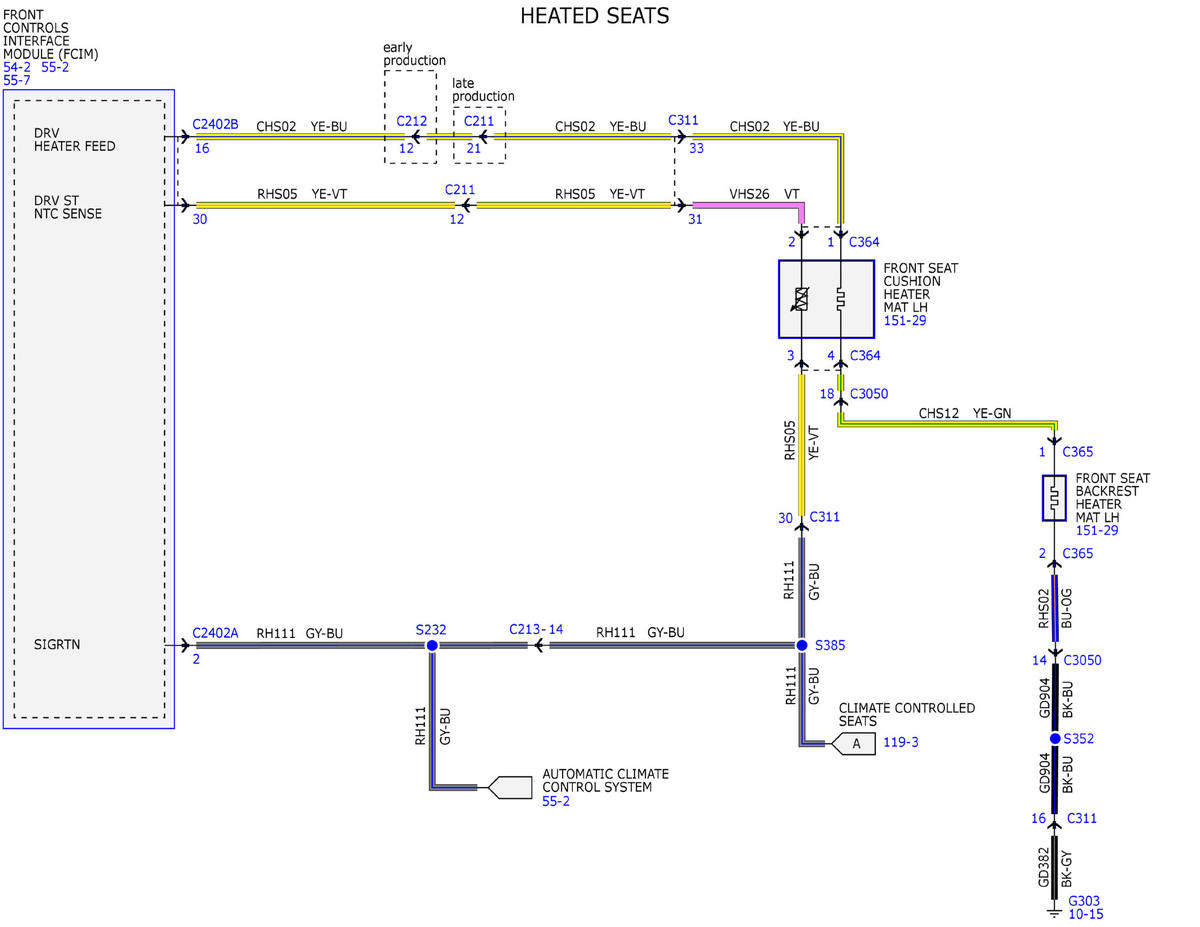

Fig 1: Climate Controlled Seats Wiring Diagram (1 Of 9)
GFDWR108677Courtesy of FORD MOTOR COMPANY

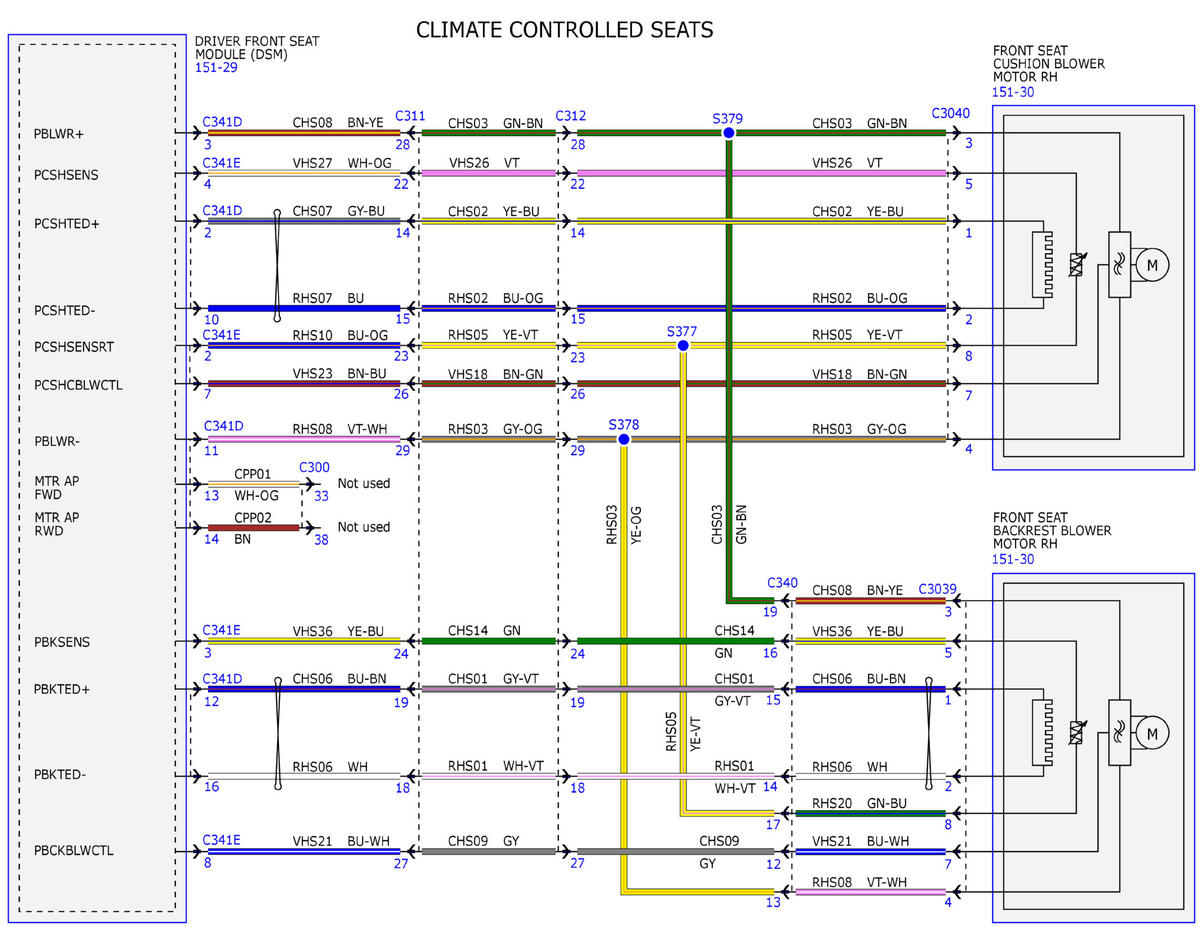

Fig 2: Climate Controlled Seats Wiring Diagram (2 Of 9)
GFDWR108678Courtesy of FORD MOTOR COMPANY

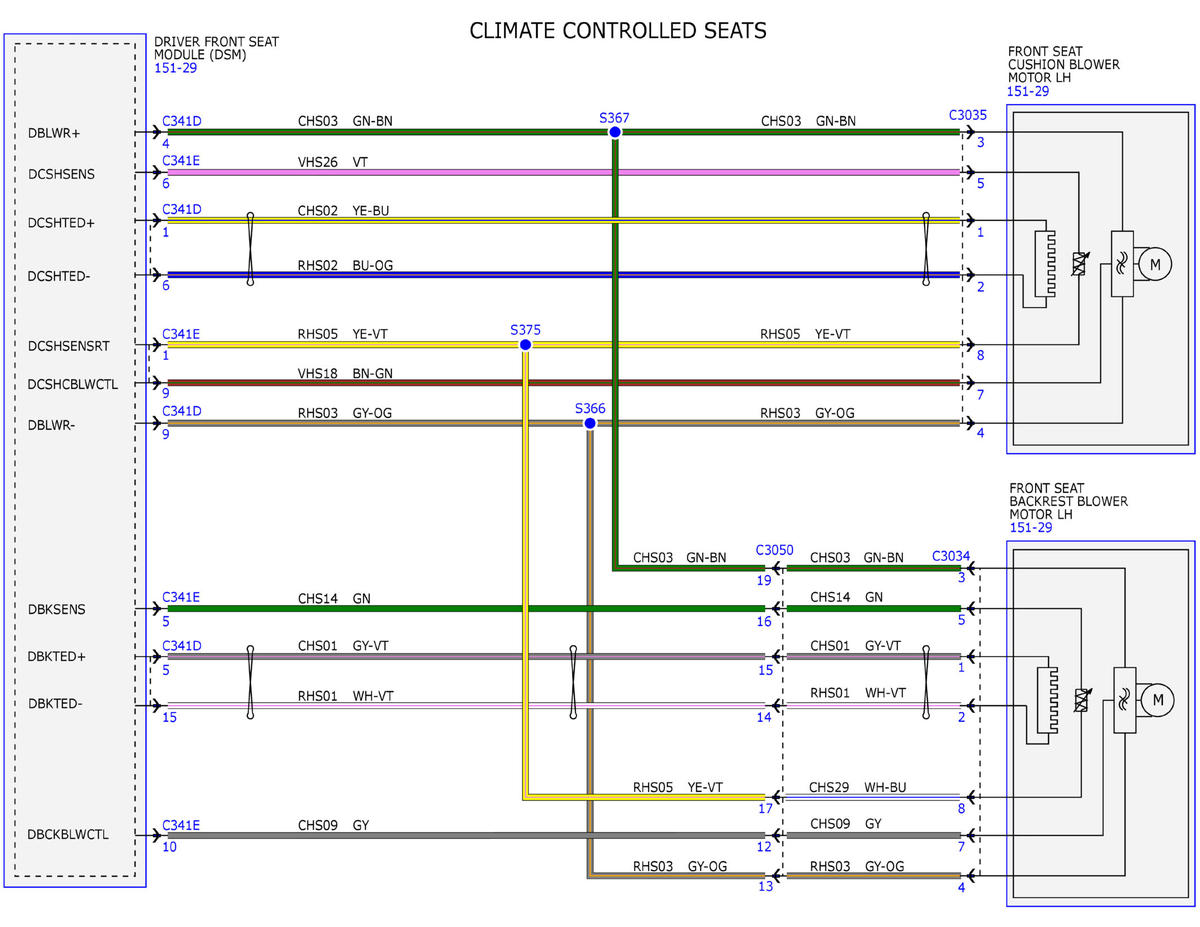

Fig 3: Climate Controlled Seats Wiring Diagram (3 Of 9)
GFDWR108679Courtesy of FORD MOTOR COMPANY

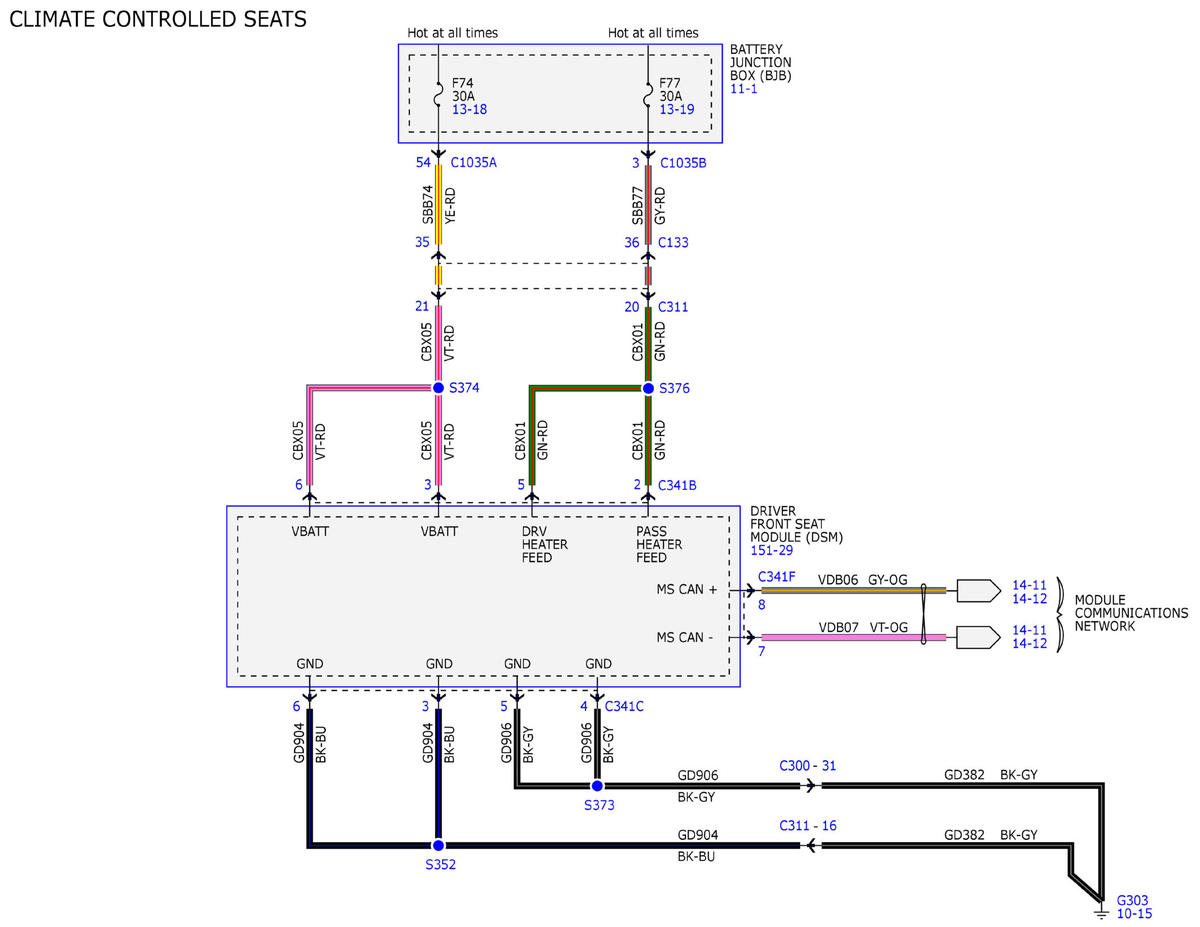

Fig 4: Climate Controlled Seats Wiring Diagram (4 Of 9)
GFDWR108680Courtesy of FORD MOTOR COMPANY

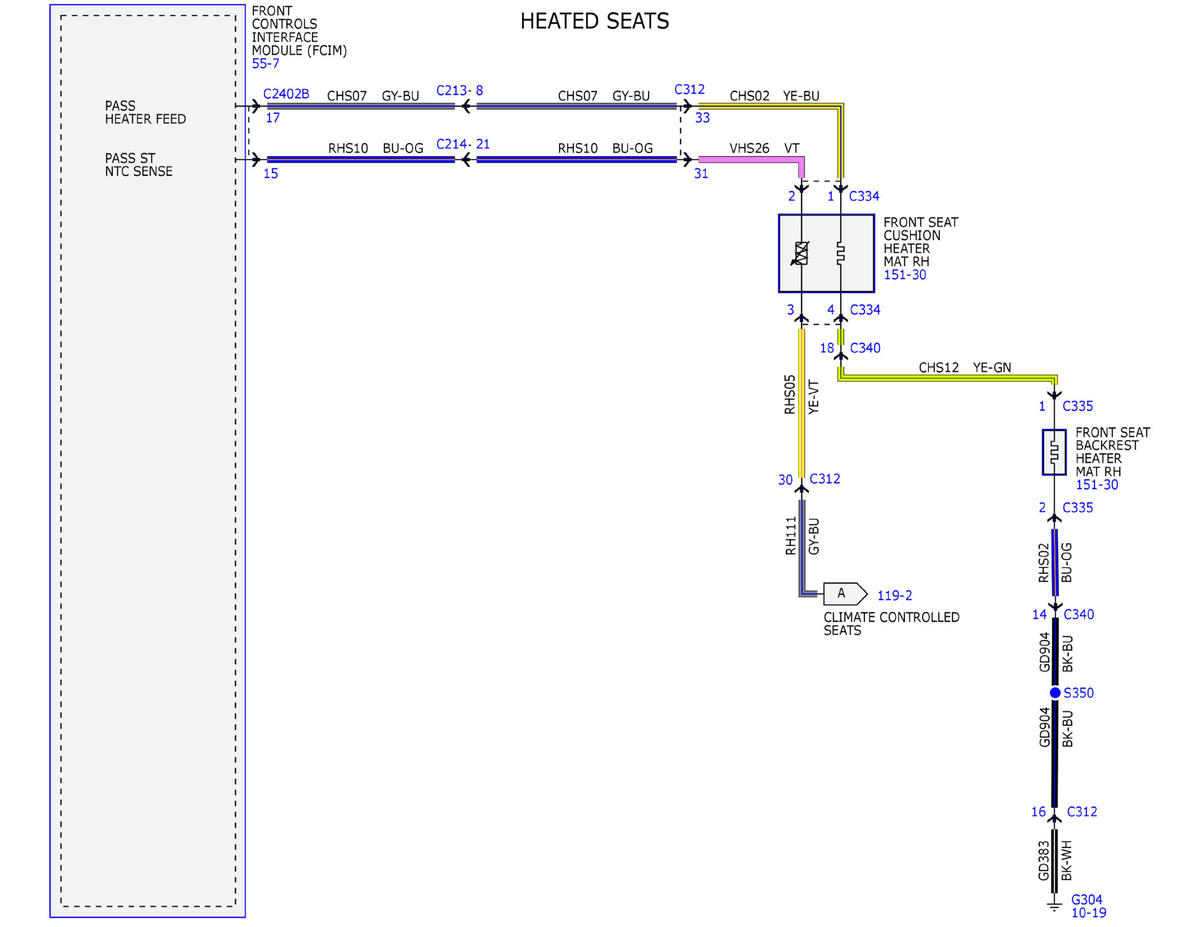

Fig 5: Climate Controlled Seats Wiring Diagram (5 Of 9)
GFDWR108681Courtesy of FORD MOTOR COMPANY

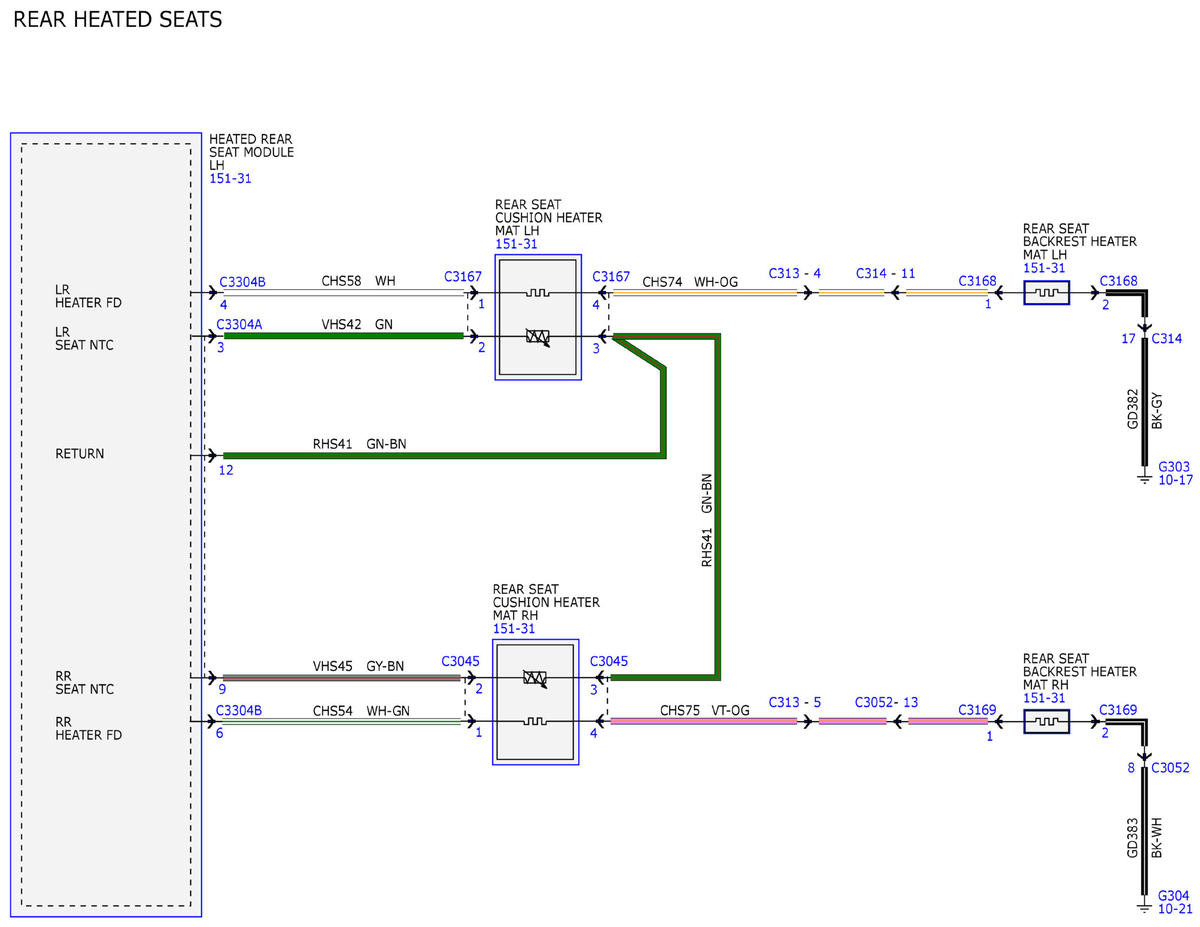

Fig 6: Climate Controlled Seats Wiring Diagram (6 Of 9)
GFDWR108682Courtesy of FORD MOTOR COMPANY

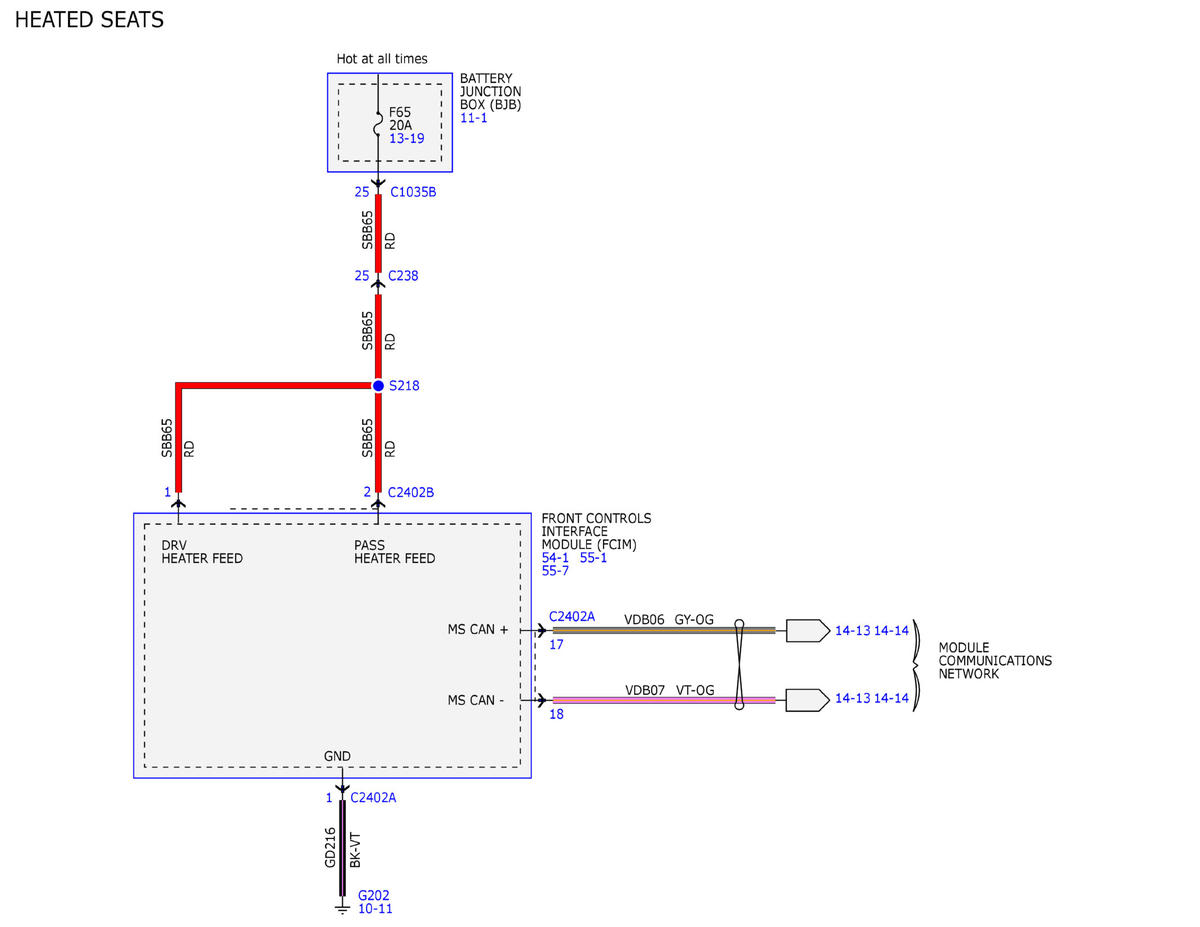

Fig 7: Climate Controlled Seats Wiring Diagram (7 Of 9)
GFDWR108683Courtesy of FORD MOTOR COMPANY

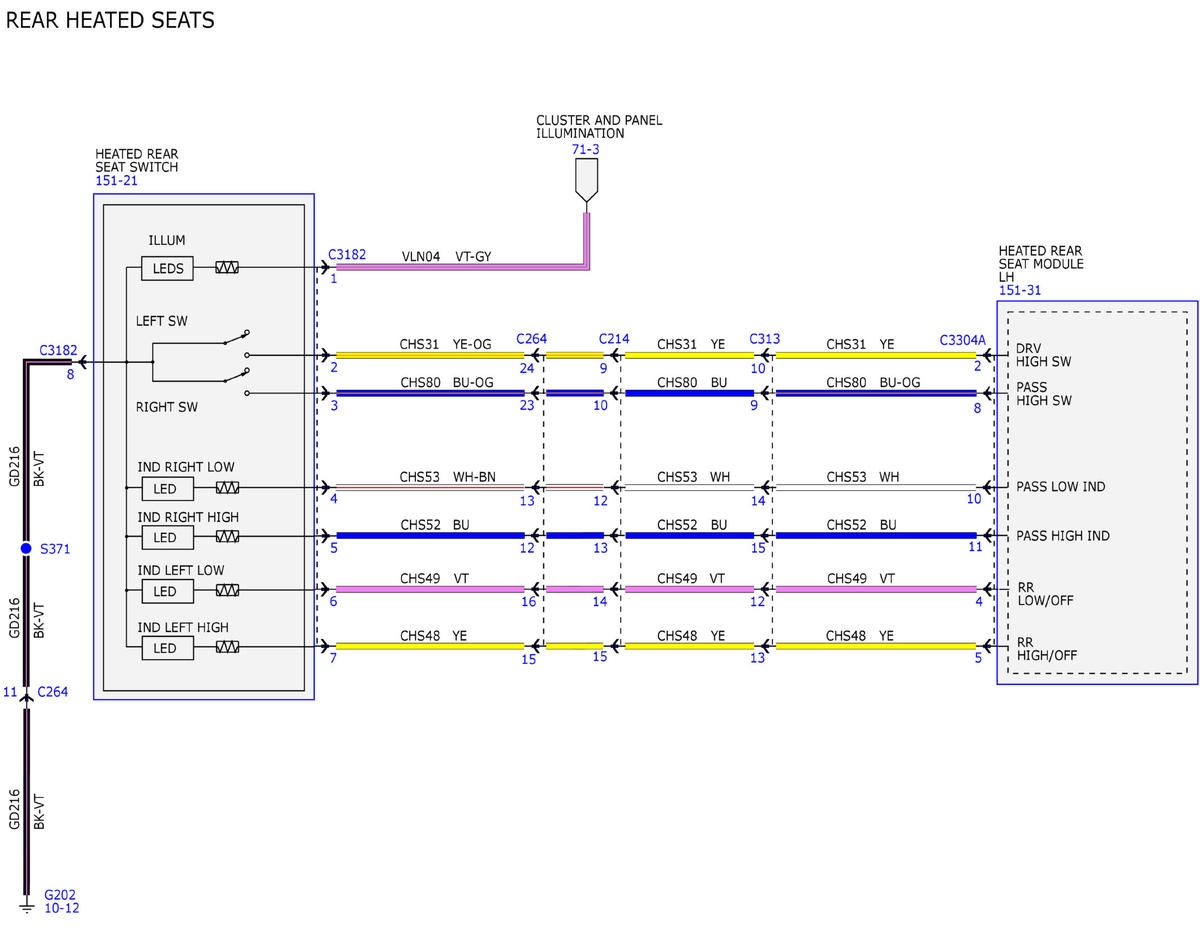

Fig 8: Climate Controlled Seats Wiring Diagram (8 Of 9)
GFDWR108684Courtesy of FORD MOTOR COMPANY

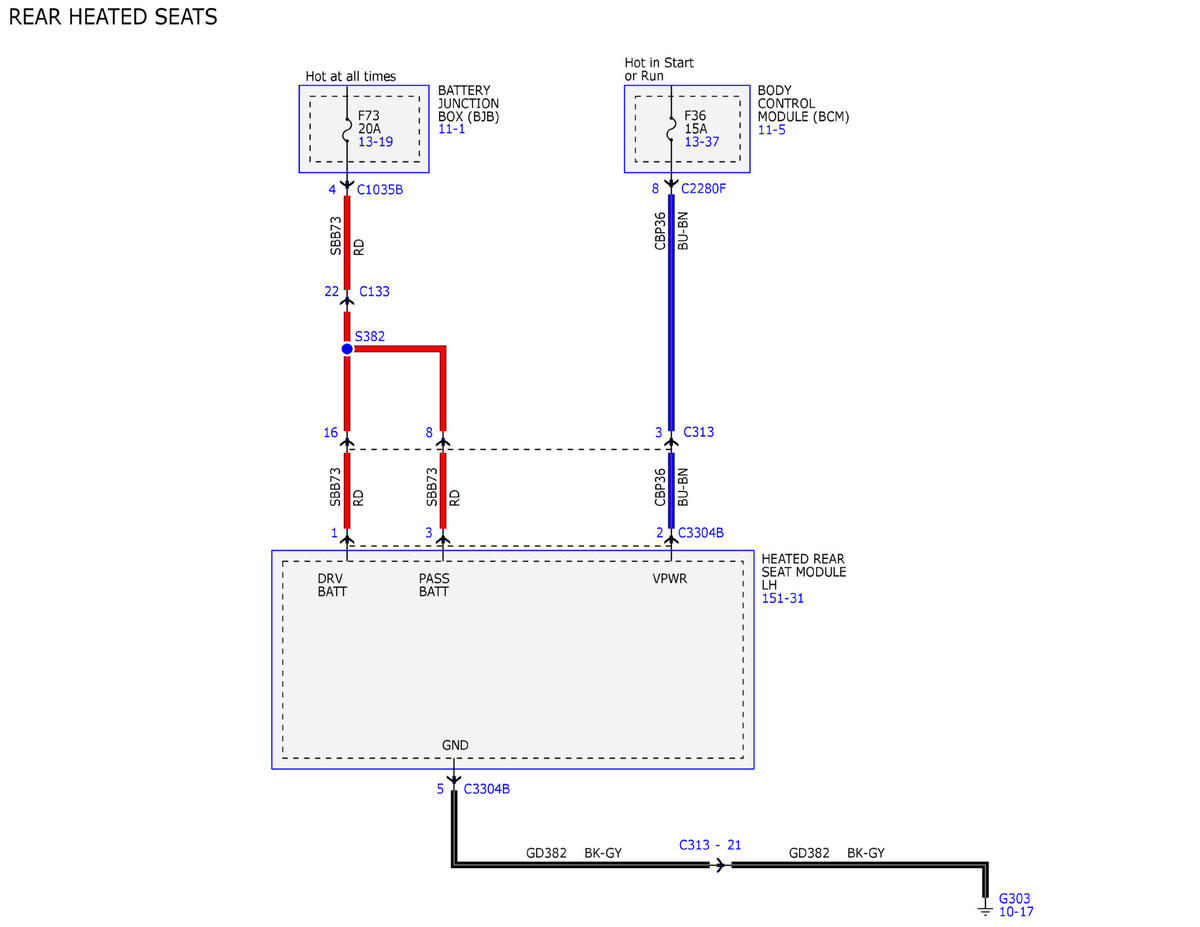

Fig 9: Climate Controlled Seats Wiring Diagram (9 Of 9)
GFDWR108685Courtesy of FORD MOTOR COMPANY
