Audio System/Navigation - Bang & OLUFSEN Audio System

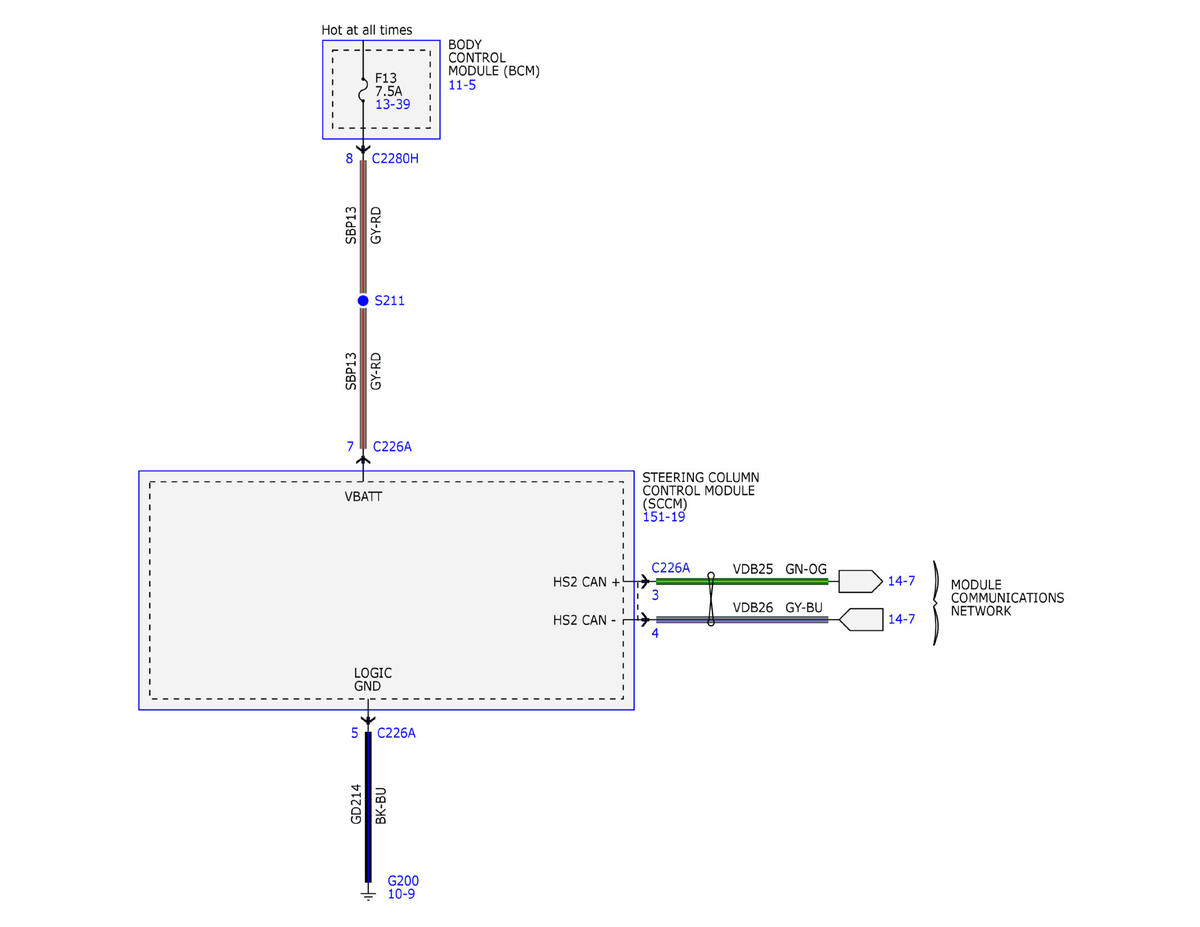

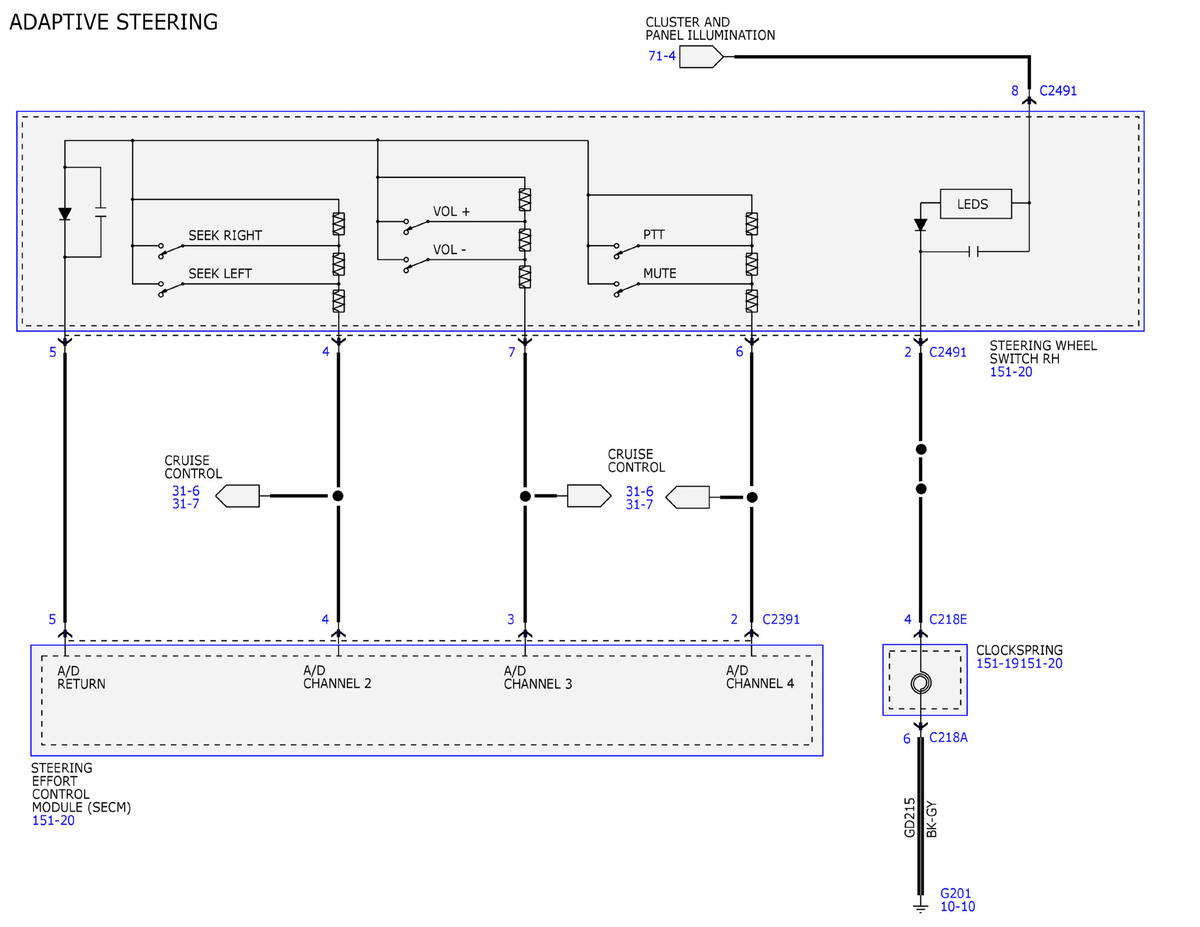

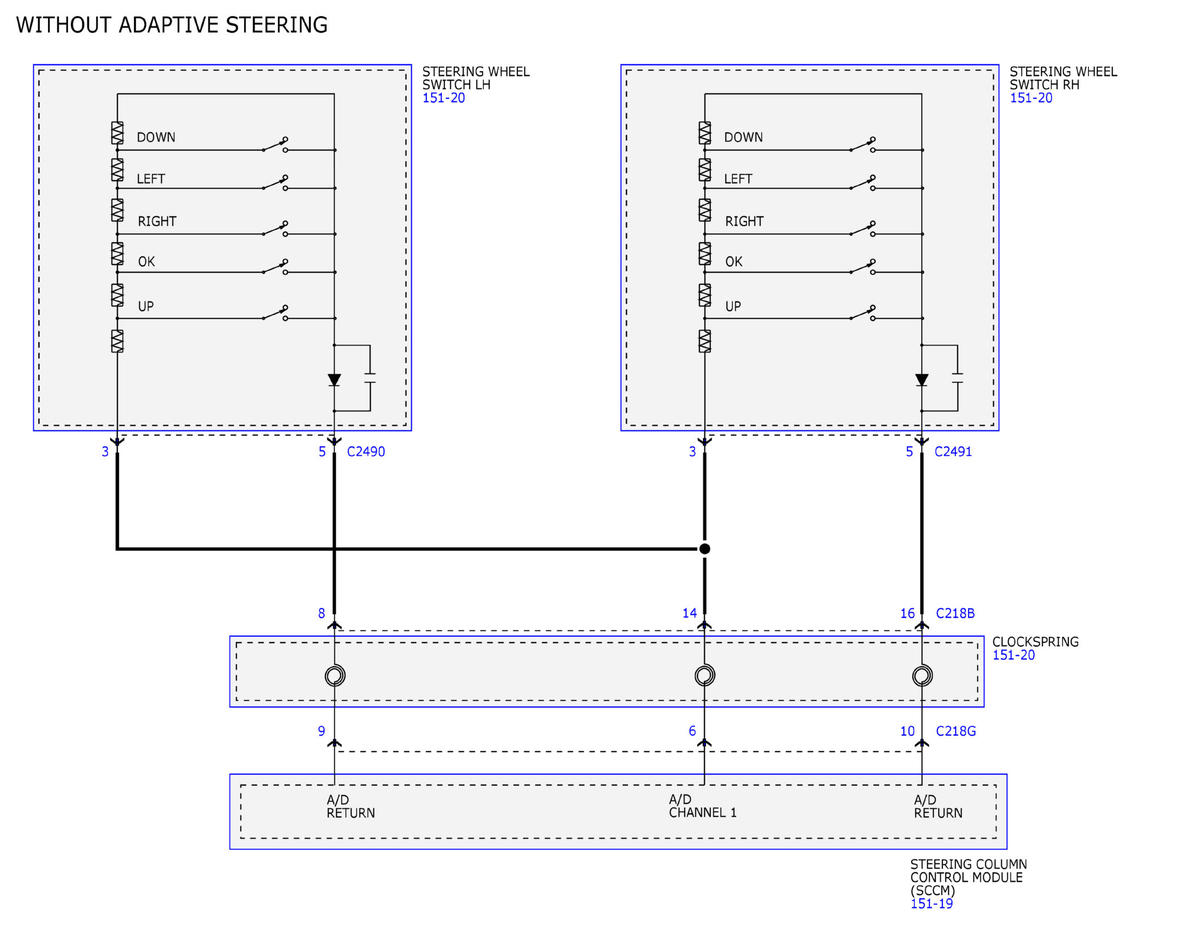

Fig 1: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (1 Of 17)

Courtesy of FORD MOTOR COMPANY

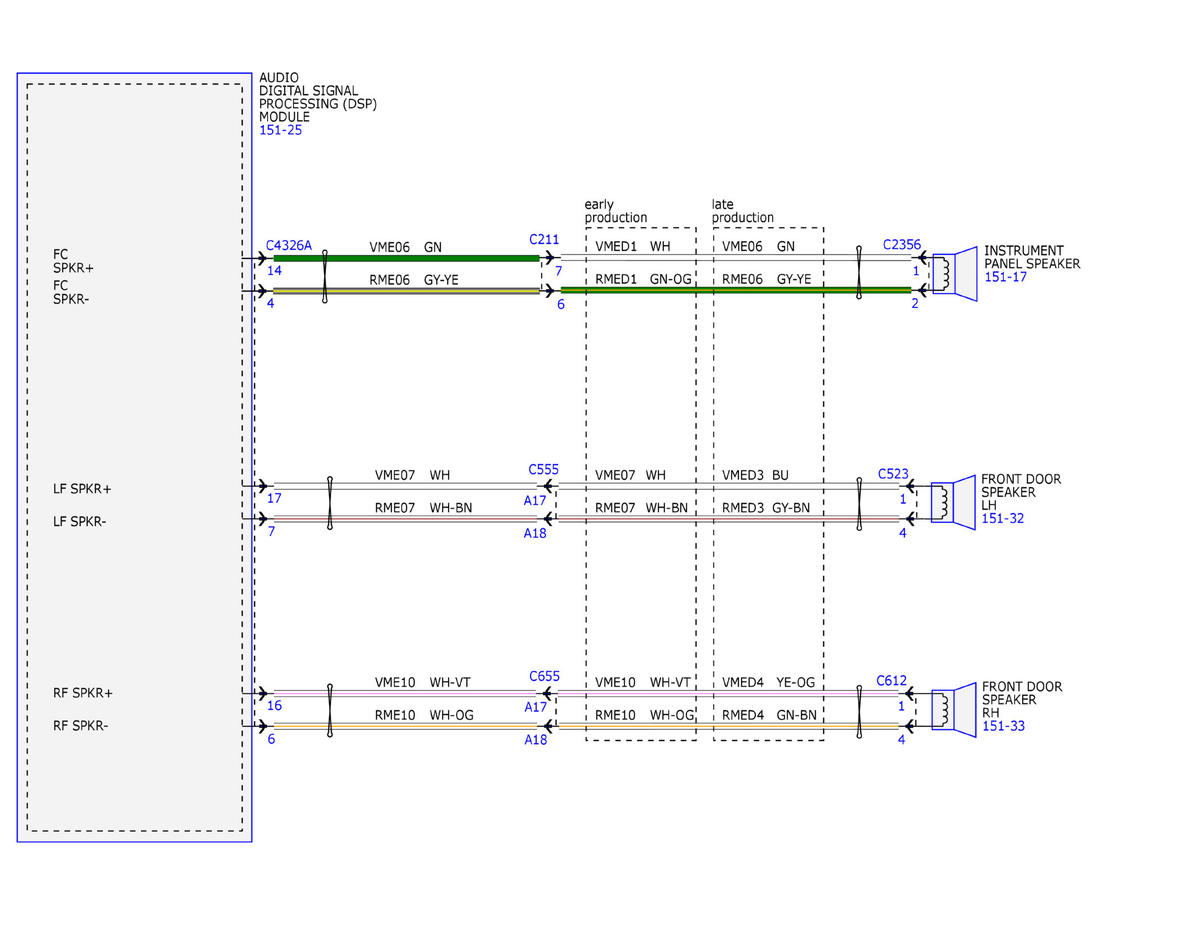

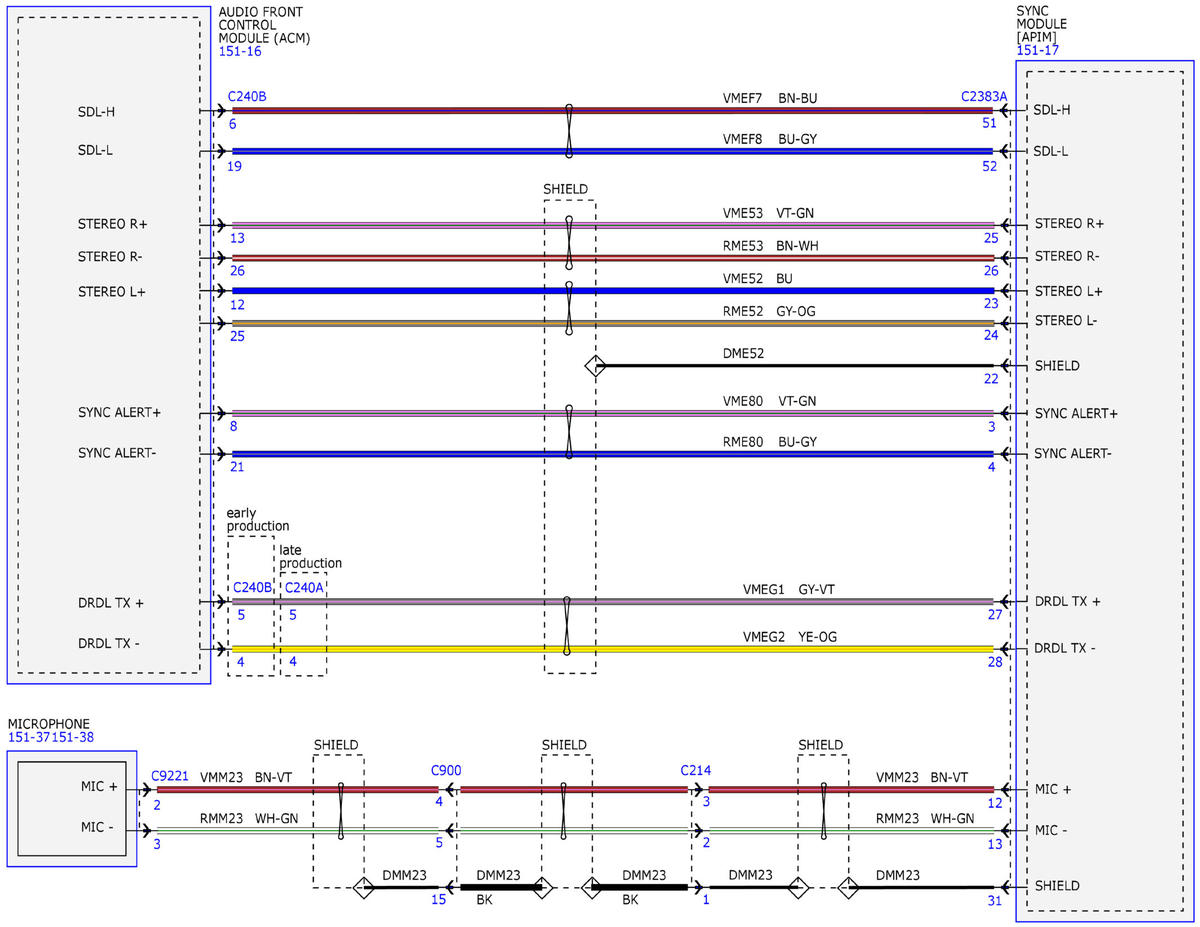

Fig 2: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (2 Of 17)

Courtesy of FORD MOTOR COMPANY

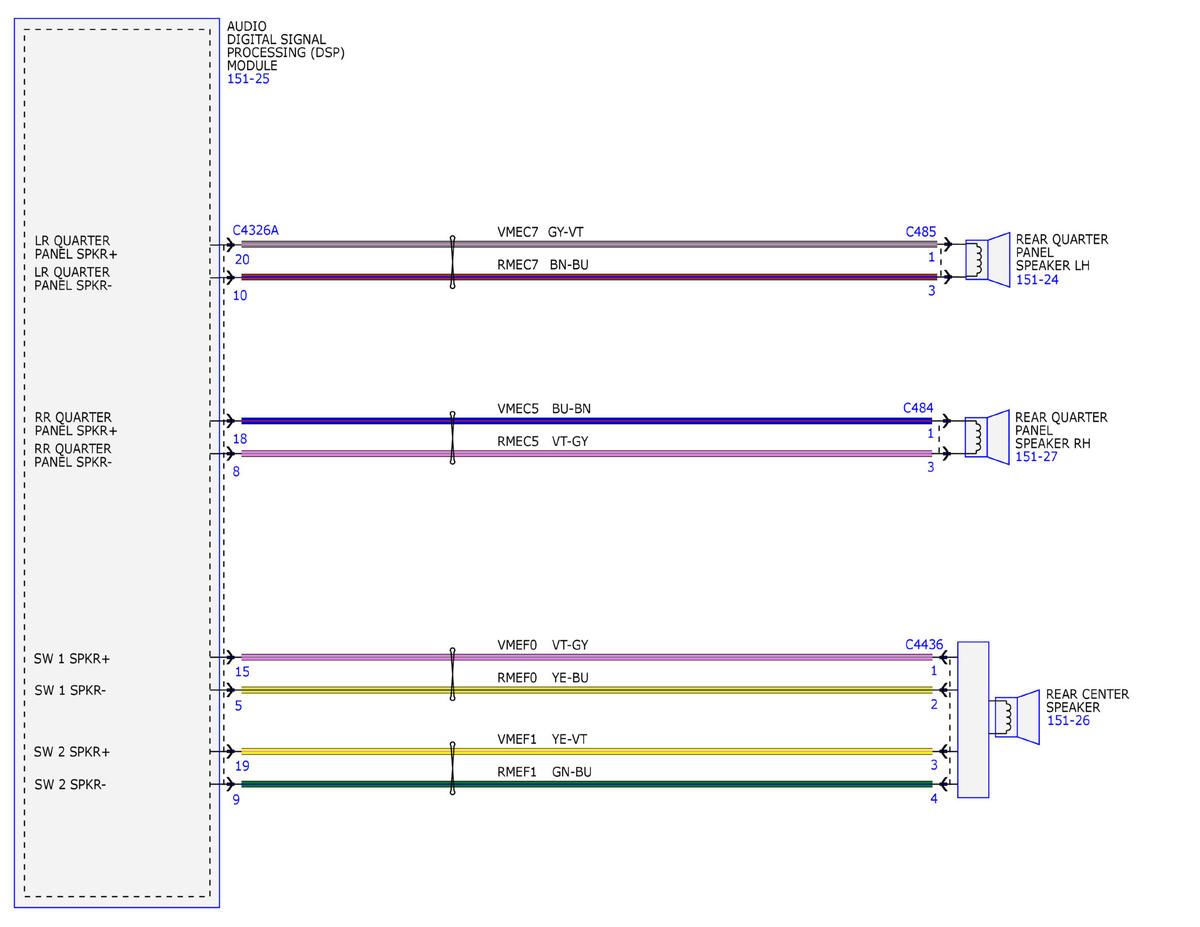

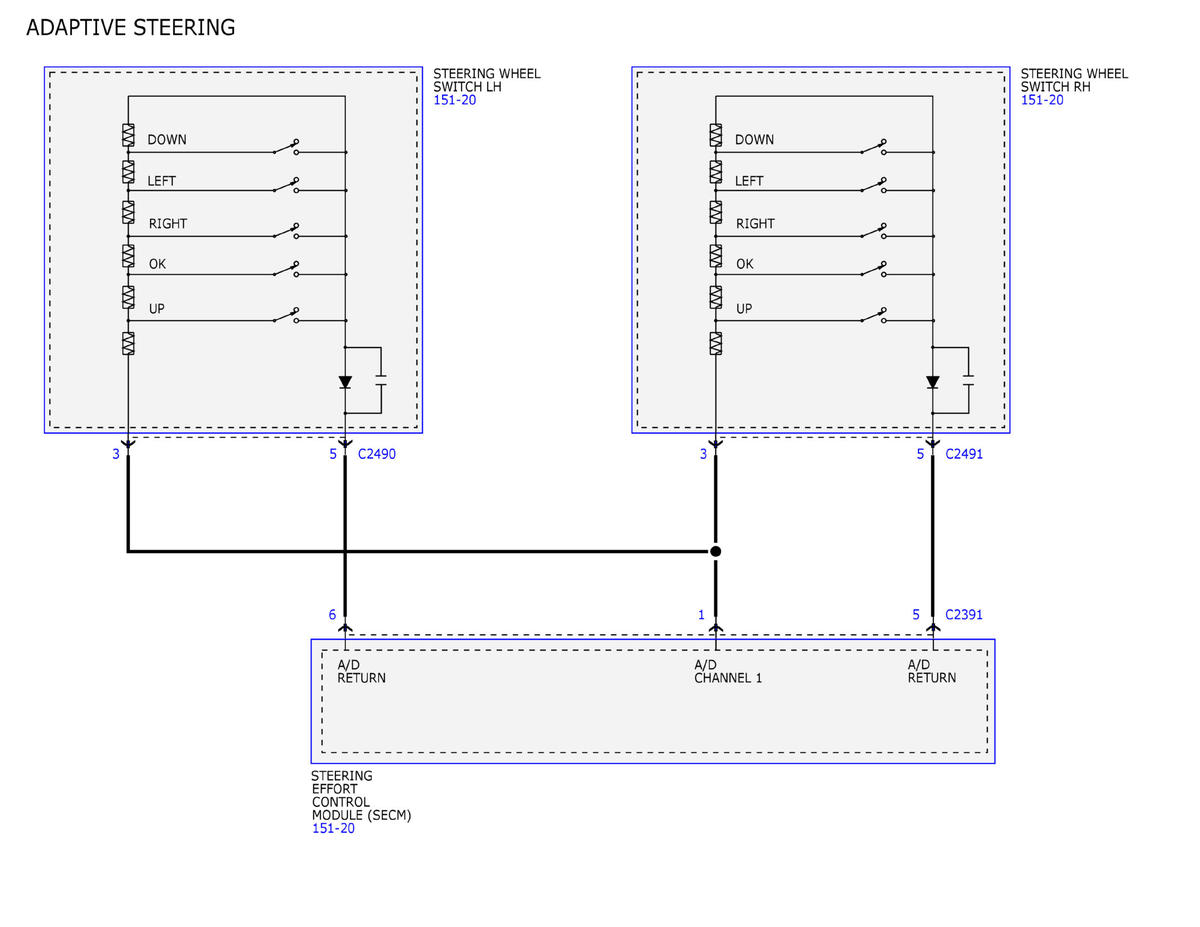

Fig 3: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (3 Of 17)

Courtesy of FORD MOTOR COMPANY

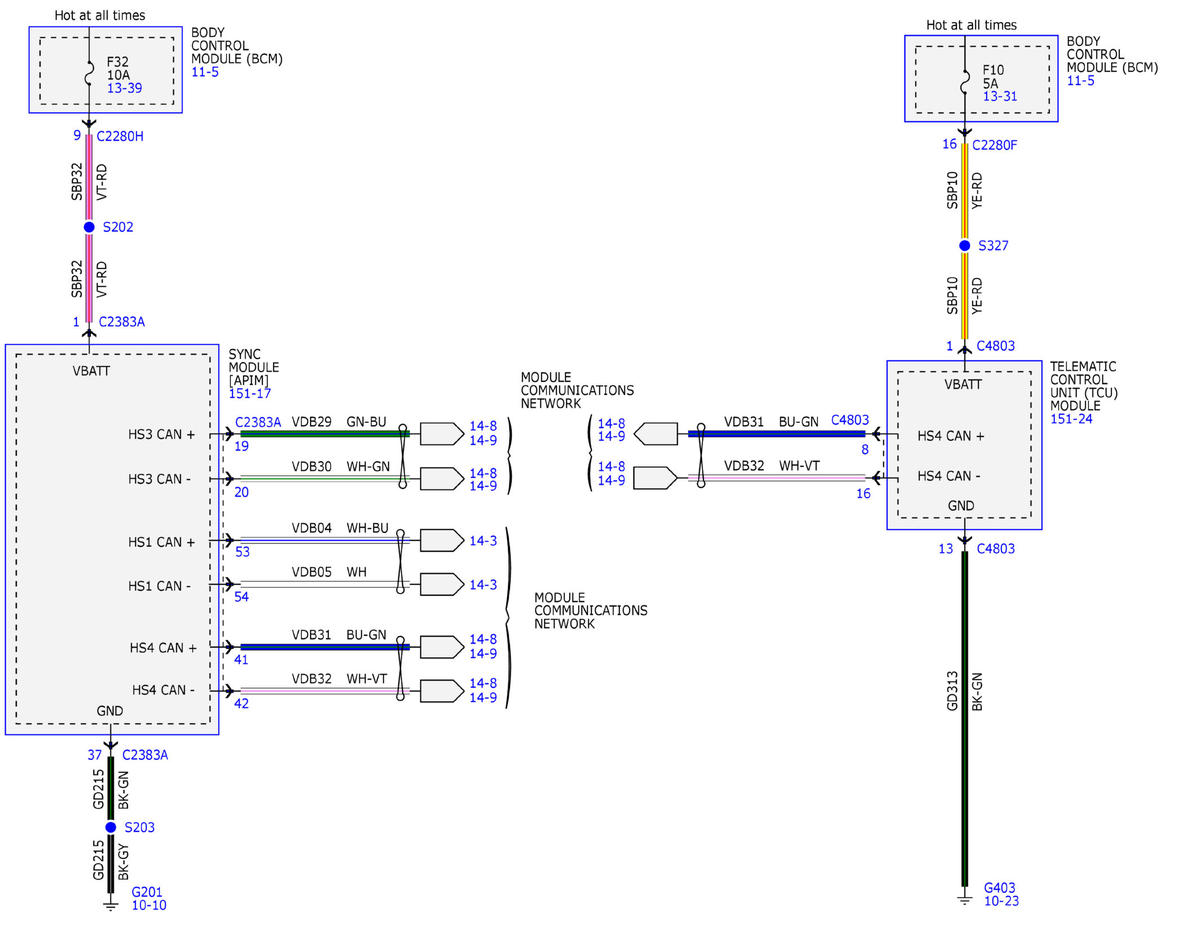

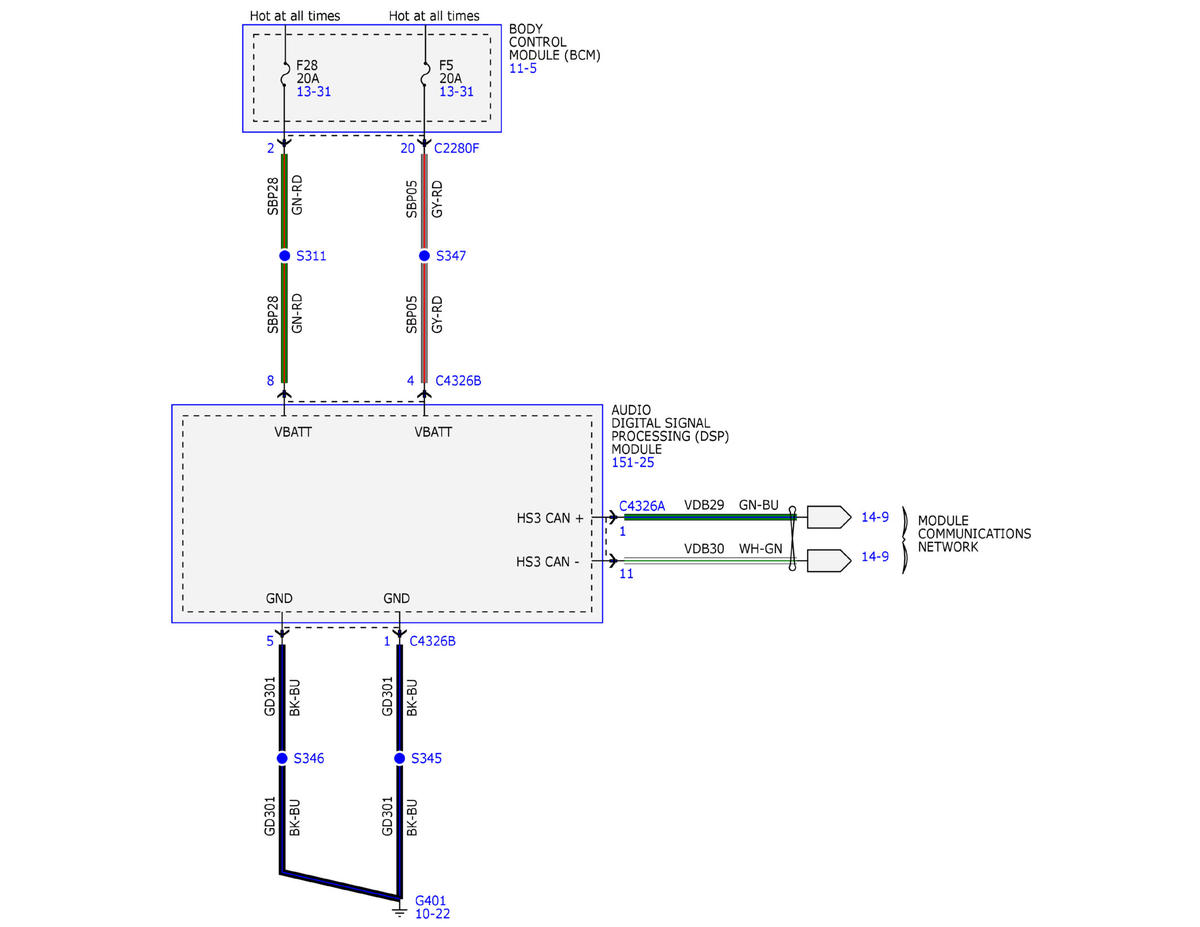

Fig 4: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (4 Of 17)

Courtesy of FORD MOTOR COMPANY

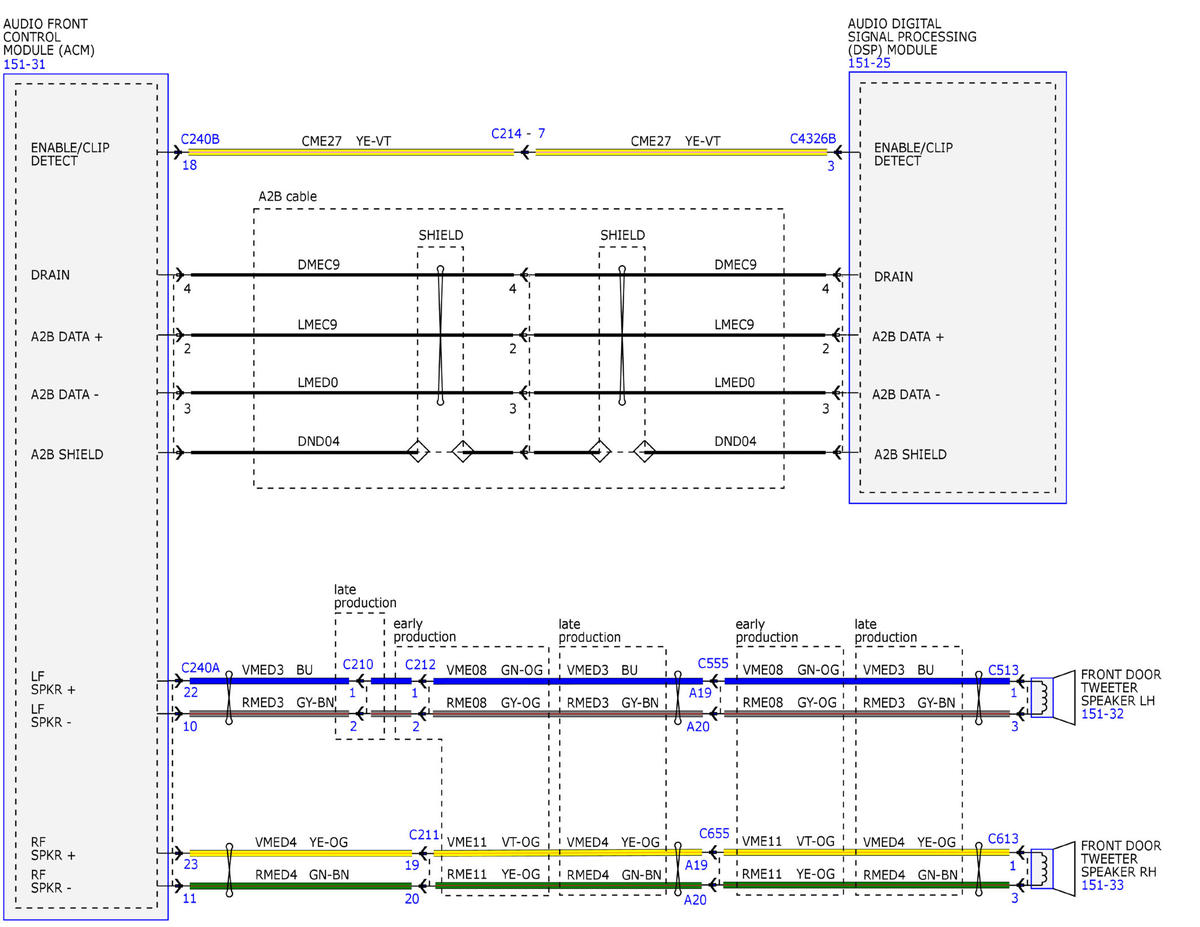

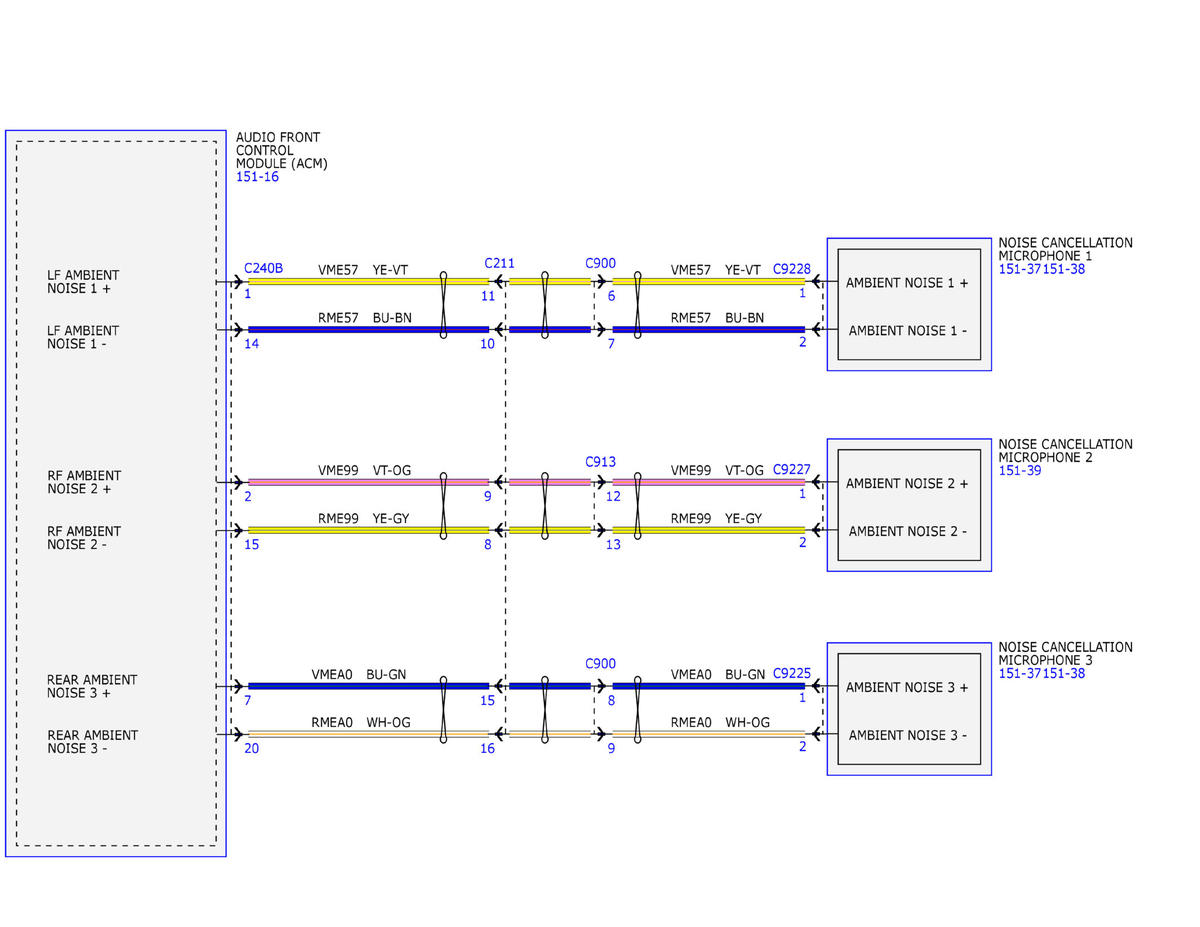

Fig 5: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (5 Of 17)

Courtesy of FORD MOTOR COMPANY

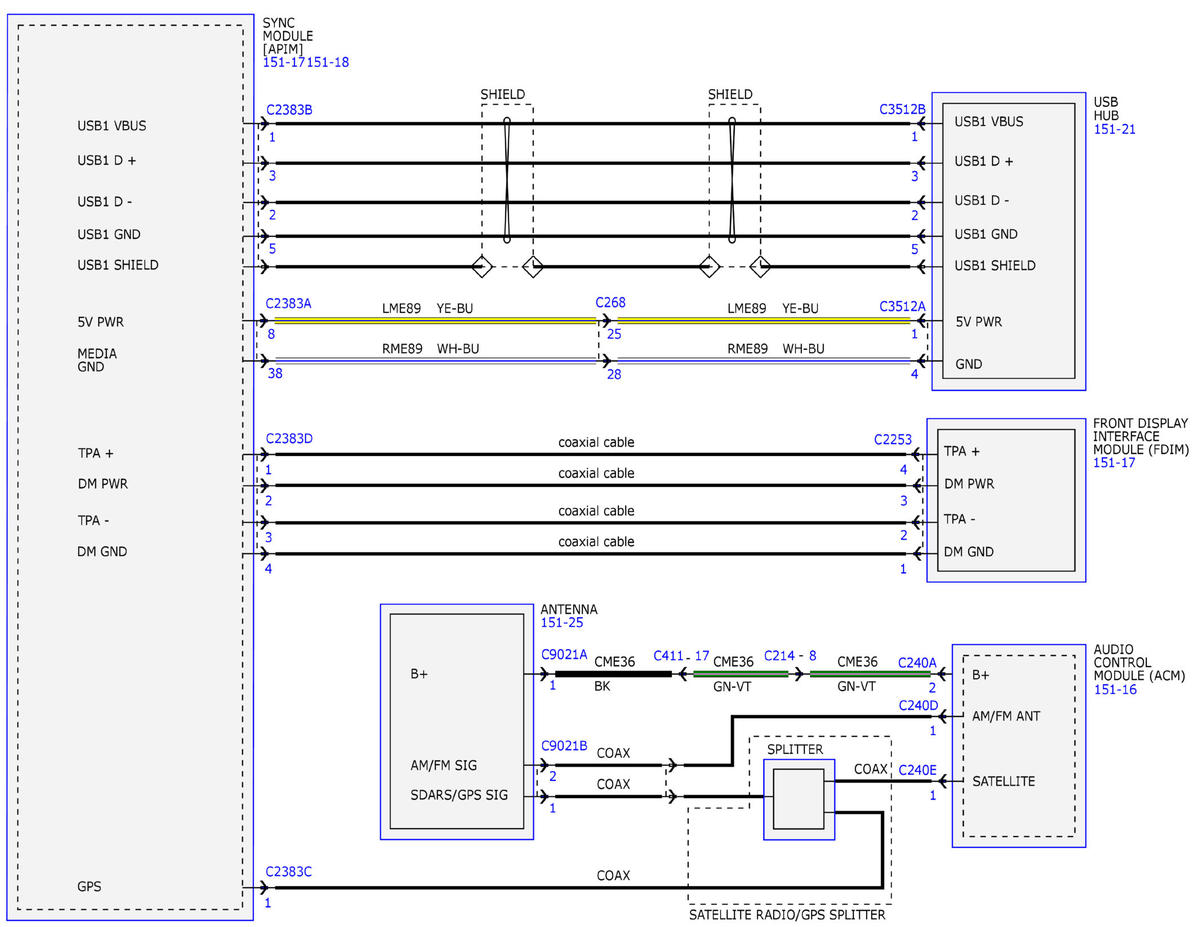

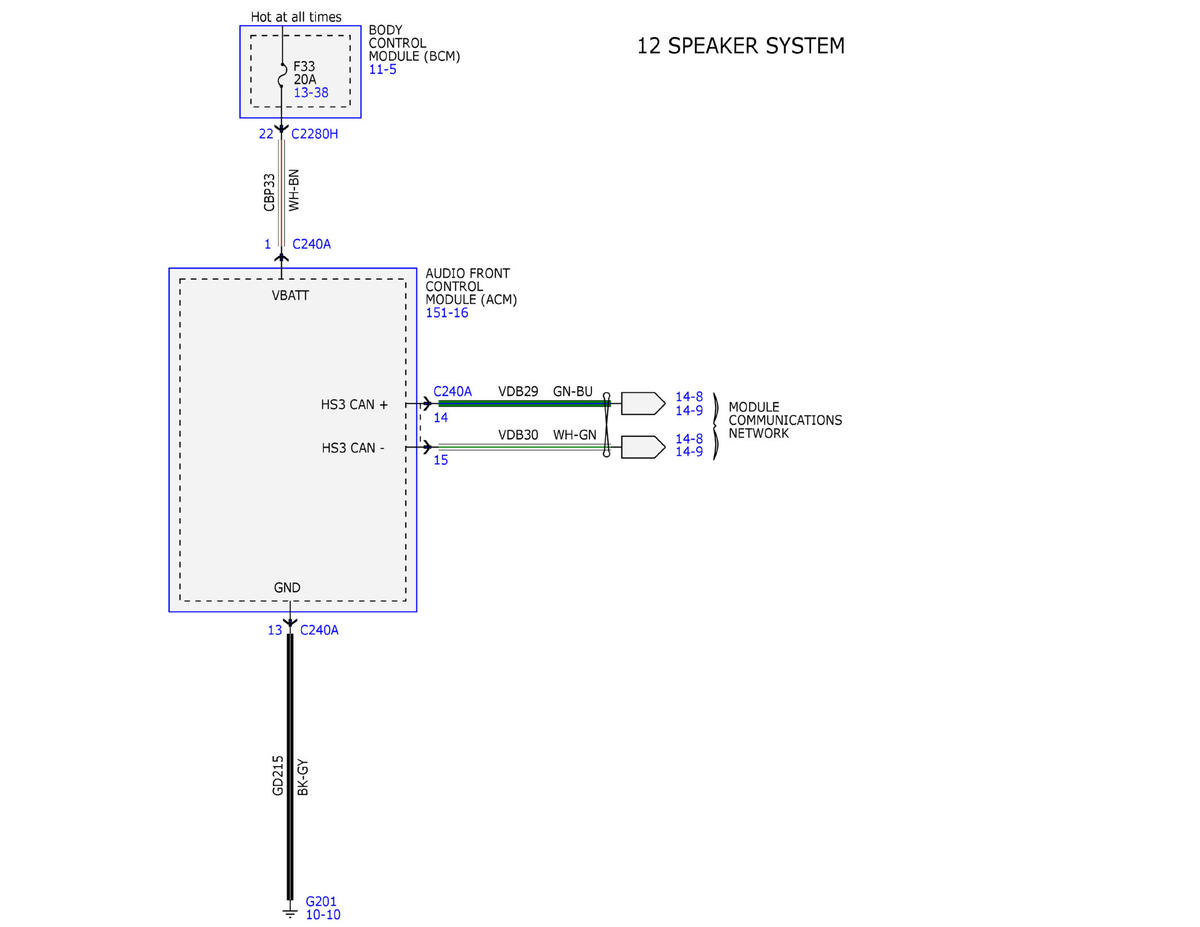

Fig 6: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (6 Of 17)

Courtesy of FORD MOTOR COMPANY

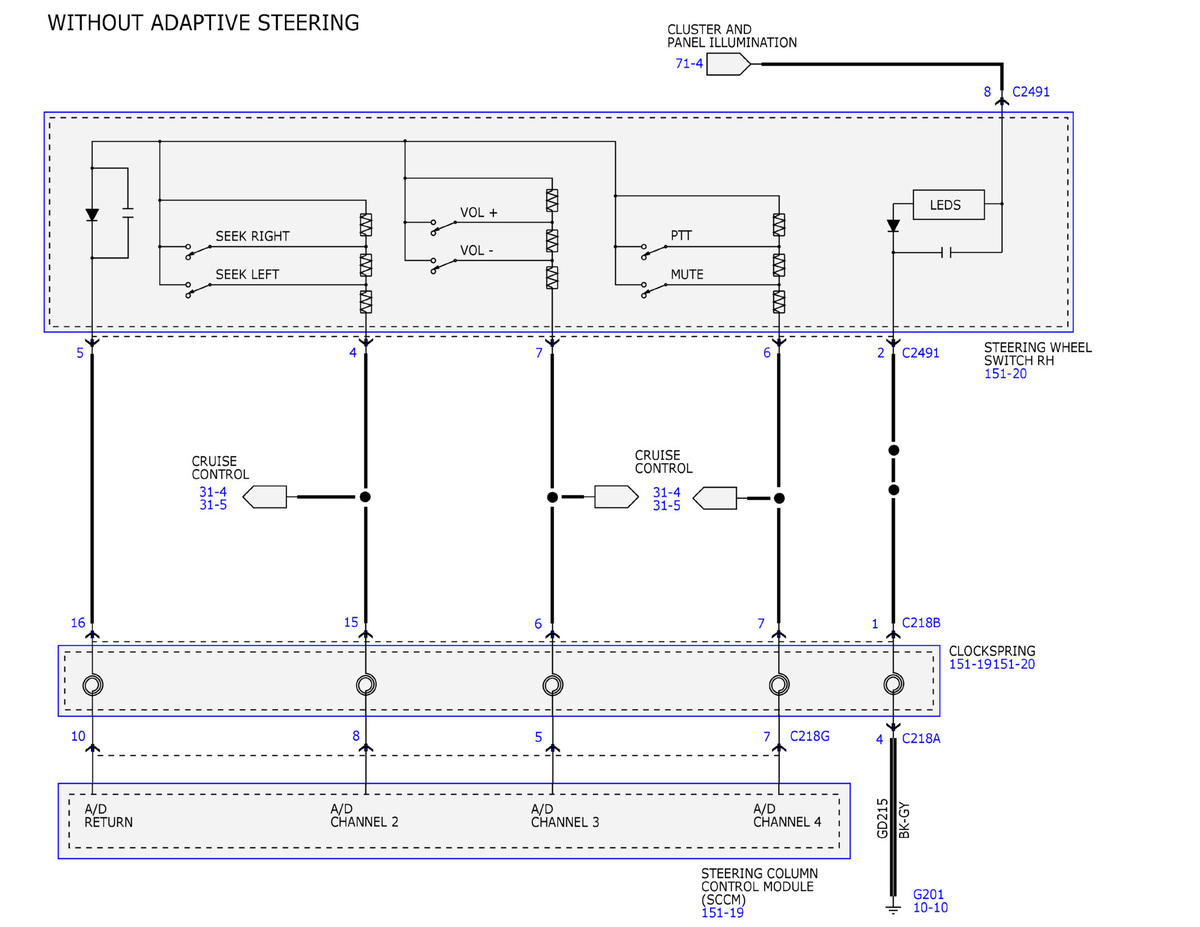

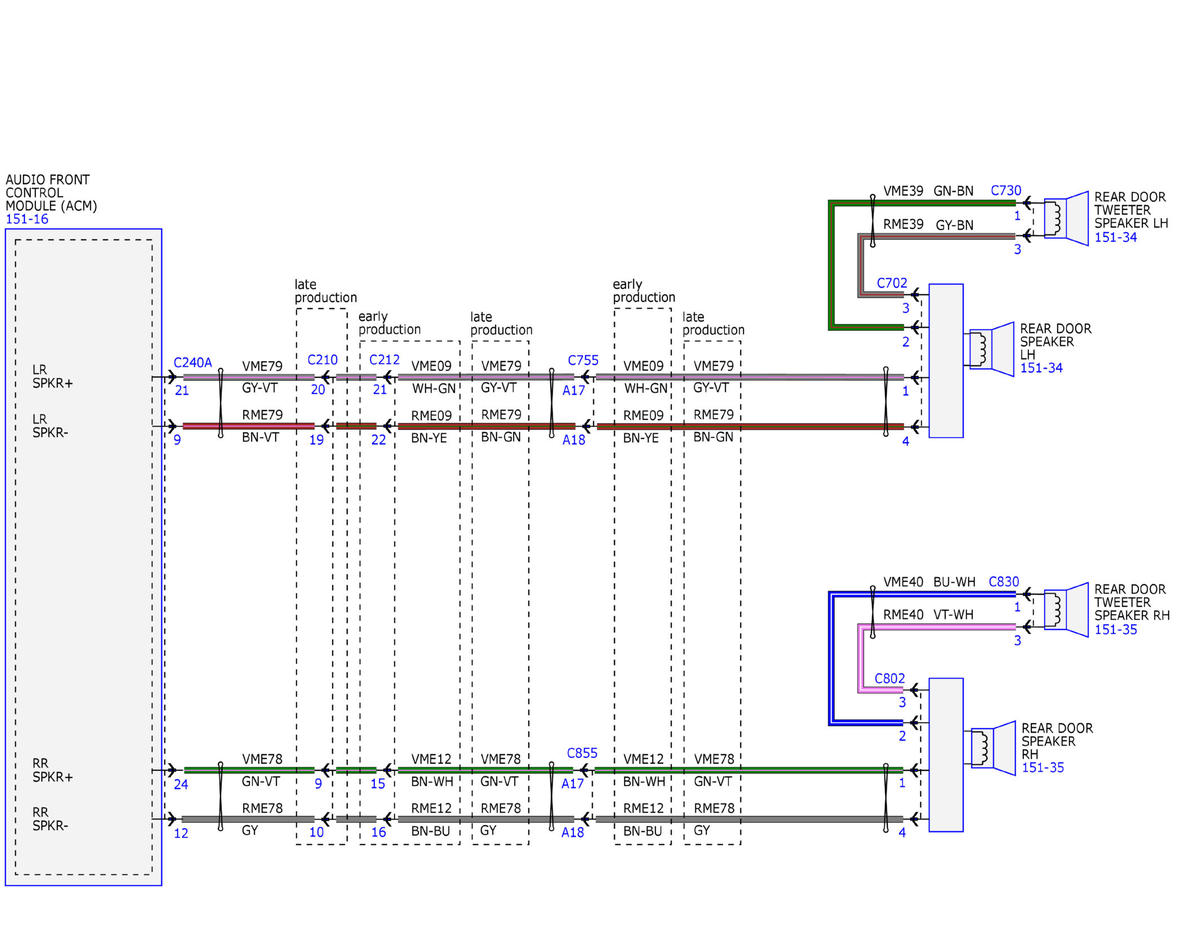

Fig 7: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (7 Of 17)

Courtesy of FORD MOTOR COMPANY

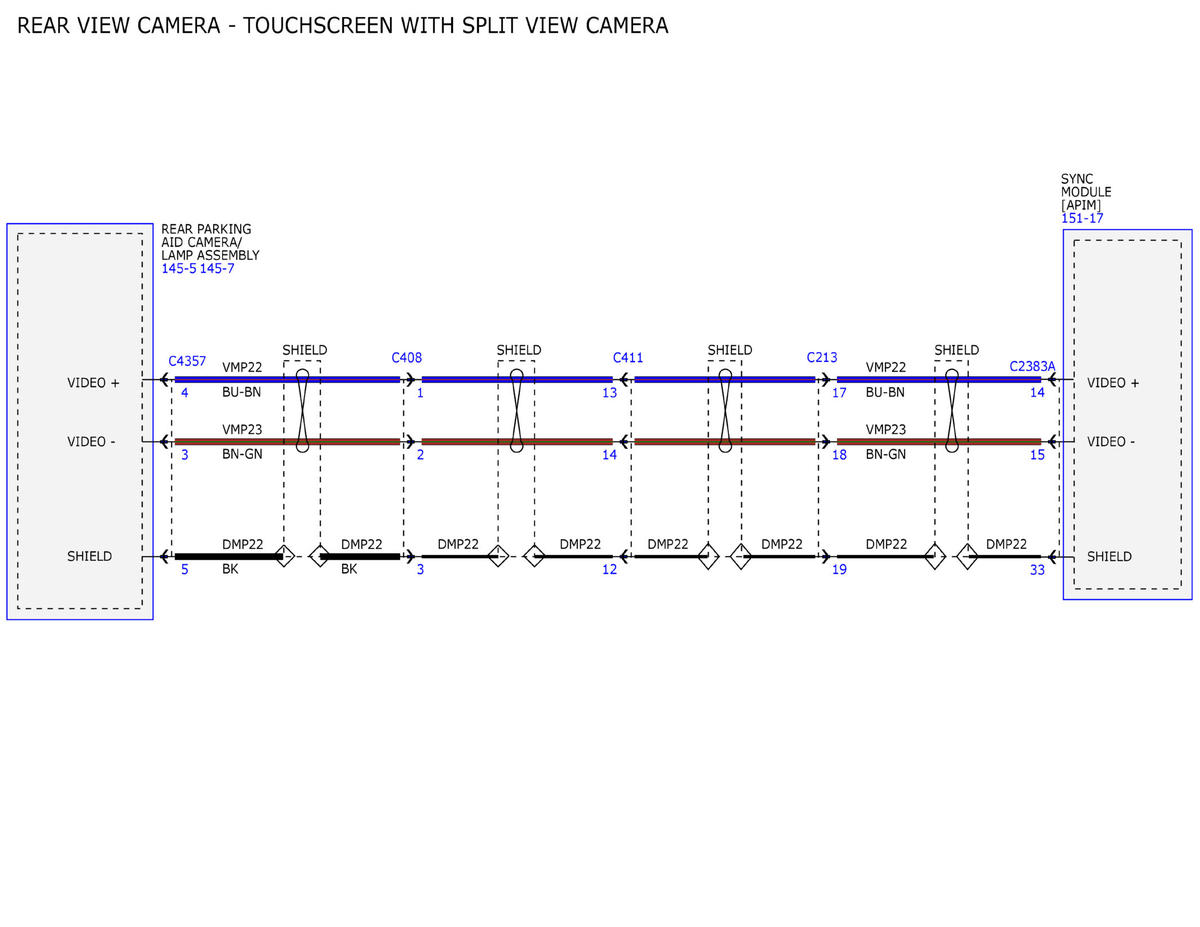

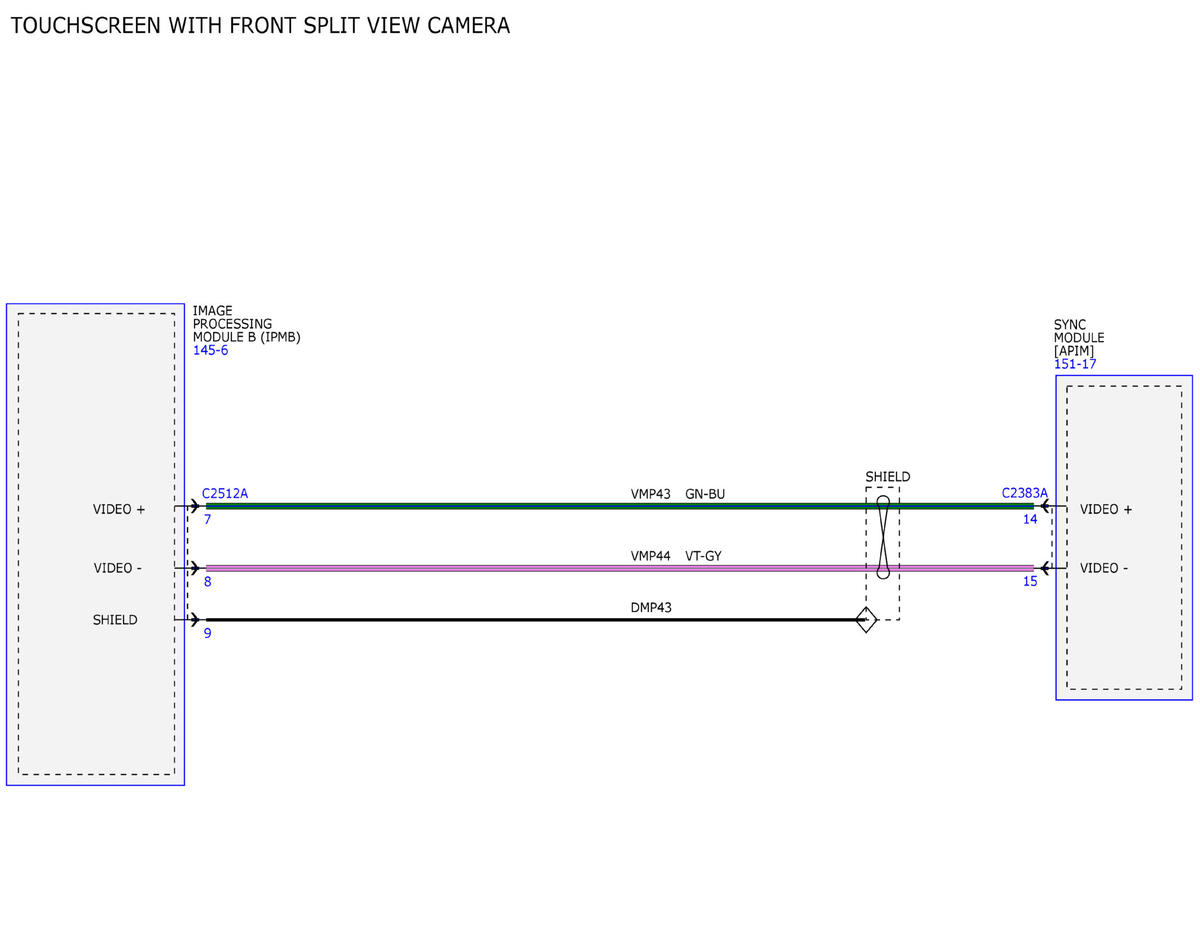

Fig 8: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (8 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (9 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (10 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (11 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (12 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 13: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (13 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 14: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (14 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 15: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (15 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 16: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (16 Of 17)

Courtesy of FORD MOTOR COMPANY

Fig 17: Audio System/Navigation - Bang & Olufsen Audio System Wiring Diagram (17 Of 17)

Courtesy of FORD MOTOR COMPANY
