Audio System/Navigation - 9 Speaker With Sync

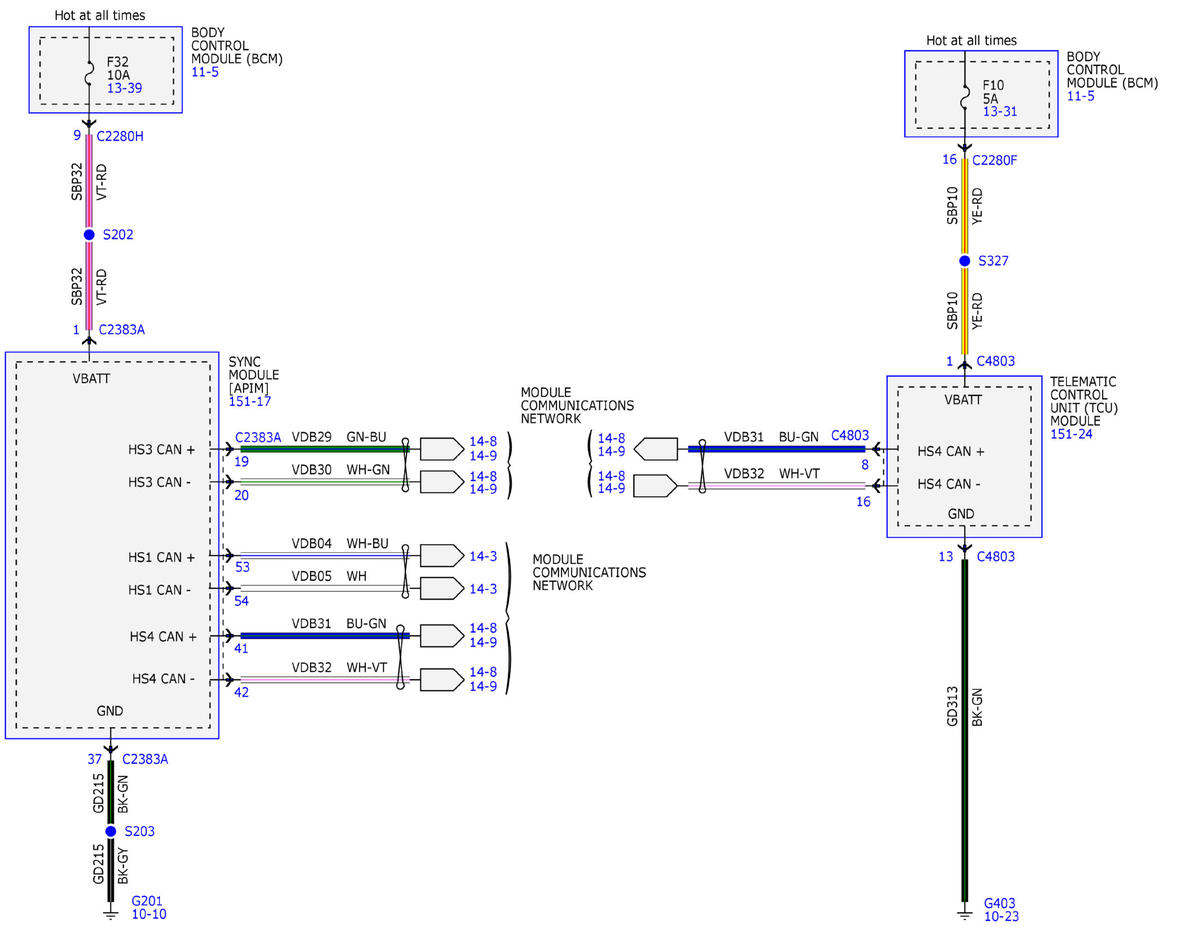

Fig 1: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (1 Of 12)

Courtesy of FORD MOTOR COMPANY

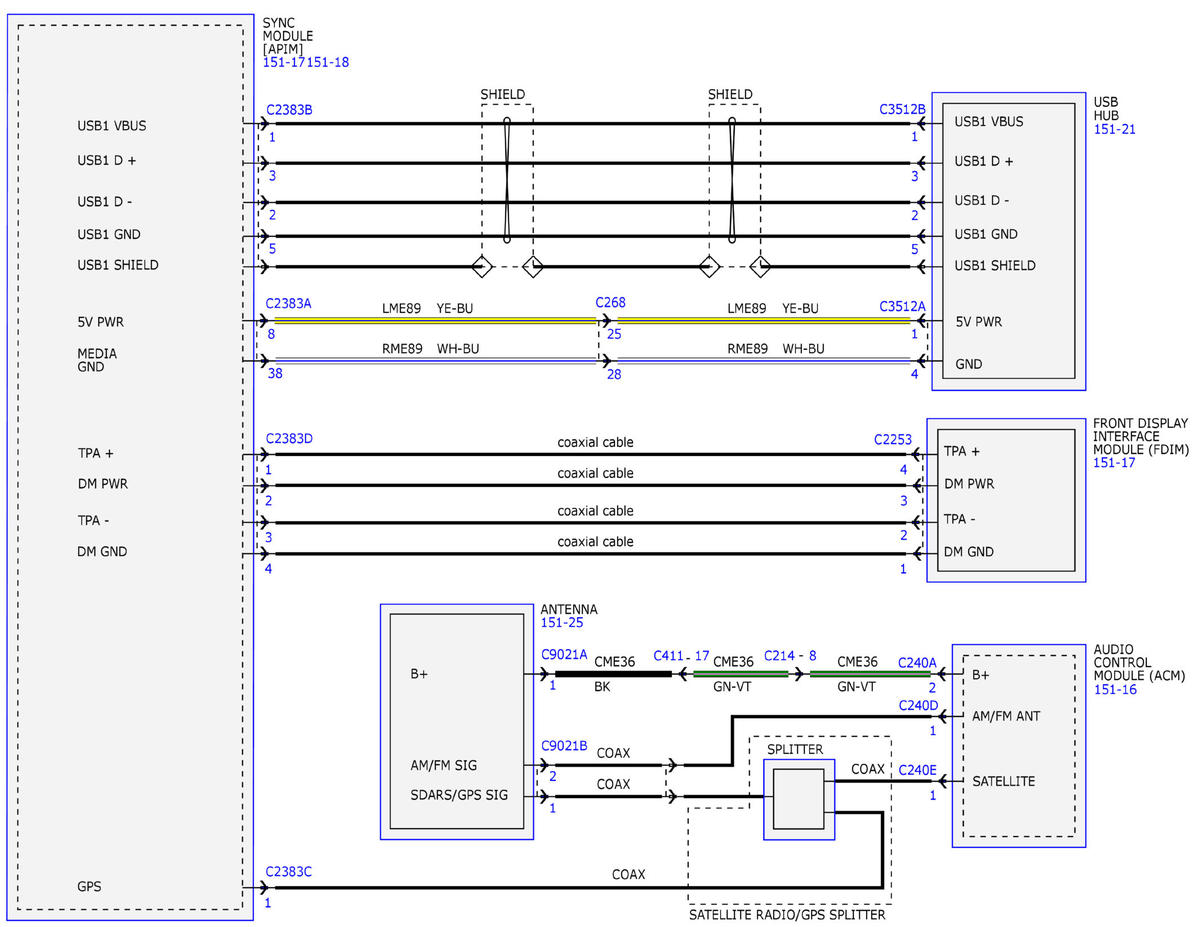

Fig 2: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (2 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 3: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (3 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 4: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (4 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 5: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (5 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 6: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (6 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 7: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (7 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 8: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (8 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (9 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (10 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (11 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - 9 Speaker With SYNC Wiring Diagram (12 Of 12)

Courtesy of FORD MOTOR COMPANY
