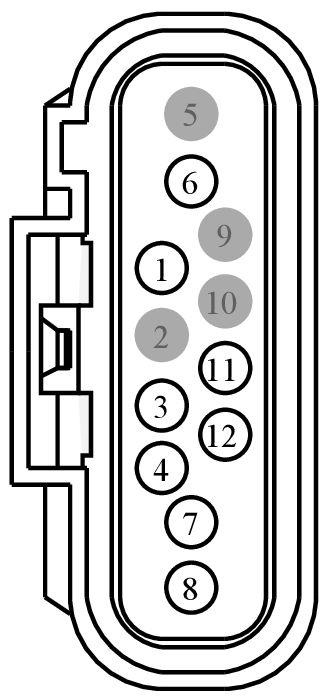

Connector End View (C1655) - WINDSHIELD WIPER MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1655	WINDSHIELD WIPER MOTOR LH	12A581			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64
97BG-14474-BFA	DU2Z-14474-FA	2.8
97BG-14474-BDA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRW15 (BN-WH)	22	CTRL MOD. - FRONT WIPER HIGH	9U5T-14474-LA
2	*	*	Not Used	N/A
3	VRW28 (WH-OG)	20	MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE	9U5T-14474-MA
4	VDN05 (YE-GY)	22	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1	9U5T-14474-LA
5	*	*	Not Used	N/A
6	GD120 (BK-GN)	14	GROUND - FENDER FRONT LEFT	97BG-14474-BFA
7	CRW14 (BU-WH)	20	CTRL MOD. - FRONT WASHER	97BG-14474-BDA
8	CRW03 (VT-WH)	14	RELAY - FRONT WIPER	97BG-14474-BFA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CRW02 (GY-BU)	22	CTRL MOD. - REAR WIPER	9U5T-14474-LA
12	CRW34 (BU-BN)	22	CTRL MOD. - REAR WASHER	9U5T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1316

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AB

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

12

Vehicle Uses:

• Motor - Windshield Wiper
