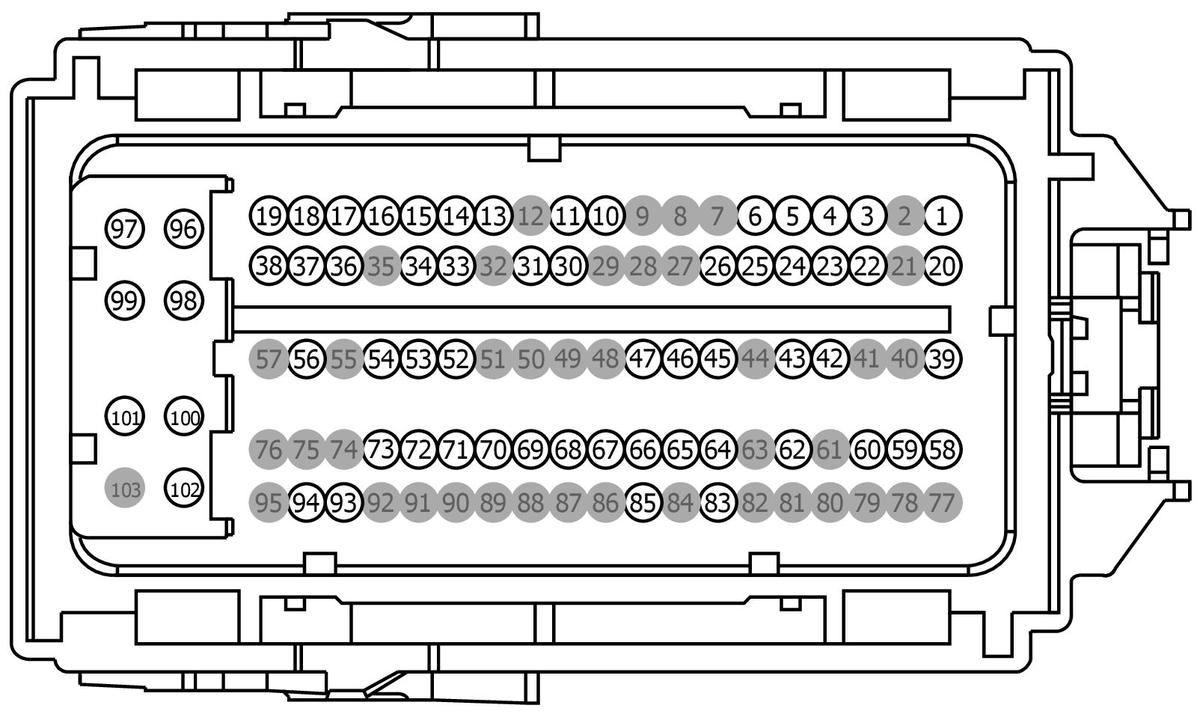

| 1 |
CE233 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
BU5T-14474-AB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
CE420 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) |
BU5T-14474-AB |
| 4 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB |
| 5 |
CET42 (GN-VT) |
20 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
BU5T-14474-AB |
| 6 |
CET43 (GY) |
20 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
BU5T-14474-AB |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
BU5T-14474-AB |
| 11 |
CES09 (VT-OG) |
20 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + |
BU5T-14474-AB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) |
BU5T-14474-AB |
| 14 |
LE230 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) |
N/A |
| 15 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) |
N/A |
| 16 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
BU5T-14474-AB |
| 17 |
VE805 (GY-OG) |
20 |
SENSOR - MANIFOLD TEMPERATURE + |
N/A |
| 18 |
RE136 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) |
BU5T-14474-AB |
| 19 |
RE137 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) |
BU5T-14474-AB |
| 20 |
VE530 (GY-BU) |
22 |
CTRL MOD. - AUXILIARY WATER PUMP |
BU5T-14474-AB |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
CE114 (GN-BU) |
20 |
CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) |
BU5T-14474-AB |
| 23 |
CE522 (BN) |
20 |
DIODE - RELAY FUEL PUMP |
BU5T-14474-AB |
| 24 |
VE922 (VT-GN) |
20 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
N/A |
| 25 |
CE237 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) |
N/A |
| 26 |
RE230 (WH-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
BU5T-14474-AB |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
VH433 (VT-OG) |
20 |
TRANSDUCER - A/C PRESSURE (ACPT) + |
BU5T-14474-AB |
| 31 |
VE750 (GN-BU) |
20 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
VE701 (YE-OG) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
BU5T-14474-AB |
| 34 |
VE702 (BU-WH) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
BU5T-14474-AB |
| 37 |
LE136 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) |
BU5T-14474-AB |
| 38 |
LE137 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) |
BU5T-14474-AB |
| 39 |
CEC01 (WH-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL (FC2) |
BU5T-14474-AB |
| 40 |
* |
* |
Not Used |
N/A |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
VE225 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
N/A |
| 43 |
CEC02 (GN-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL (FC1) |
BU5T-14474-AB |
| 43 |
CEC01 (WH-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL (FC2) |
hot weather cooling package |
N/A |
| 44 |
* |
* |
Not Used |
N/A |
| 45 |
CDC35 (BU-WH) |
20 |
SWITCH - IGNITION # START |
N/A |
| 46 |
VE474 (BU-GN) |
22 |
CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH |
BU5T-14474-AB |
| 47 |
VE181 (WH-GN) |
20 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |
BU5T-14474-AB |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
* |
* |
Not Used |
N/A |
| 50 |
* |
* |
Not Used |
N/A |
| 51 |
* |
* |
Not Used |
N/A |
| 52 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
BU5T-14474-AB |
| 53 |
CR167 (YE-VT) |
22 |
CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) |
N/A |
| 54 |
VE518 (BN-WH) |
20 |
MONITOR - FUEL PUMP (FPM) |
BU5T-14474-AB |
| 55 |
* |
* |
Not Used |
N/A |
| 56 |
VE740 (VT-GY) |
20 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
BU5T-14474-AB |
| 57 |
* |
* |
Not Used |
N/A |
| 58 |
VE225 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
BU5T-14474-AB |
| 59 |
VE462 (WH-BN) |
22 |
CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE |
BU5T-14474-AB |
| 60 |
CET99 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID TRANSMISSION HYDRAULIC INDICATOR (THASC) |
BU5T-14474-AB |
| 61 |
* |
* |
Not Used |
N/A |
| 62 |
CH302 (WH-BN) |
22 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) |
BU5T-14474-AB |
| 63 |
* |
* |
Not Used |
N/A |
| 64 |
CBB26 (BU-WH) |
20 |
FUSE - 26 OR CIRCUIT BREAKER |
N/A |
| 65 |
VE475 (WH-VT) |
22 |
CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW |
BU5T-14474-AB |
| 66 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
BU5T-14474-AB |
| 67 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
N/A |
| 68 |
CE170 (WH-BU) |
22 |
CTRL MOD. - POWERTRAIN # ENGINE START SIGNAL |
BU5T-14474-AB |
| 69 |
CDC54 (WH-GN) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) |
BU5T-14474-AB |
| 70 |
CE171 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # ACTIVE TRANSMISSION WARMUP 1 (ATWU1) |
BU5T-14474-AB |
| 71 |
CDC12 (YE) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
BU5T-14474-AB |
| 72 |
VE763 (YE) |
20 |
SENSOR - CRANKCASE VENTILATION MONITOR (CVM) |
BU5T-14474-AB |
| 73 |
VE727 (BU-BN) |
22 |
SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) |
BU5T-14474-AB |
| 74 |
* |
* |
Not Used |
N/A |
| 75 |
* |
* |
Not Used |
N/A |
| 76 |
* |
* |
Not Used |
N/A |
| 77 |
* |
* |
Not Used |
N/A |
| 78 |
* |
* |
Not Used |
N/A |
| 79 |
* |
* |
Not Used |
N/A |
| 80 |
* |
* |
Not Used |
N/A |
| 81 |
* |
* |
Not Used |
N/A |
| 82 |
* |
* |
Not Used |
N/A |
| 83 |
VDC61 (VT-GN) |
22 |
SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
N/A |
| 84 |
* |
* |
Not Used |
N/A |
| 85 |
CCA72 (OG) |
20 |
CTRL MOD. - VACUUM ON DEMAND AUTOMATED SHUT-OFF VALVE (ASOV) |
N/A |
| 86 |
* |
* |
Not Used |
N/A |
| 87 |
* |
* |
Not Used |
N/A |
| 88 |
* |
* |
Not Used |
N/A |
| 89 |
* |
* |
Not Used |
N/A |
| 90 |
* |
* |
Not Used |
N/A |
| 91 |
* |
* |
Not Used |
N/A |
| 92 |
* |
* |
Not Used |
N/A |
| 93 |
VE740 (VT-GY) |
20 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
N/A |
| 94 |
LE152 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # EXHAUST PRESSURE SENSOR + |
BU5T-14474-AB |
| 95 |
* |
* |
Not Used |
N/A |
| 96 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
7U5T-14474-TA |
| 97 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
7U5T-14474-TA |
| 98 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
7U5T-14474-TA |
| 99 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
7U5T-14474-TA |
| 100 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER |
N/A |
| 101 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER |
7U5T-14474-TA |
| 102 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER |
N/A |
| 103 |
* |
* |
Not Used |
N/A |
