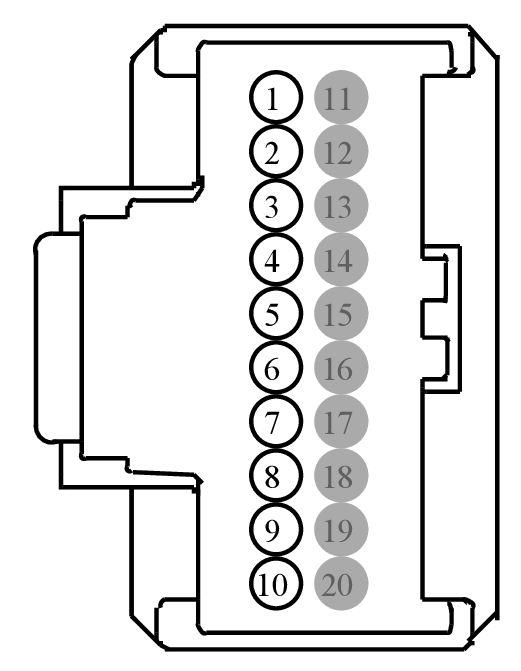

Connector End View (C341E) - DRIVER FRONT SEAT MODULE (DSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C341E	DRIVER FRONT SEAT MODULE (DSM)	14D231			part #N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.	N/A
2	RHS10 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.	N/A
3	VHS36 (YE-BU)	20	SENSOR - BACK TEMP. PASSENGER	N/A
4	VHS27 (WH-OG)	20	SENSOR - CUSHION TEMP. PASSENGER OR RIGHT	N/A
5	CHS14 (GN)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH	N/A
6	VHS26 (VT)	20	SENSOR - CUSHION TEMP. DRIVER OR LEFT	N/A
7	VHS23 (BN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION BLOWER SPEED CONTROL	N/A
8	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL	N/A
9	VHS18 (BN-GN)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL	N/A
10	CHS09 (GY)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW	N/A
11	- ()	*	Not Used	N/A
12	- ()	*	Not Used	N/A
13	- ()	*	Not Used	N/A
14	- ()	*	Not Used	N/A
15	- ()	*	Not Used	N/A
16	- ()	*	Not Used	N/A
17	- ()	*	Not Used	N/A
18	- ()	*	Not Used	N/A
19	- ()	*	Not Used	N/A
20	- ()	*	Not Used	N/A
