Parking, Rear And License Lamps

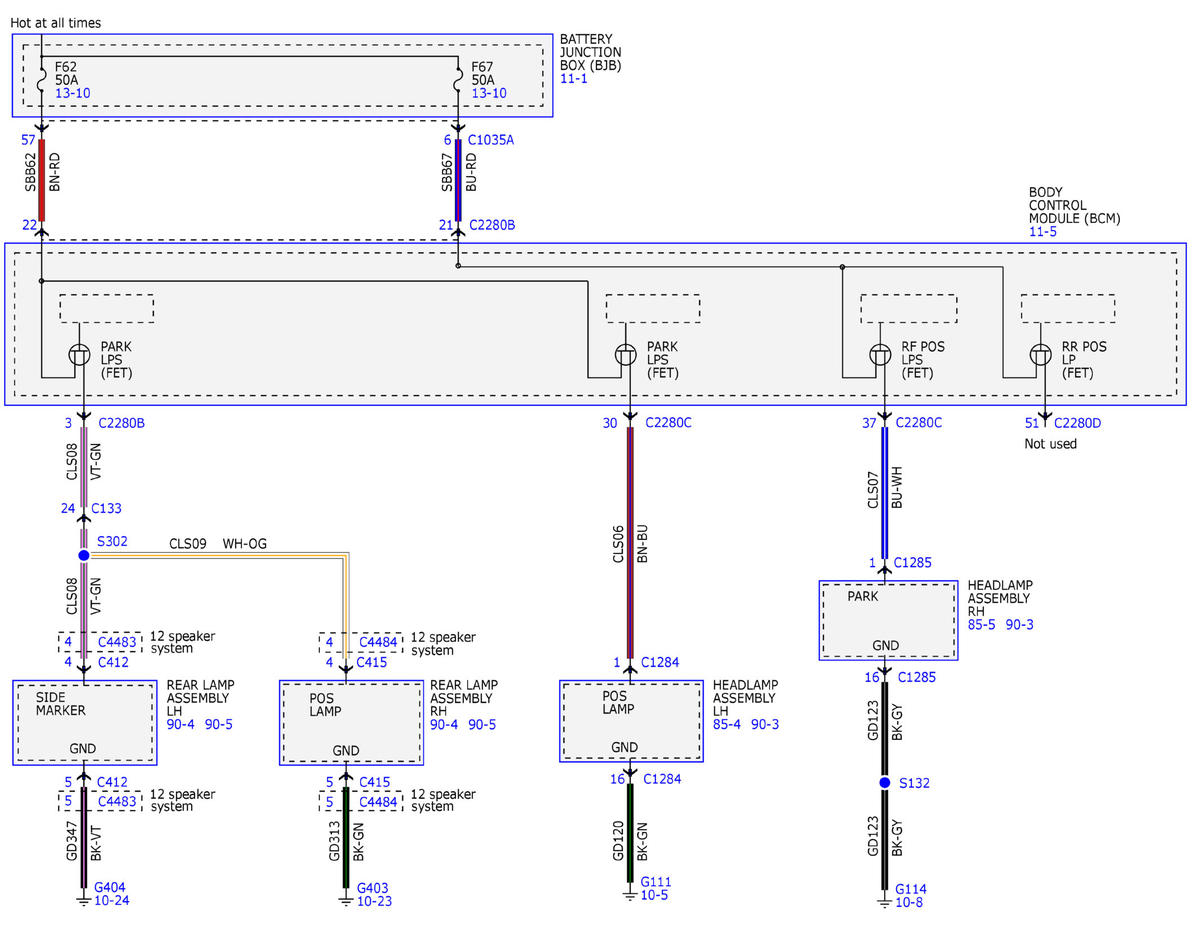

Fig 1: Parking, Rear And License Lamps Wiring Diagram (1 Of 4)
GFDWR108805Courtesy of FORD MOTOR COMPANY

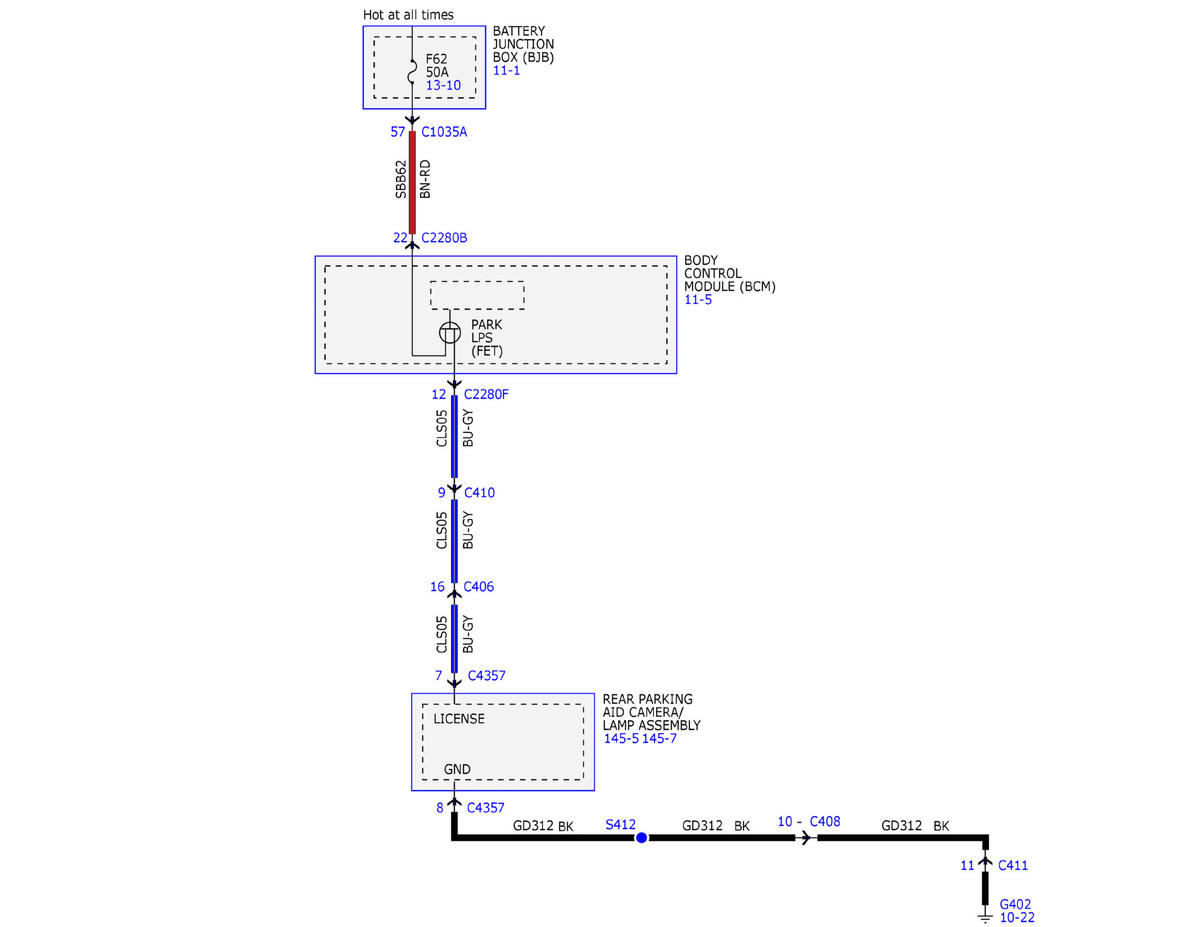

Fig 2: Parking, Rear And License Lamps Wiring Diagram (2 Of 4)
GFDWR108806Courtesy of FORD MOTOR COMPANY
Fig 3: Parking, Rear And License Lamps Wiring Diagram (3 Of 4)
GFDWR108807Courtesy of FORD MOTOR COMPANY

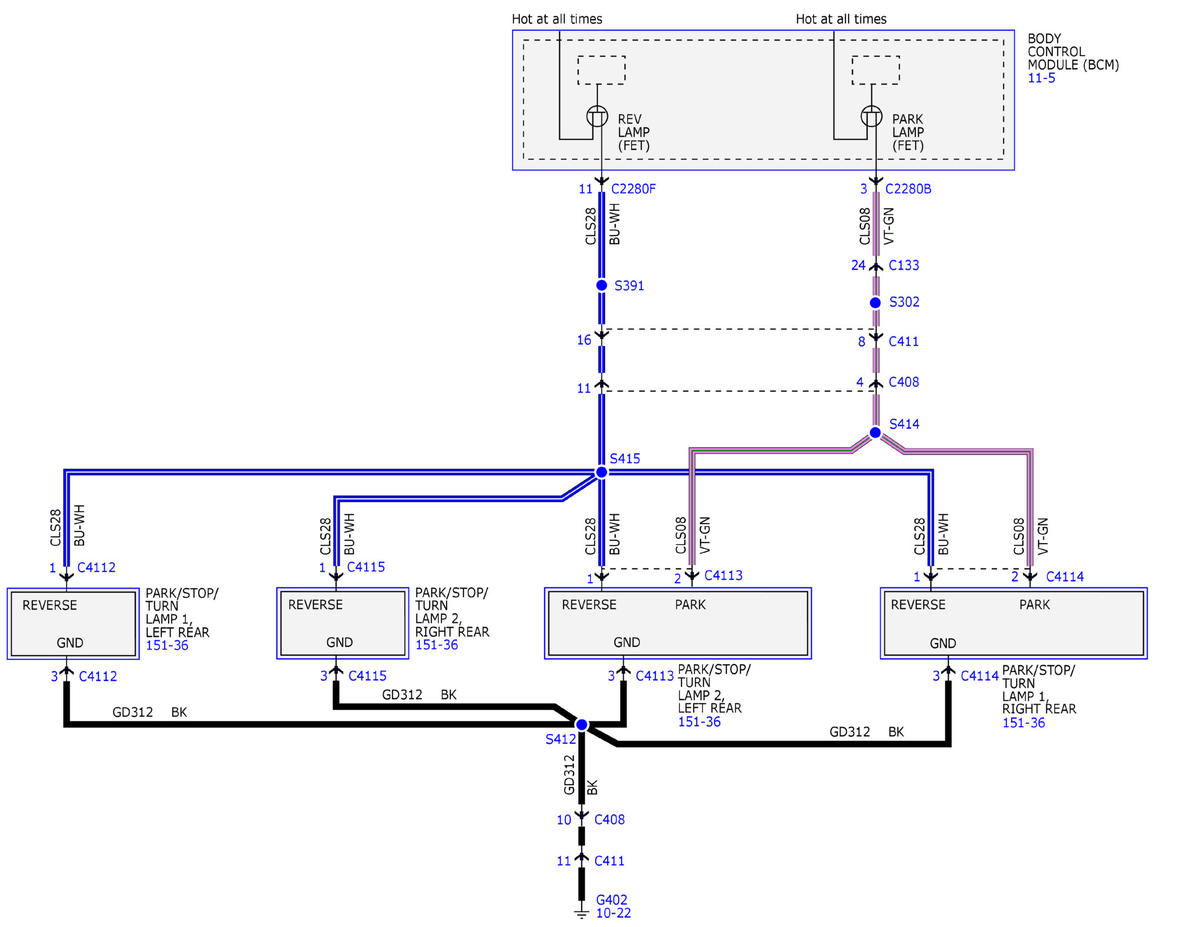

Fig 4: Parking, Rear And License Lamps Wiring Diagram (4 Of 4)
GFDWR108808Courtesy of FORD MOTOR COMPANY
