Connector End View (C4478) - PARKING BRAKE ACTUATOR MOTOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4478	PARKING BRAKE ACTUATOR MOTOR RH	2B254			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-JA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCB19 (GN-BN)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-)	9U5T-14474-JA
2	CCB18 (YE-GY)	12	CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+)	9U5T-14474-JA

Available Pigtail Kits

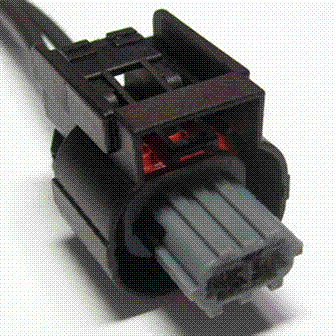

Pigtail Kit Part Number WPT-1506

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-DB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock
• Fuel Injector
• Injector - UREA
• Sensor - Fuel Rail Pressure
• Solenoid - Engine Variable Timing
• Solenoid - Fuel Volume Regulator Control
• Valve - Fuel Metering
• Valve - Heated PCV
• Valve - Vapor Management

Pigtail Kit Part Number WPT-1065

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-DA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Injector - UREA
• Sensor - Fuel Rail Pressure
• Valve - Fuel Metering
