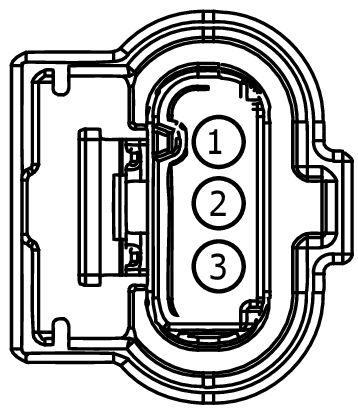

Connector End View (C3731) - POWER TRANSFER UNIT (PTU) AUXILIARY PUMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3731	POWER TRANSFER UNIT (PTU) AUXILIARY PUMP	14G574			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	N/A
2	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	N/A
3	VE530 (GY-OG)	18	CTRL MOD. - AUXILIARY WATER PUMP	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1492

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-BA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:
