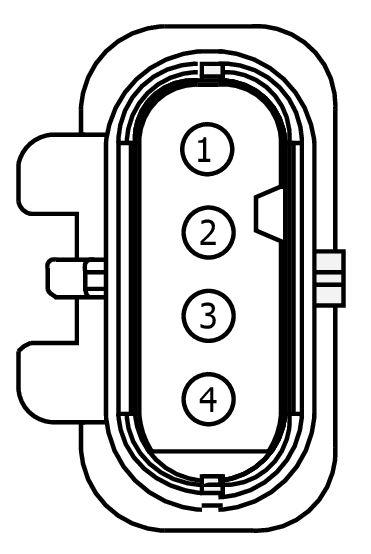

Connector End View (C1574) - HEATED OXYGEN SENSOR (HO2S) #22

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1574	HEATED OXYGEN SENSOR (HO2S) #22	14A280			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE233 (WH-OG)	20	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	N/A
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	N/A
3	RE230 (VT-BN)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER	N/A
4	VE731 (YE-GN)	20	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1598

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-PA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Catalyst Monitor
• Sensor - O2 (HEGO/ EGO)
