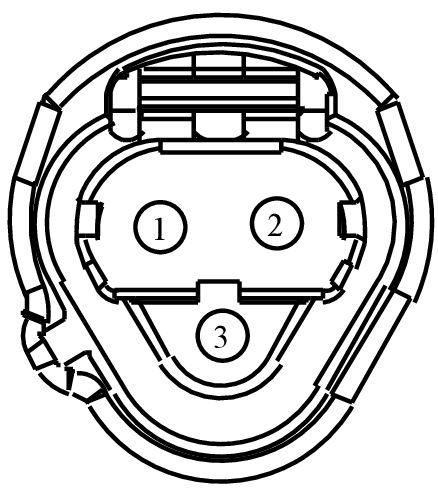

Connector End View (C1360) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1360	FUEL RAIL PRESSURE (FRP) SENSOR	BK	14B485	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-PA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	BU5T-14474-PA
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	BU5T-14474-PA
3	VE727 (BU-BN)	18	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	BU5T-14474-PA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1281

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-PA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Fuel Rail Pressure
