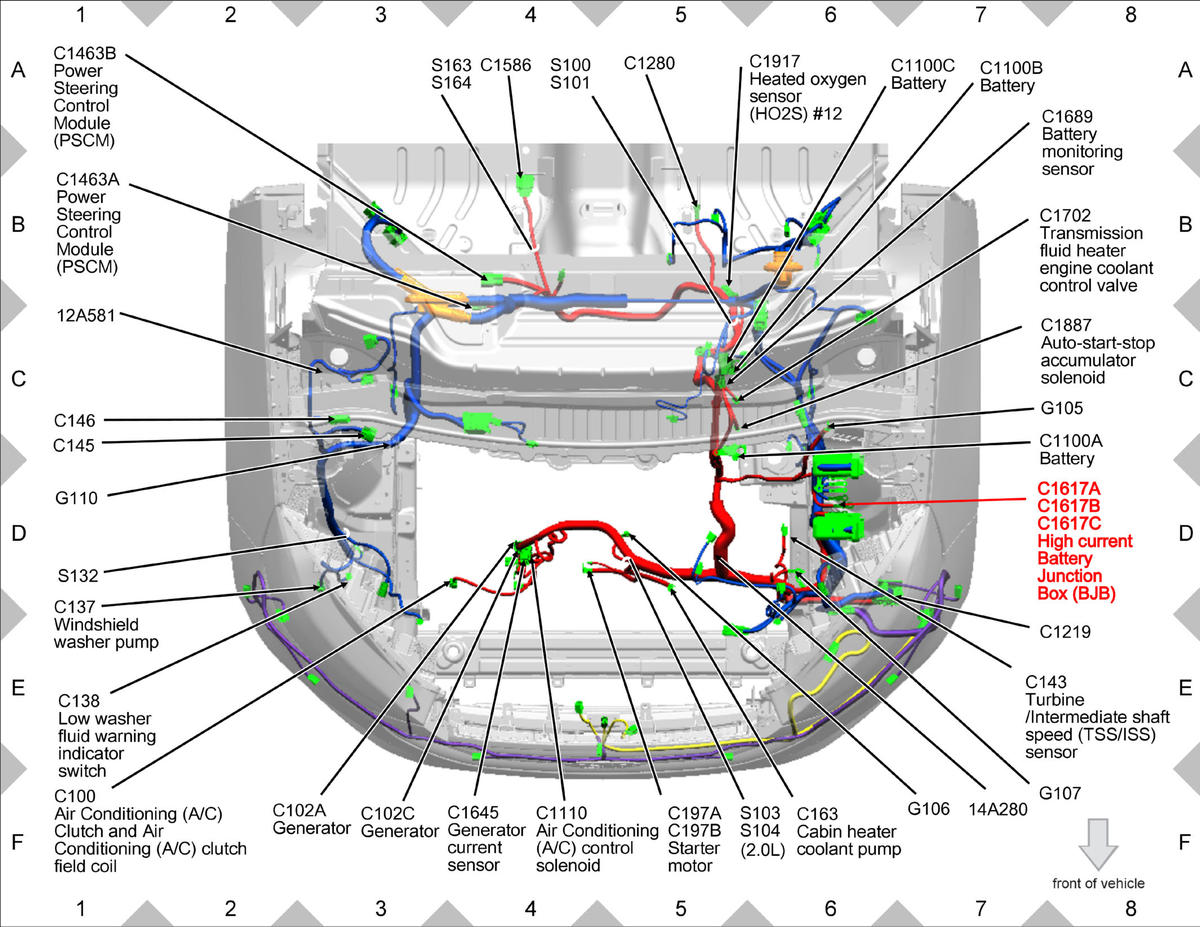

High Current Battery Junction Box (BJB) Engine Compartment LH Side (1 of 2)

GFDWR107457

Courtesy of FORD MOTOR COMPANY
